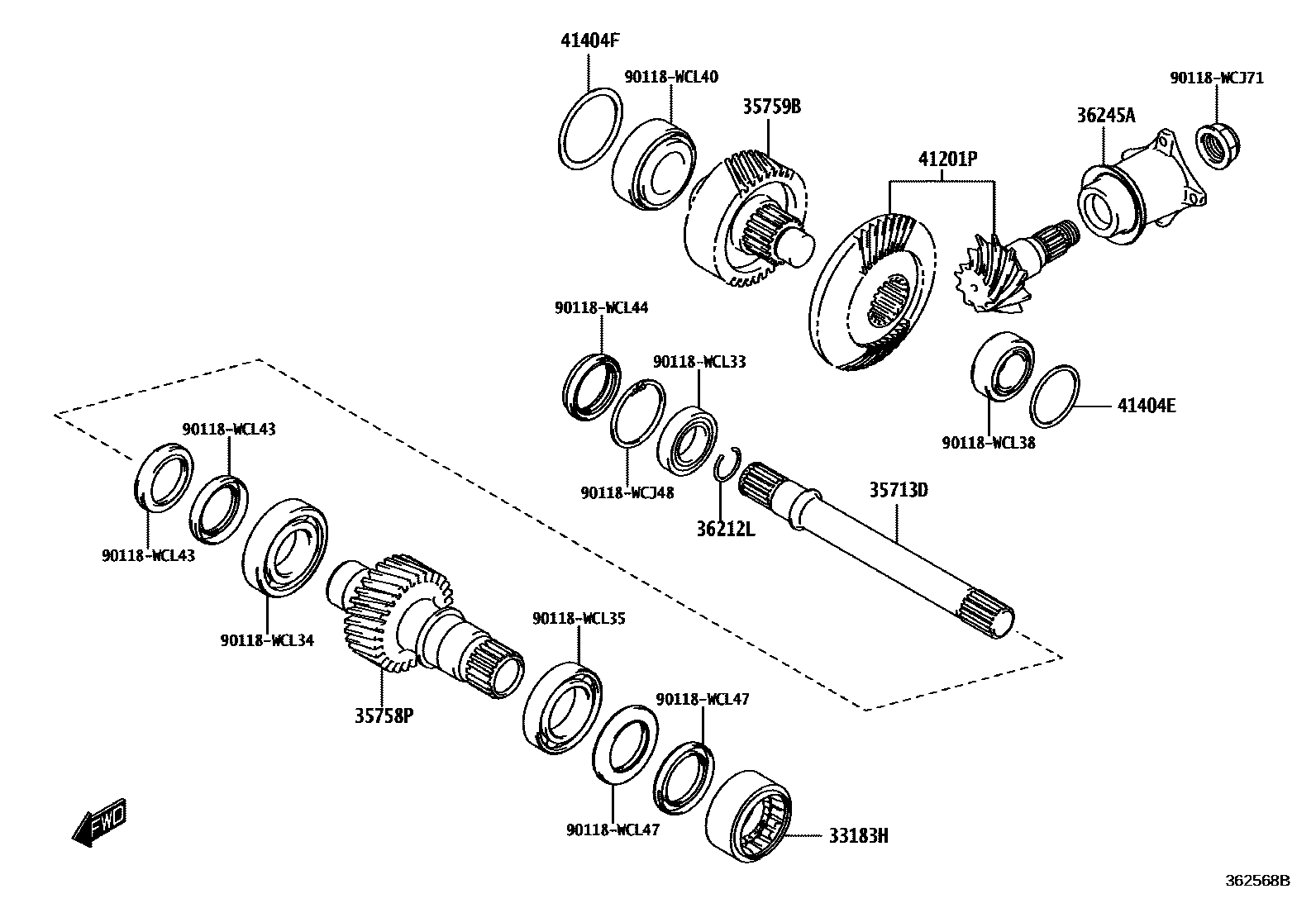

TRANSFER GEAR
33183HDAMPER, TRANSFER GEAR
POS.21; POS.33; POS.8
35713DSHAFT, INTERMEDIATE
POS.21; POS.33; POS.8
35758PGEAR, REDUCTION DRIVE
POS.21; POS.33; POS.8
35759BGEAR, REDUCTION DRIVEN
POS.21; POS.33; POS.8
36212LRING, SHAFT SNAP
POS.21; POS.33; POS.8
36245AFLANGE, TRANSFER OUTPUT SHAFT
POS.21; POS.33; POS.8
41201PGEAR KIT, TRANSFER
POS.21; POS.33; POS.8
41404ESHIM, TRANSFER INPUT, NO.1
POS.21,T=1.00; POS.33,T=1.00; POS.8,T=1.00
POS.21,T=1.05; POS.33,T=1.05; POS.8,T=1.05
POS.21,T=1.10; POS.33,T=1.10; POS.8,T=1.10
POS.21,T=1.15; POS.33,T=1.15; POS.8,T=1.15
POS.21,T=1.20; POS.33,T=1.20; POS.8,T=1.20
POS.21,T=1.25; POS.33,T=1.25; POS.8,T=1.25
POS.21,T=1.30; POS.33,T=1.30; POS.8,T=1.30
POS.21,T=1.35; POS.33,T=1.35; POS.8,T=1.35
POS.21,T=1.40; POS.33,T=1.40; POS.8,T=1.40
POS.21,T=1.45; POS.33,T=1.45; POS.8,T=1.45
41404FSHIM, TRANSFER INPUT, NO.2
POS.21,T=0.60; POS.33,T=0.60; POS.8,T=0.60
POS.21,T=0.65; POS.33,T=0.65; POS.8,T=0.65
POS.21,T=0.70; POS.33,T=0.70; POS.8,T=0.70
POS.21,T=0.75; POS.33,T=0.75; POS.8,T=0.75
POS.21,T=0.80; POS.33,T=0.80; POS.8,T=0.80
POS.21,T=0.85; POS.33,T=0.85; POS.8,T=0.85
POS.21,T=0.90; POS.33,T=0.90; POS.8,T=0.90
POS.21,T=0.95; POS.33,T=0.95; POS.8,T=0.95
POS.21,T=1.00; POS.33,T=1.00; POS.8,T=1.00
POS.21,T=1.05; POS.33,T=1.05; POS.8,T=1.05
90118WCJ48
main90118-WCJ48
90118WCJ71
main90118-WCJ71
90118WCL33
main90118-WCL33
90118WCL34
main90118-WCL34
90118WCL35
main90118-WCL35
90118WCL38
main90118-WCL38
90118WCL40
main90118-WCL40
90118WCL43
main90118-WCL43
90118WCL44
main90118-WCL44
90118WCL47
main90118-WCL47
19 parts on this diagram · 2 diagrams in section
