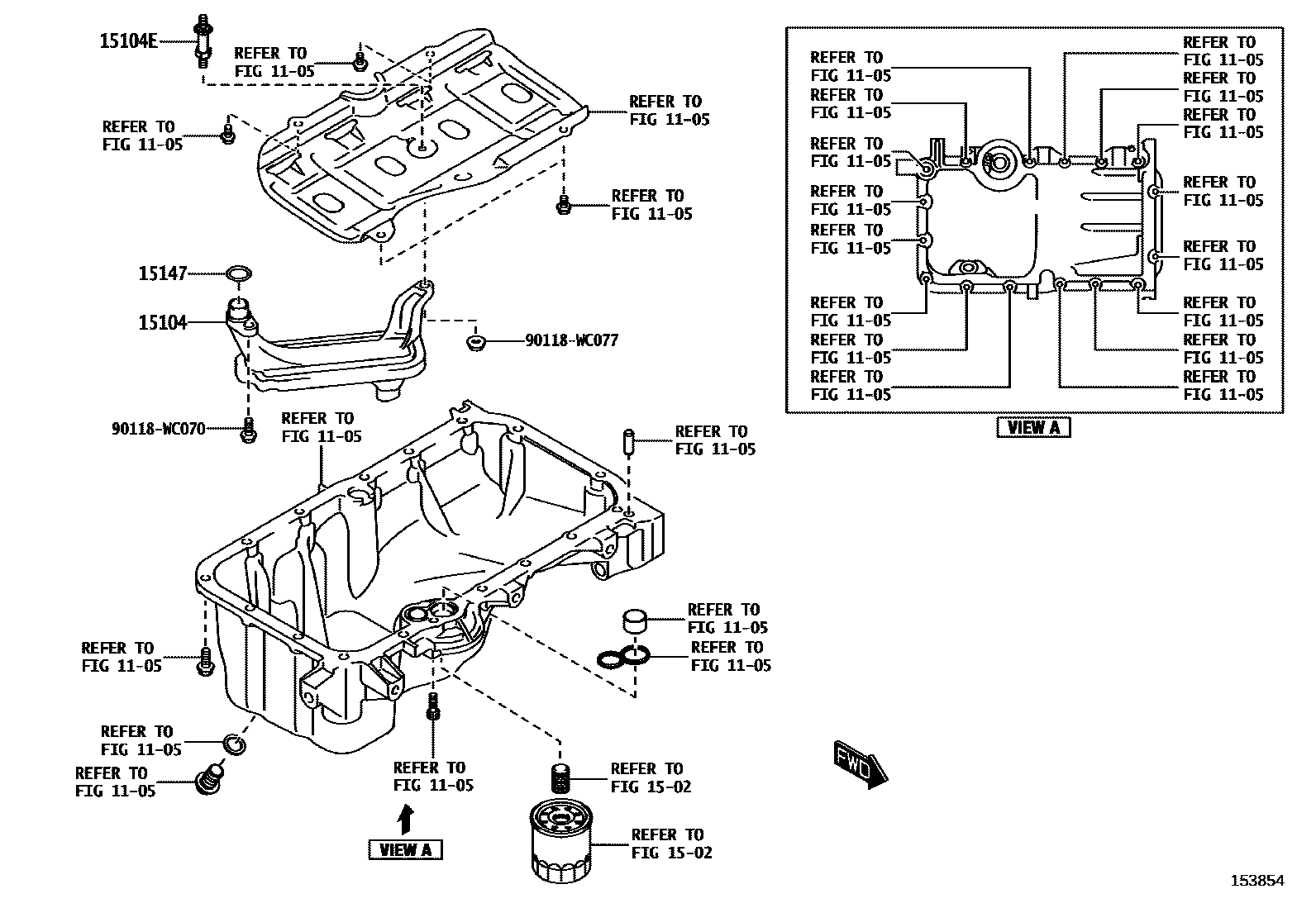

ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

1502OIL FILTER

→ Go to FIG 15-02

15104STRAINER SUB-ASSY, OIL

main15104-F3010i202208

POS.11; POS.12; POS.13; POS.24; POS.25; POS.26; POS.27; POS.28

main15104-WC002i202208

POS.1; POS.10; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.23; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9

15104EBOLT, STUD(FOR OIL STRAINER)

main90118-WC300i202208

POS.1; POS.10; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.23; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9

15147GASKET, OIL STRAINER

main15147-25010i202208

POS.11; POS.12; POS.13; POS.24; POS.25; POS.26; POS.27; POS.28

main90118-WC337i202208

POS.1; POS.10; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.23; POS.29; POS.3; POS.30; POS.31; POS.32; POS.33; POS.34; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9

90118WC070

main90118-WC070

90118WC077

main90118-WC077

7 parts on this diagram · 3 diagrams in section
