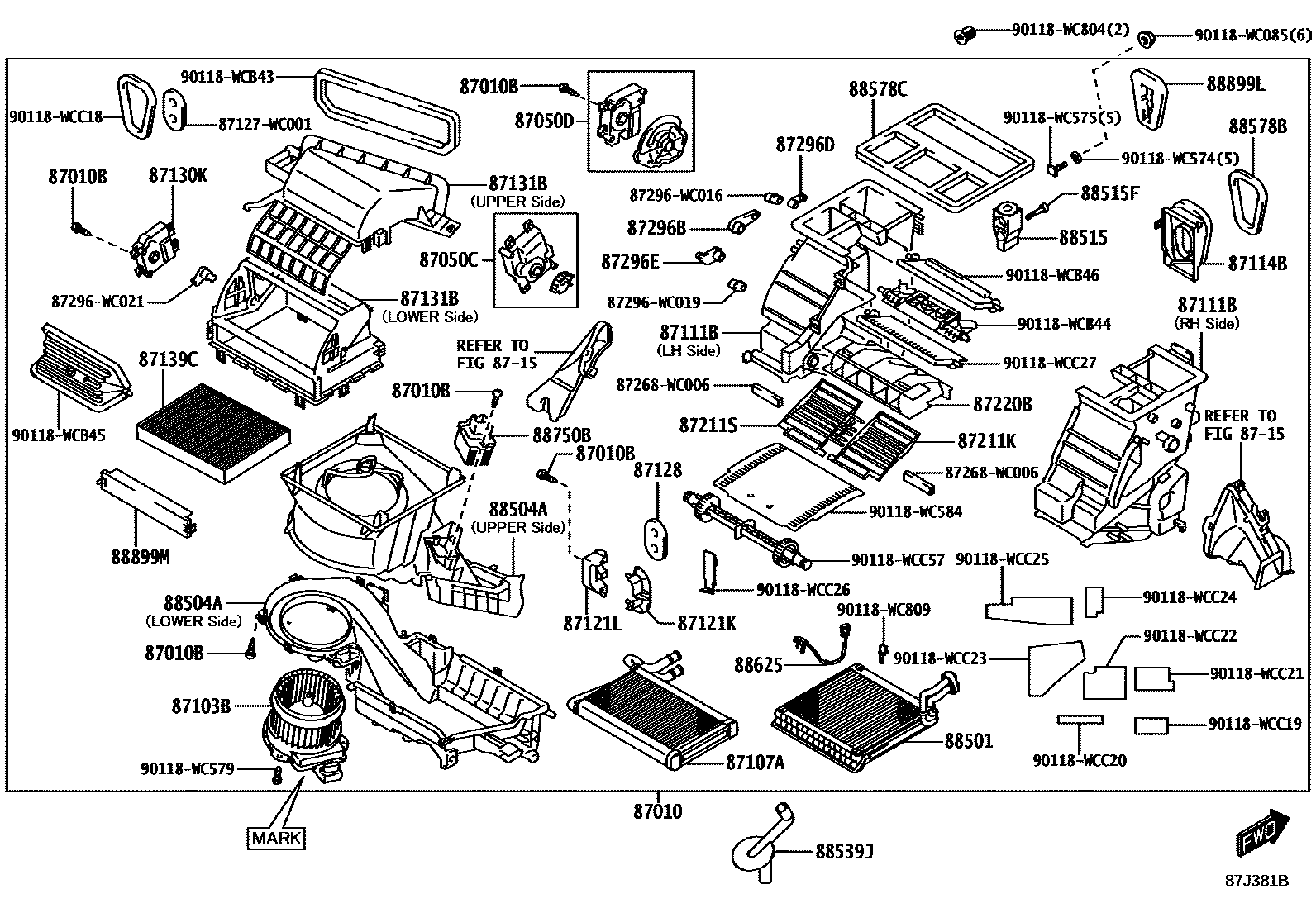

HEATING & AIR CONDITIONING - COOLER UNIT
87010BSCREW(FOR AIR CONDITIONER UNIT)
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87111BCASE, HEATER
87114BCOVER, HEATER
87121KBRACKET, HEATER
87121LBRACKET, HEATER
87128GROMMET, HEATER
main87128-WC001
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87131BCASE, HEATER BLOWER
87139CFILTER, CLEAN AIR
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
87211KDUCT, AIR
87211SDUCT, AIR
87220BDUCT ASSY, AIR
87296BLEVER, HEATER AIR DAMPER CONTROL
87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2
87296ELEVER, HEATER AIR DAMPER CONTROL, NO.3
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
main88501-WC003
88504ACASE SUB-ASSY, BLOWER
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88625THERMISTOR, COOLER, NO.1
main88625-WC003
88750BTRANSISTOR ASSY, BLOWER RESISTOR
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
87127WC001PACKING, HEATER AIR DAMPER
main87127-WC001
87268WC006COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-WC006
87296WC016WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC016
87296WC019WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC019
87296WC021WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC021
90118WC085
main90118-WC085
90118WC574
main90118-WC574
90118WC575
main90118-WC575
90118WC579
main90118-WC579
90118WC584
main90118-WC584
90118WC804
main90118-WC804
90118WC809
main90118-WC809
90118WCB43
main90118-WCB43
90118WCB44
main90118-WCB44
90118WCB45
main90118-WCB45
90118WCB46
main90118-WCB46
90118WCC18
main90118-WCC18
90118WCC19
main90118-WCC19
90118WCC20
main90118-WCC20
90118WCC21
main90118-WCC21
90118WCC22
main90118-WCC22
90118WCC23
main90118-WCC23
90118WCC24
main90118-WCC24
90118WCC25
main90118-WCC25
90118WCC26
main90118-WCC26
90118WCC27
main90118-WCC27
90118WCC57
main90118-WCC57
