Toyota URBAN CRUISER — WINDSHIELD WASHER

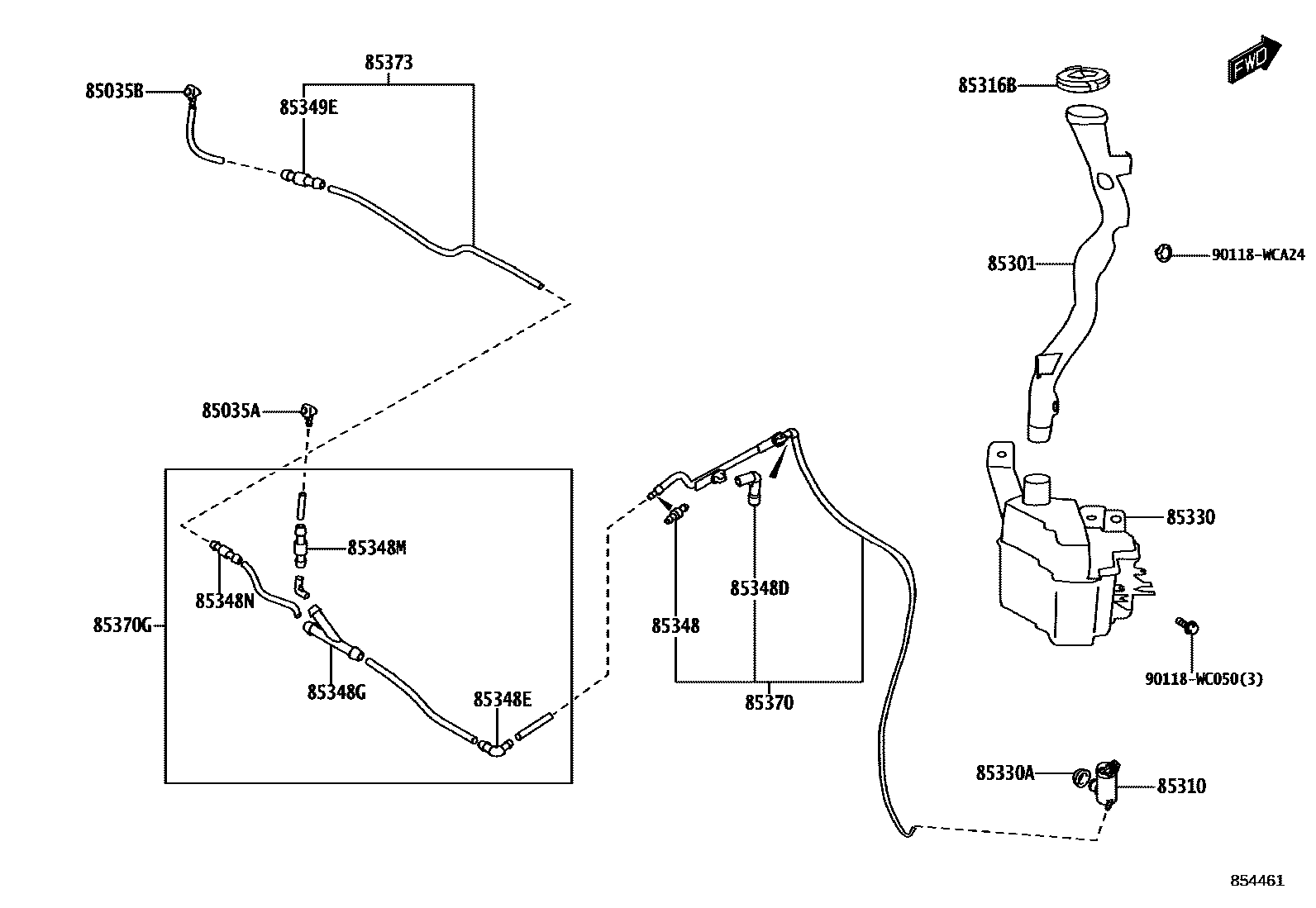

Parts diagram

85035ANOZZLE, FR WASHER, RH

85035BNOZZLE, FRONT WASHER, LH

85301INLET SUB-ASSY, WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85316BCAP, WASHER, INLET

85330JAR ASSY, WINDSHIELD WASHER

85330ABUSH, WINDSHIELD WASHER JAR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

85349EJOINT, WINDSHIELD WASHER HOSE, NO.5

85370HOSE ASSY, WINDSHIELD WASHER

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

90118WC050

90118WCA24

19 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota URBAN CRUISER

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota URBAN CRUISER. Key components include: NOZZLE, FR WASHER, RH, NOZZLE, FRONT WASHER, LH, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
