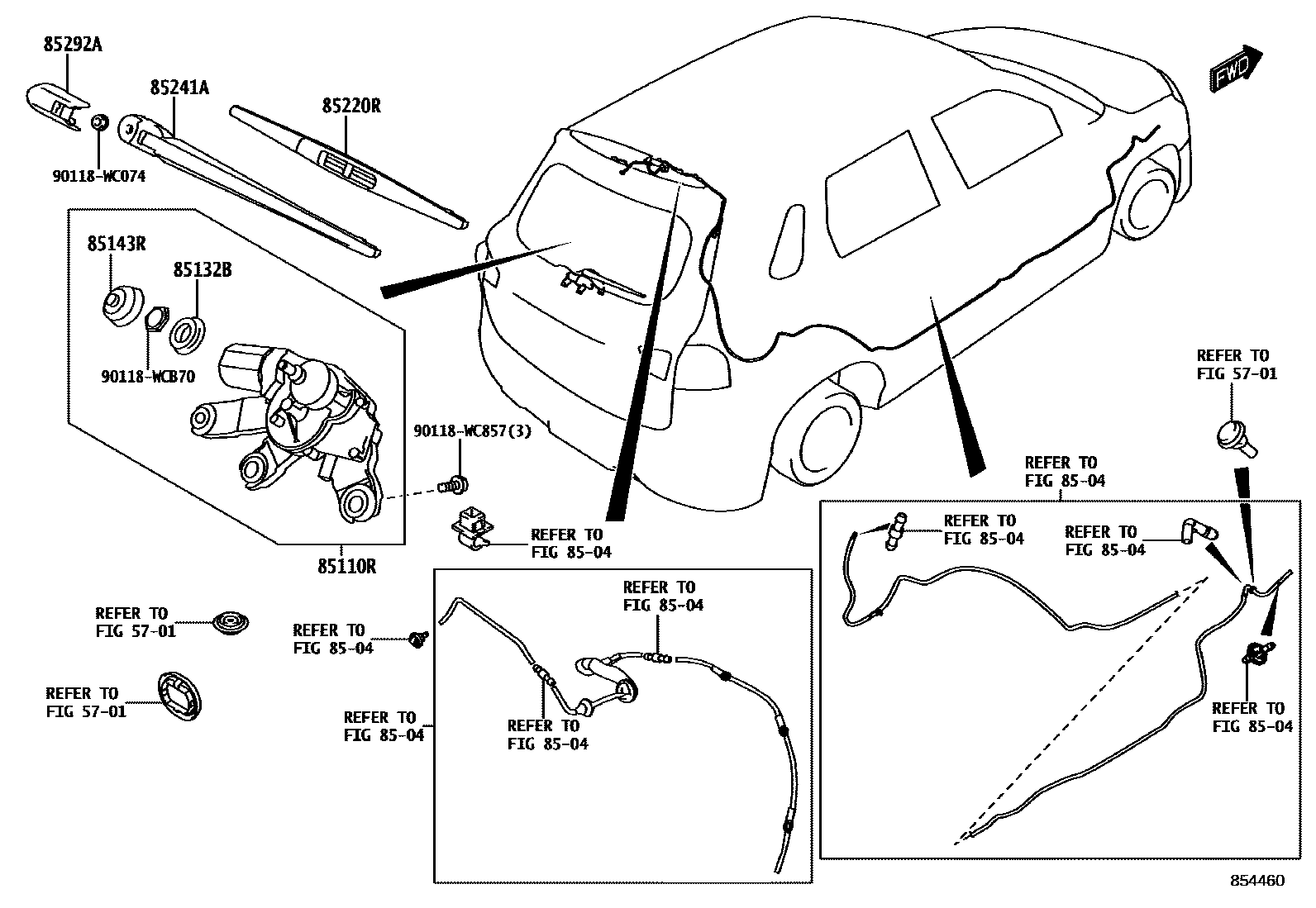

REAR WIPER

5701HOLE PLUG

→ Go to FIG 57-01

8504REAR WASHER

→ Go to FIG 85-04

85110RMOTOR ASSY, REAR WIPER

main85130-WC002iK15B..4FC..H; K15B..4FC..P; K15B..5F..H; K15B..5F..P202010

POS.4; POS.6; POS.7; POS.8

85132BCAP, REAR WIPER SHAFT

main85135-WC001iK15B..4FC..H; K15B..4FC..P; K15B..5F..H; K15B..5F..P202010

POS.4; POS.6; POS.7; POS.8

85143RGROMMET, REAR WIPER MOTOR

main85143-WC002iK15B..4FC..H; K15B..4FC..P; K15B..5F..H; K15B..5F..P202010

POS.4; POS.6; POS.7; POS.8

85220RBLADE ASSY, REAR WIPER

main85212-WC005iK15B..4FC..H; K15B..4FC..P; K15B..5F..H; K15B..5F..P202010

POS.4; POS.6; POS.7; POS.8

85241AARM, REAR WIPER

main85241-WC002iK15B..4FC..H; K15B..4FC..P; K15B..5F..H; K15B..5F..P202010

POS.4; POS.6; POS.7; POS.8

85292ACAP, REAR WIPER ARM HEAD

main85292-WC004iK15B..4FC..H; K15B..4FC..P; K15B..5F..H; K15B..5F..P202010

POS.4; POS.6; POS.7; POS.8

90118WC074

main90118-WC074

90118WC857

main90118-WC857

90118WCB70

main90118-WCB70

11 parts on this diagram · 1 diagram in section
