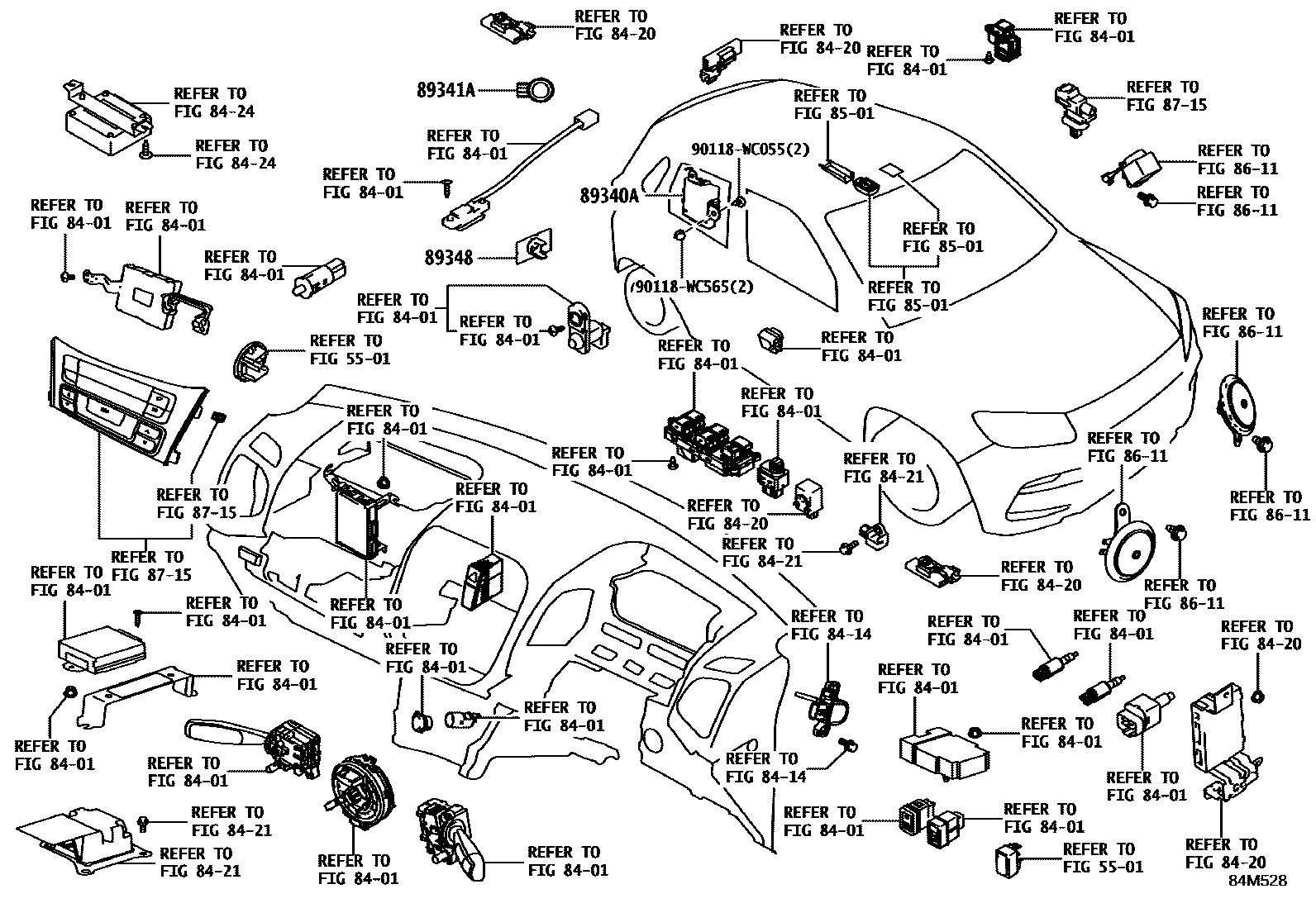

CLEARANCE & BACK SONAR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8421AIR BAG

→ Go to FIG 84-21

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

8501WINDSHIELD WIPER

→ Go to FIG 85-01

8611HORN

→ Go to FIG 86-11

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

89341ASENSOR, ULTRASONIC, NO.1

main89341-WC053×4iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-WC002×4iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

90118WC055

main90118-WC055

90118WC565

main90118-WC565

14 parts on this diagram · 1 diagram in section
