SIDE MOULDING
75061MOULDING SET, OUTSIDE
main75061-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75062MOULDING SET, OUTSIDE, LH
main75062-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75073MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH
main75073-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75074MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH
main75074-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
main75077-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
main75078-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
main75601-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8
75601CCLIP, FRONT FENDER MOULDING
main90118-WC265×7iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
main75602-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8
75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
main75605-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8
75605ECLIP, QUARTER OUTSIDE MOULDING
main90118-WC564×2iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
main75606-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.7; NO PAINT REQ.,POS.8
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
main75850-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
main75860-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
90118WC059
main90118-WC059
90118WC154
main90118-WC154
90118WC265
main90118-WC265
90118WC266
main90118-WC266
90118WC564
main90118-WC564
90118WC874
main90118-WC874
90118WCA24
main90118-WCA24
90118WCC40
main90118-WCC40

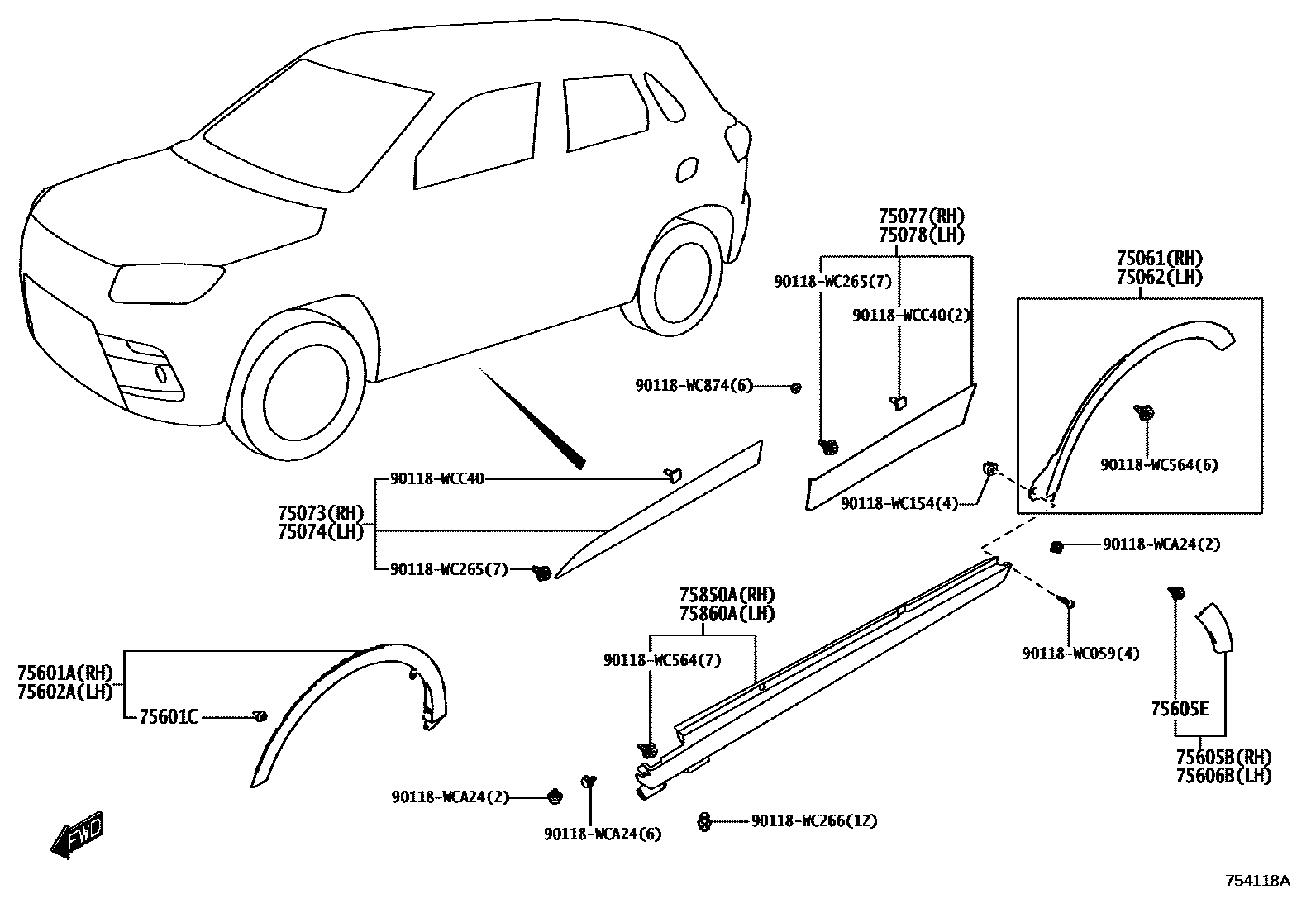

22 parts on this diagram · 5 diagrams in section
