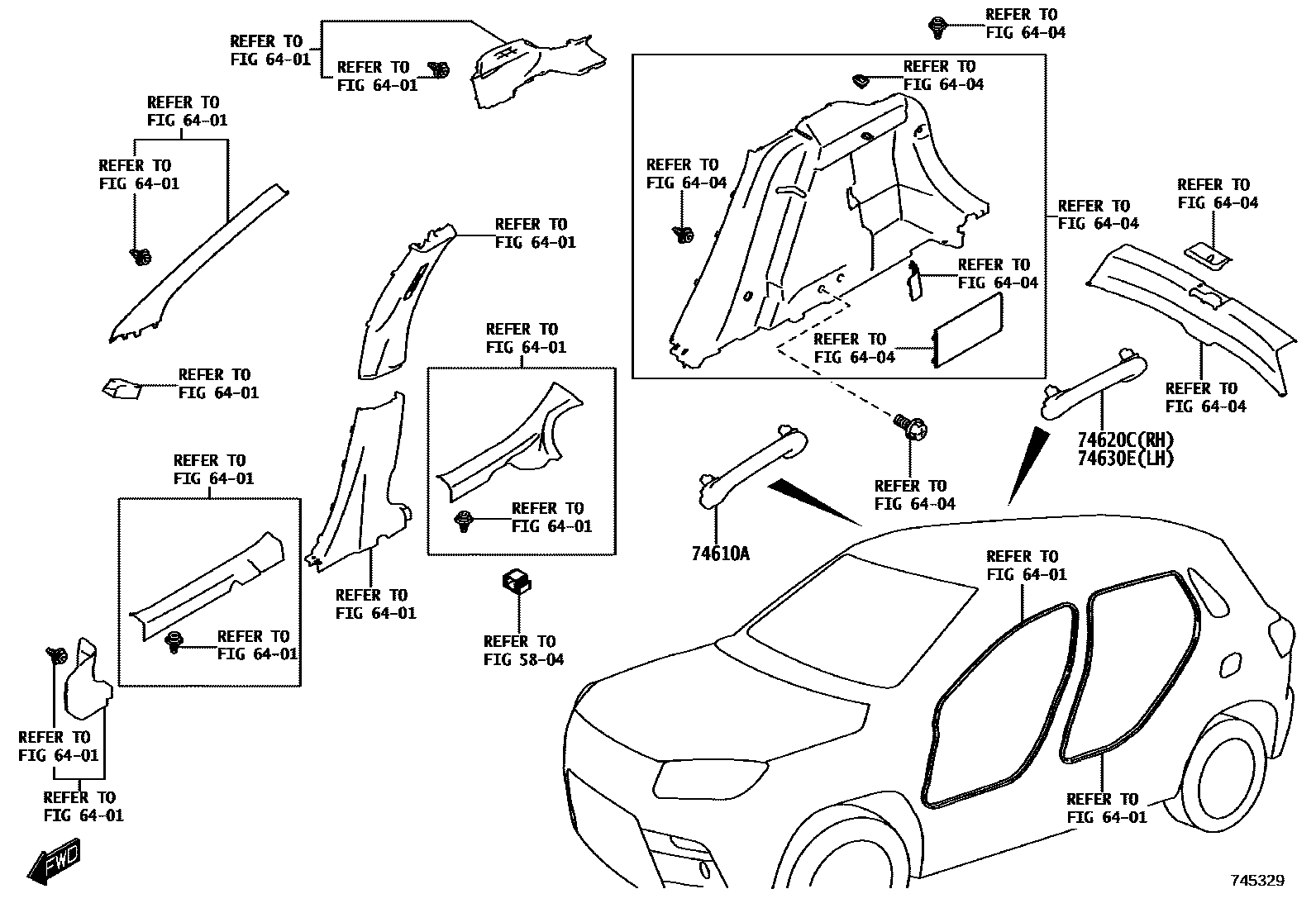

ARMREST & VISOR

0001 1ASSIST GRIP 0002 1FRONT DOOR ARMREST 0003 1REAR DOOR ARMREST 0004 1VISOR

5804MAT & CARPET

→ Go to FIG 58-04

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

74610AGRIP SUB-ASSY, ASSIST

main74610-WC006iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

74620CGRIP ASSY, ASSIST, REAR RH

main74610-WC007iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

74630EGRIP ASSY, ASSIST, REAR LH

main74610-WC007iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

6 parts on this diagram · 4 diagrams in section
