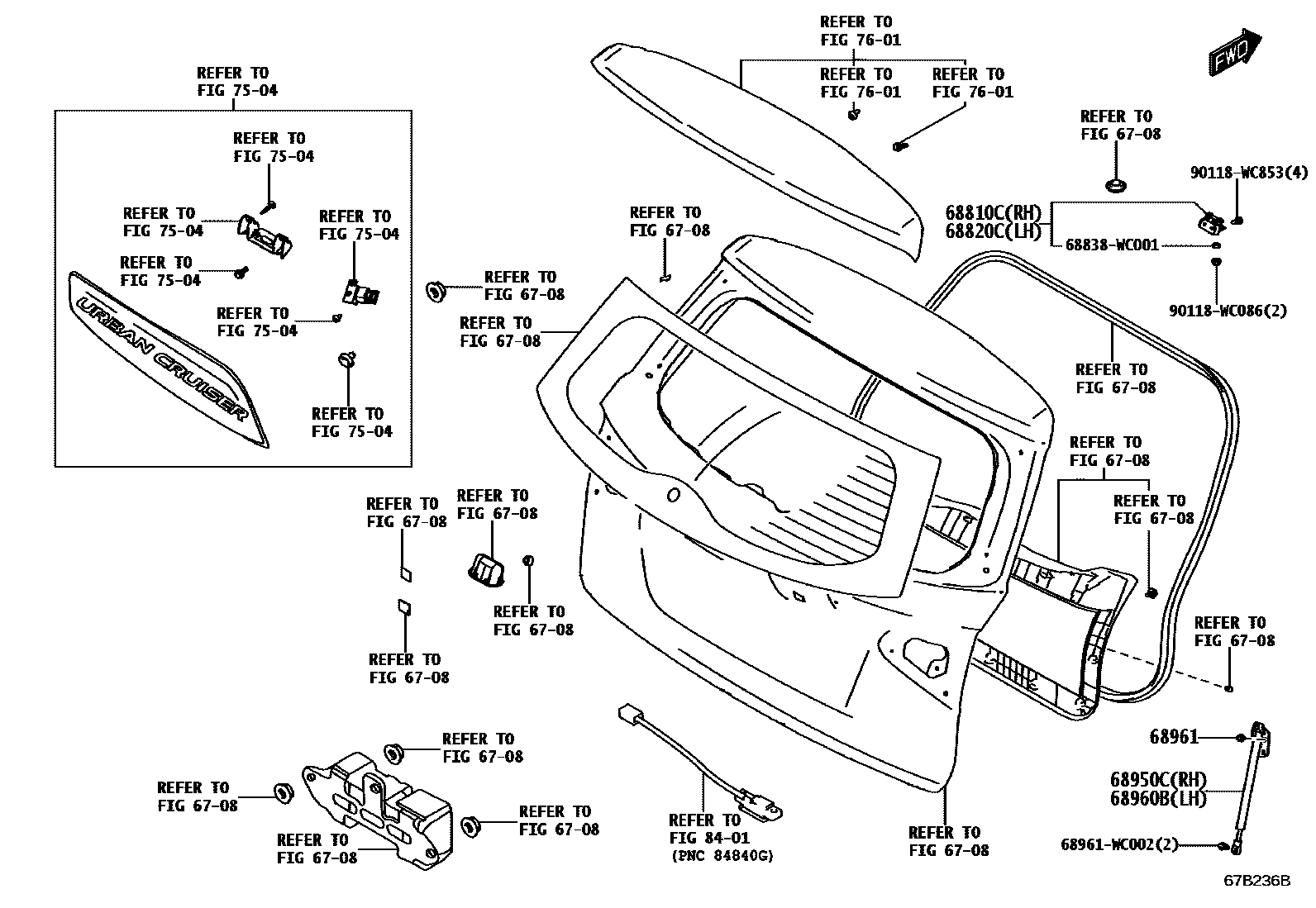

BACK DOOR LOCK & HANDLE

0001 1 0002 1

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

68810CHINGE ASSY, BACK DOOR, RH

main68801-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

68820CHINGE ASSY, BACK DOOR, LH

main68801-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

68950CSTAY ASSY, BACK DOOR, RH

main68950-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

68960BSTAY ASSY, BACK DOOR, LH

main68960-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

68961BOLT, BACK DOOR STAY

main90118-WC854×4iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

7504REAR MOULDING

→ Go to FIG 75-04

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

68838WC001PAD, BACK DOOR HINGE, NO.1

main68838-WC001

68961WC002BOLT, BACK DOOR STAY

main68961-WC002

90118WC086

main90118-WC086

90118WC853

main90118-WC853

13 parts on this diagram · 2 diagrams in section
