INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

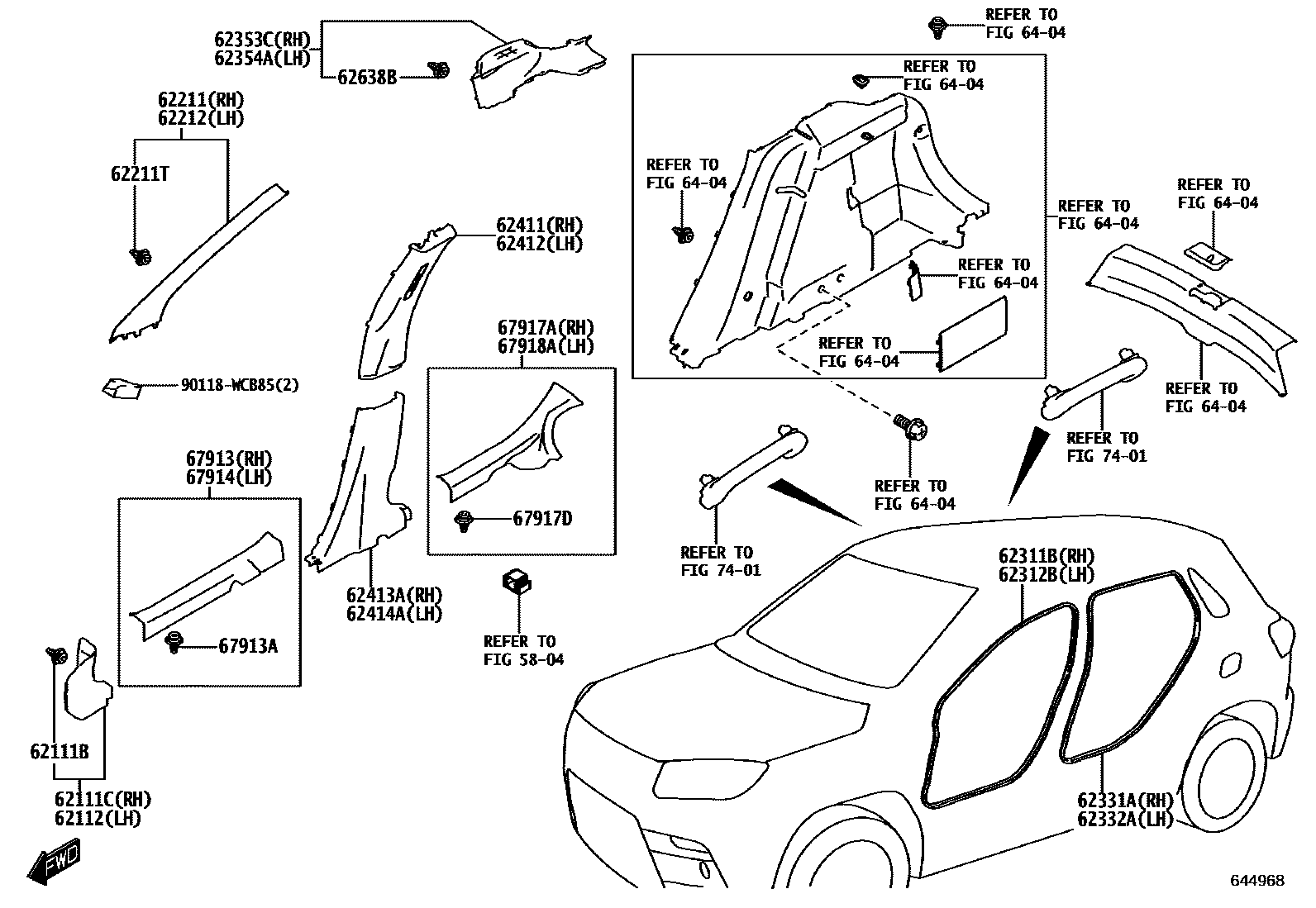

Parts diagram

5804MAT & CARPET

→ Go to FIG 58-04

62111BCLIP(FOR COWL SIDE TRIM)

main90118-WC265i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62111CBOARD, COWL SIDE TRIM, RH

main62111-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62112BOARD, COWL SIDE TRIM, LH

main62112-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62211GARNISH, FRONT PILLAR, RH

main62211-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90118-WC265×3i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62212GARNISH, FRONT PILLAR, LH

main62212-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-WC001i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62331-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62353CTRIM, QUARTER WINDOW INSIDE, RH

main62471-WC003i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62354ATRIM, QUARTER WINDOW INSIDE, LH

main62472-WC003i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62411GARNISH, CENTER PILLAR, RH

main62411-WC003i202010

POS.6; POS.8

main62411-WC004i202010

POS.1; POS.2; POS.4; POS.7

62412GARNISH, CENTER PILLAR, LH

main62412-WC003i202010

POS.6; POS.8

main62412-WC004i202010

POS.1; POS.2; POS.4; POS.7

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

62638BCLIP

main90118-WC265×5i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67913PLATE, FRONT DOOR SCUFF, RH

main67913-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

67913ACLIP(FOR SCUFF PLATE)

main90118-WC265i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

67914PLATE, FRONT DOOR SCUFF, LH

main67914-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

67917APLATE, REAR DOOR SCUFF, RH

main67917-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

67917DCLIP, REAR DOOR SCUFF PLATE

main90118-WC265i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

67918APLATE, REAR DOOR SCUFF, LH

main67918-WC002i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

7401ARMREST & VISOR

→ Go to FIG 74-01

90118WCB85

main90118-WCB85

27 parts on this diagram · 1 diagram in section
