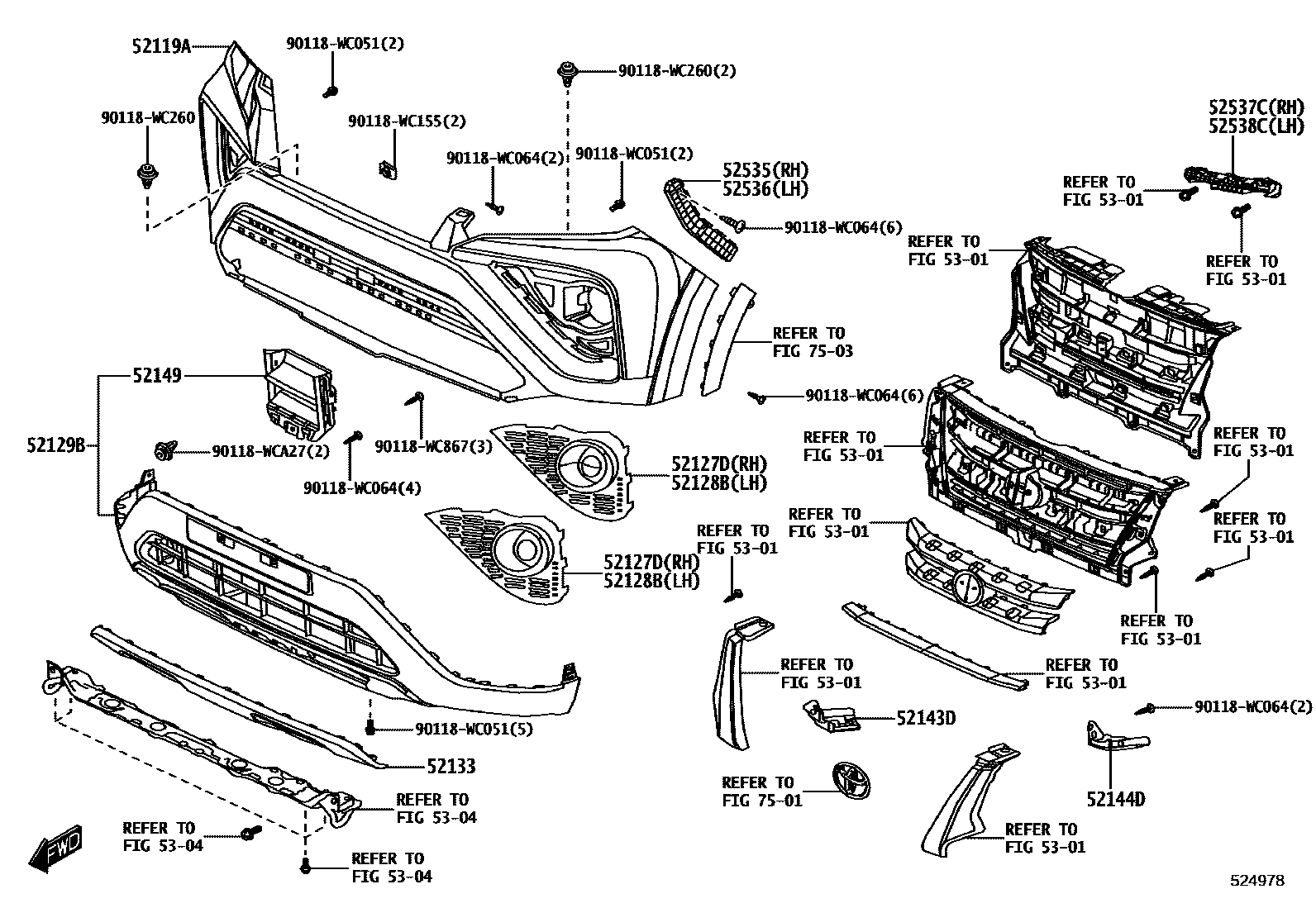

FRONT BUMPER & BUMPER STAY
52119ACOVER, FRONT BUMPER
main52119-WC003iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
PAINT REQ.,POS.1; PAINT REQ.,POS.2; PAINT REQ.,POS.4; PAINT REQ.,POS.6; PAINT REQ.,POS.7; PAINT REQ.,POS.8
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.,POS.1; NO PAINT REQ.,POS.2; NO PAINT REQ.,POS.4; NO PAINT REQ.,POS.7
NO PAINT REQ.,POS.6; NO PAINT REQ.,POS.8
52128BCOVER, FRONT BUMPER HOLE, LH
POS.1; POS.2; POS.4; POS.7
POS.6; POS.8
52129BCOVER, FRONT BUMPER, LOWER
main52129-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52133REINFORCEMENT, FRONT BUMPER
main52133-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
main52133-WC003iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1,W(BLACK SKID PLATE); POS.2,W(BLACK SKID PLATE); POS.4,W(BLACK SKID PLATE); POS.6,W(BLACK SKID PLATE); POS.7,W(BLACK SKID PLATE); POS.8,W(BLACK SKID PLATE)
52143DBRACKET, FRONT BUMPER SIDE, RH
main52143-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52144DBRACKET, FRONT BUMPER SIDE, LH
main52144-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52149BRACKET, FRONT BUMPER, INNER
main52149-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52536RETAINER, FRONT BUMPER SIDE, LH
main52536-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52537CRETAINER, FRONT BUMPER SIDE, NO.2 RH
main52535-WC003iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
52538CRETAINER, FRONT BUMPER SIDE, NO.2 LH
main52536-WC003iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
5301RADIATOR GRILLE
5304FRONT FENDER APRON & DASH PANEL
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
7503SIDE MOULDING
90118WC051
main90118-WC051
90118WC064
main90118-WC064
90118WC155
main90118-WC155
90118WC260
main90118-WC260
90118WC867
main90118-WC867
90118WCA27
main90118-WCA27
22 parts on this diagram · 2 diagrams in section
