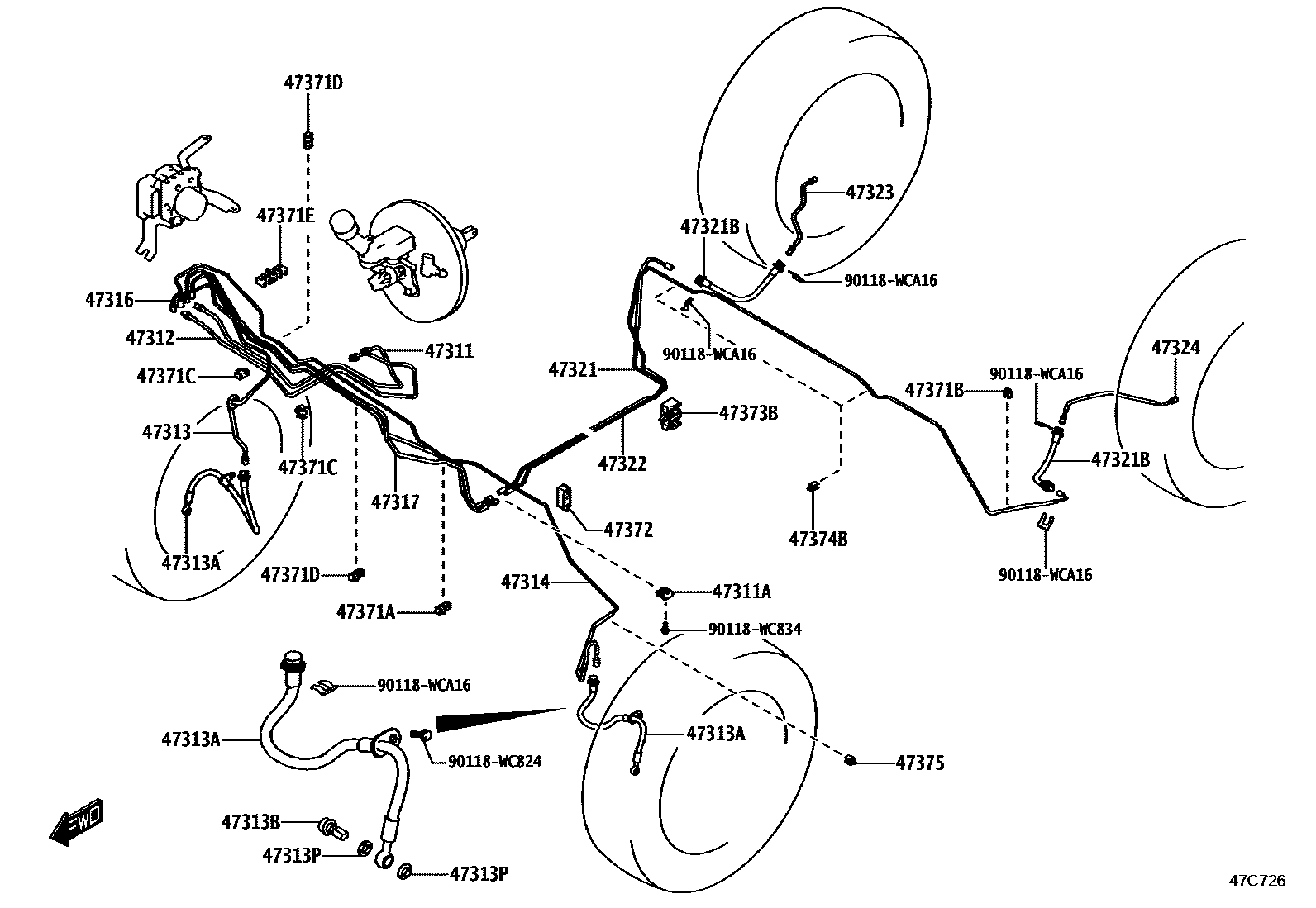

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-WC004

main47311-WC005

main90118-WCU48

47311AWAY(FOR FRONT BRAKE TUBE)

47312TUBE, FRONT BRAKE, NO.2

main47312-WC004

main47312-WC005

47313TUBE, FRONT BRAKE, NO.3

main47389-WC001

main47313-WC003

main90118-WC545

main90118-WCB30

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

47314TUBE, FRONT BRAKE, NO.4

main47315-WC002

47316TUBE, FRONT BRAKE, NO.6

main47316-WC002

47317TUBE, FRONT BRAKE, NO.7

main47317-WC002

47321TUBE, REAR BRAKE, NO.1

main47321-WC002

main90118-WCB31

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47322TUBE, REAR BRAKE, NO.2

main47322-WC002

47323TUBE, REAR BRAKE, NO.3

main47323-WC004

47324TUBE, REAR BRAKE, NO.4

main47324-WC004

47371ACLAMP, BRAKE TUBE, NO.1

47371BCLAMP, BRAKE TUBE, NO.6

47371CCLAMP, BRAKE TUBE, NO.7

47371DCLAMP, BRAKE TUBE, NO.8

47371ECLAMP, BRAKE TUBE, NO.9

47372CLAMP, BRAKE TUBE, NO.2

main90118-WCB78

47373BCLAMP, BRAKE TUBE, NO.3

47374BCLAMP, BRAKE TUBE, NO.4

47375CLAMP, BRAKE TUBE, NO.5

main90118-WC551

90118WC824

main90118-WC824

90118WC834

main90118-WC834

90118WCA16

main90118-WCA16

27 parts on this diagram · 2 diagrams in section
