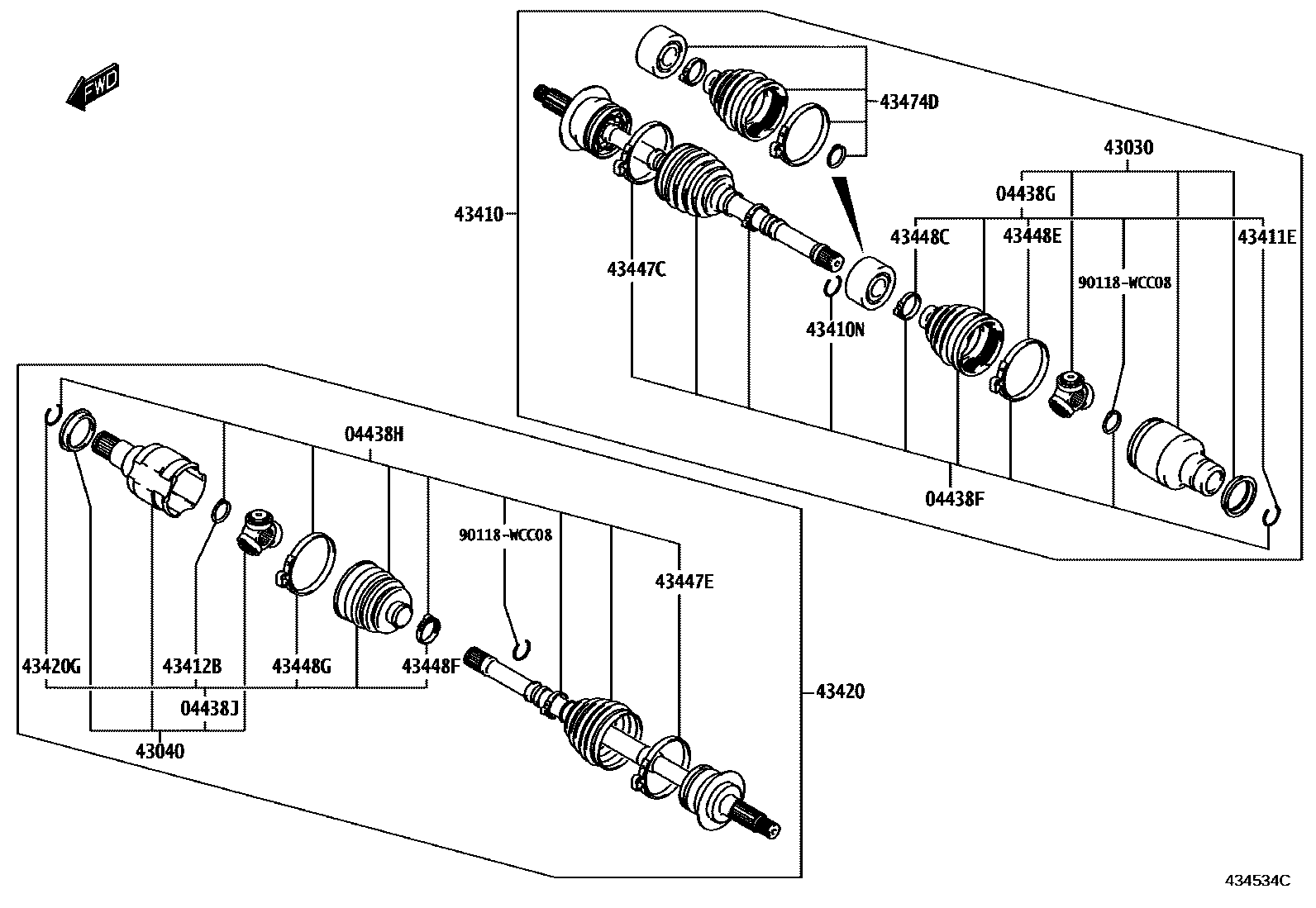

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43040JOINT ASSY, FRONT DRIVE INBOARD, LH
POS.2; POS.4; POS.6
POS.1; POS.7; POS.8
43410SHAFT ASSY, FRONT DRIVE, RH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
main90118-WCC08iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
POS.2; POS.4; POS.6
POS.1; POS.7; POS.8
43420SHAFT ASSY, FRONT DRIVE, LH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
main42345-WC009iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
main42345-WC006iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
main42345-WC009iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
main42345-WC006iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
43474DDAMPER, FRONT DRIVE SHAFT, RH
POS.1; POS.7; POS.8
POS.2; POS.4; POS.6
90118WCC08
main90118-WCC08
20 parts on this diagram · 2 diagrams in section
