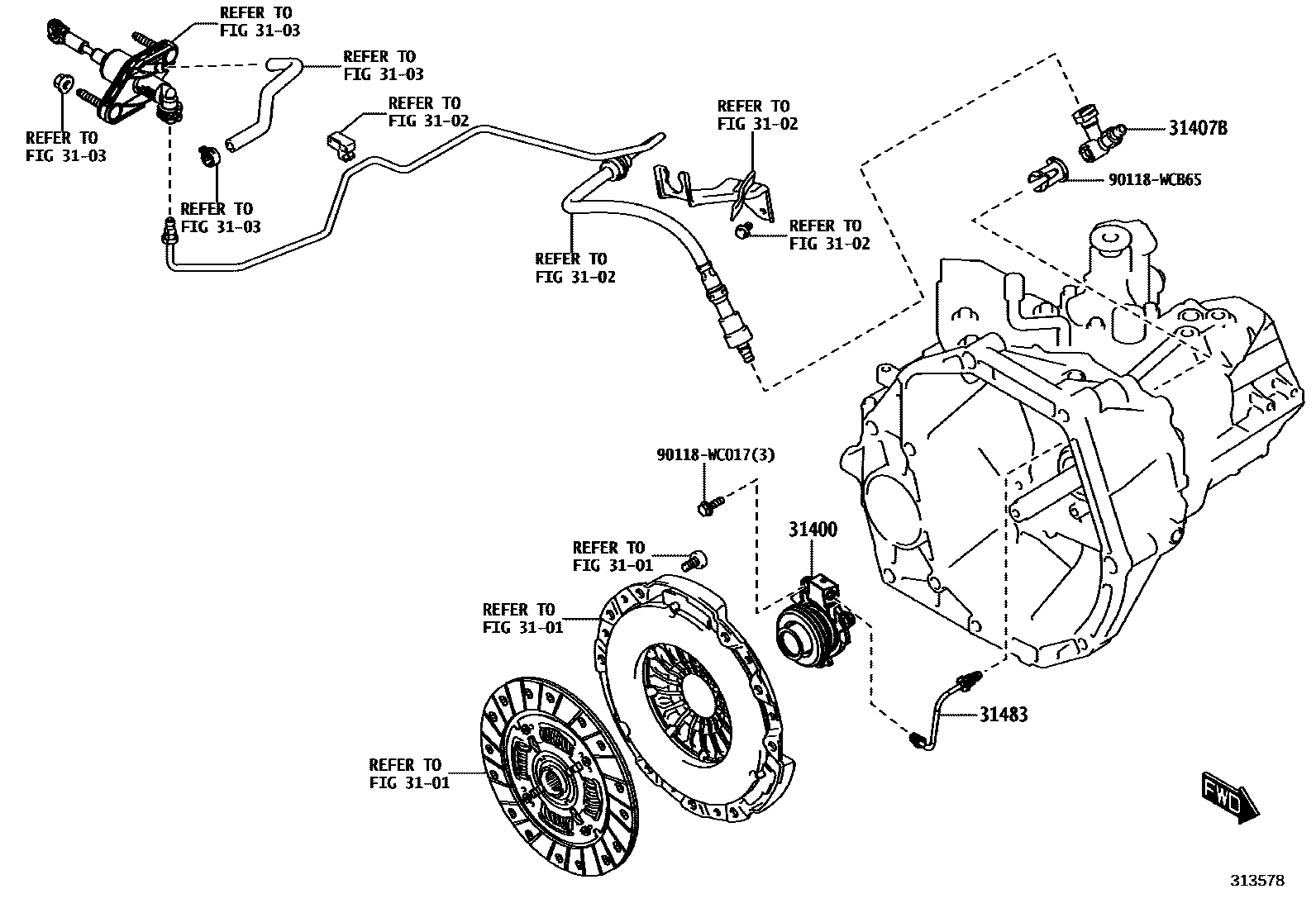

CLUTCH RELEASE CYLINDER

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-WC002iK15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.7; POS.8

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-WC004iK15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.7; POS.8

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-WC001iK15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.7; POS.8

90118WC017

main90118-WC017

90118WCB65

main90118-WCB65

8 parts on this diagram · 1 diagram in section
