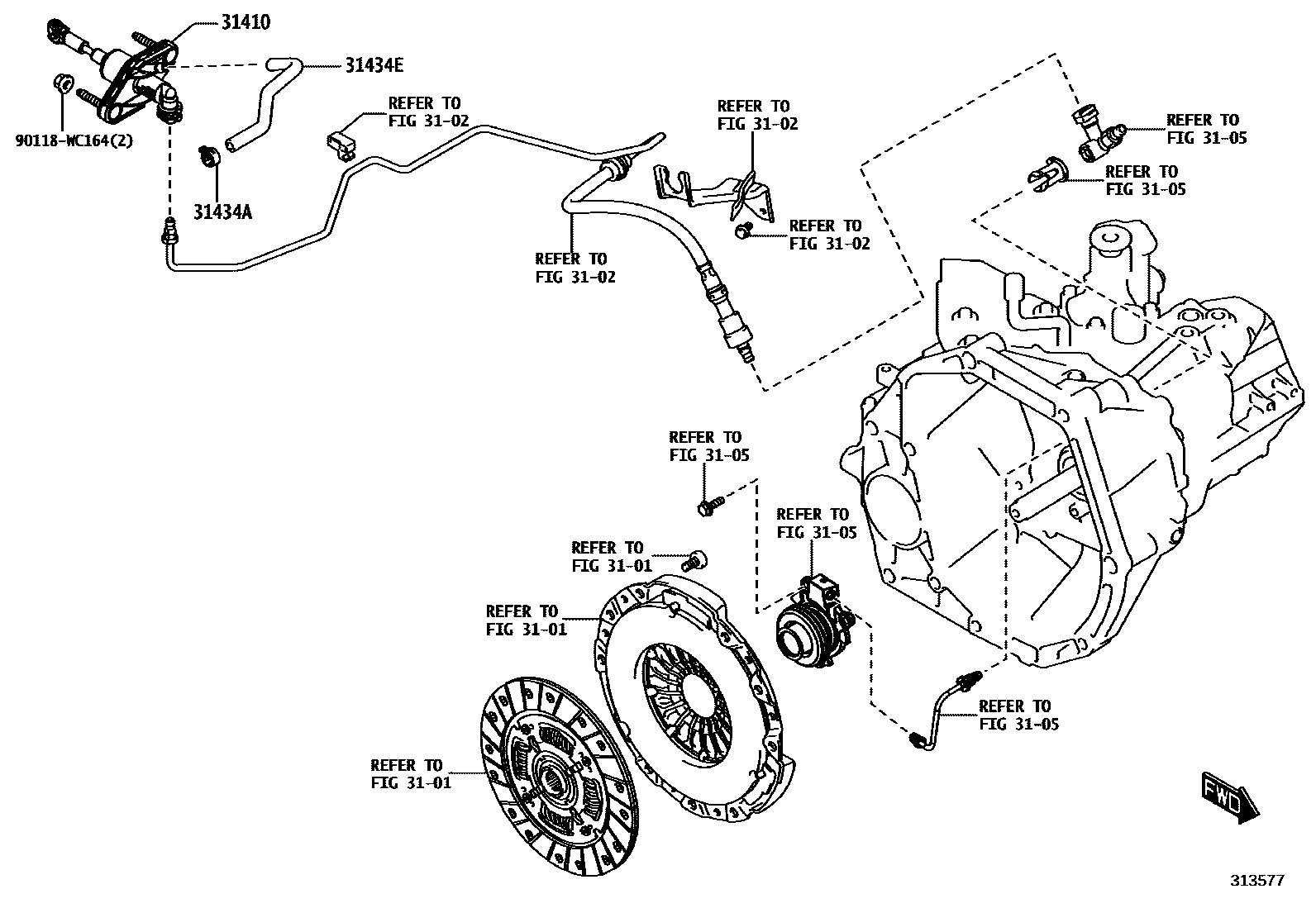

CLUTCH MASTER CYLINDER

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31410CYLINDER ASSY, CLUTCH MASTER

main31410-WC002iK15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.7; POS.8

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90118-WC686iK15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.7; POS.8

31434EHOSE, CLUTCH RESERVOIR, NO.1

main31434-WC003iK15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.7; POS.8

90118WC164

main90118-WC164

7 parts on this diagram · 1 diagram in section
