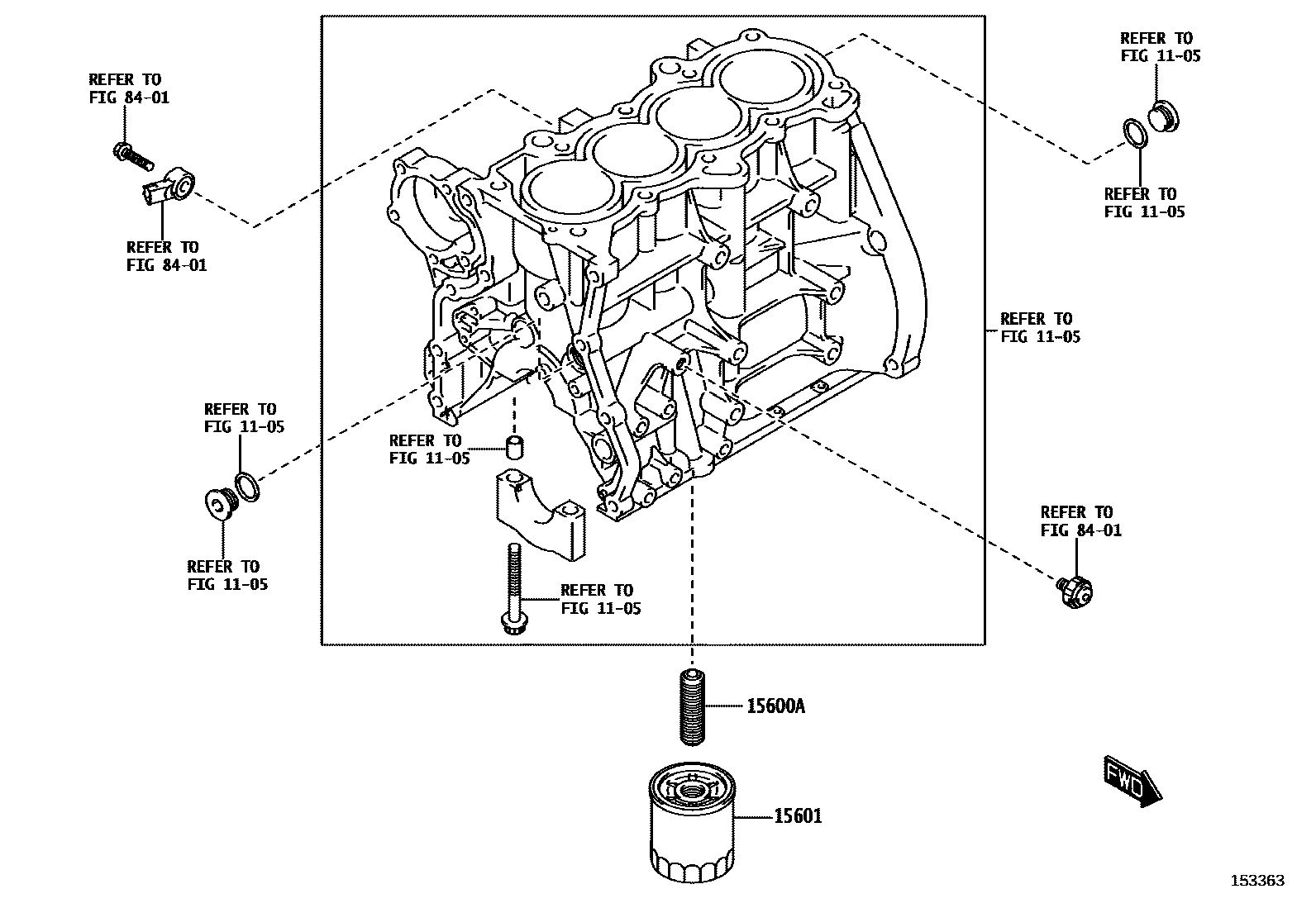

OIL FILTER

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main90118-WC296iK15B..K15B..4FC..H; K15B..K15B..4FC..M; K15B..K15B..4FC..P; K15B..K15B..5F..H; K15B..K15B..5F..M; K15B..K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

15601FILTER SUB-ASSY, OIL

main90118-WC341iK15B..K15B..4FC..H; K15B..K15B..4FC..M; K15B..K15B..4FC..P; K15B..K15B..5F..H; K15B..K15B..5F..M; K15B..K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4 parts on this diagram · 1 diagram in section
