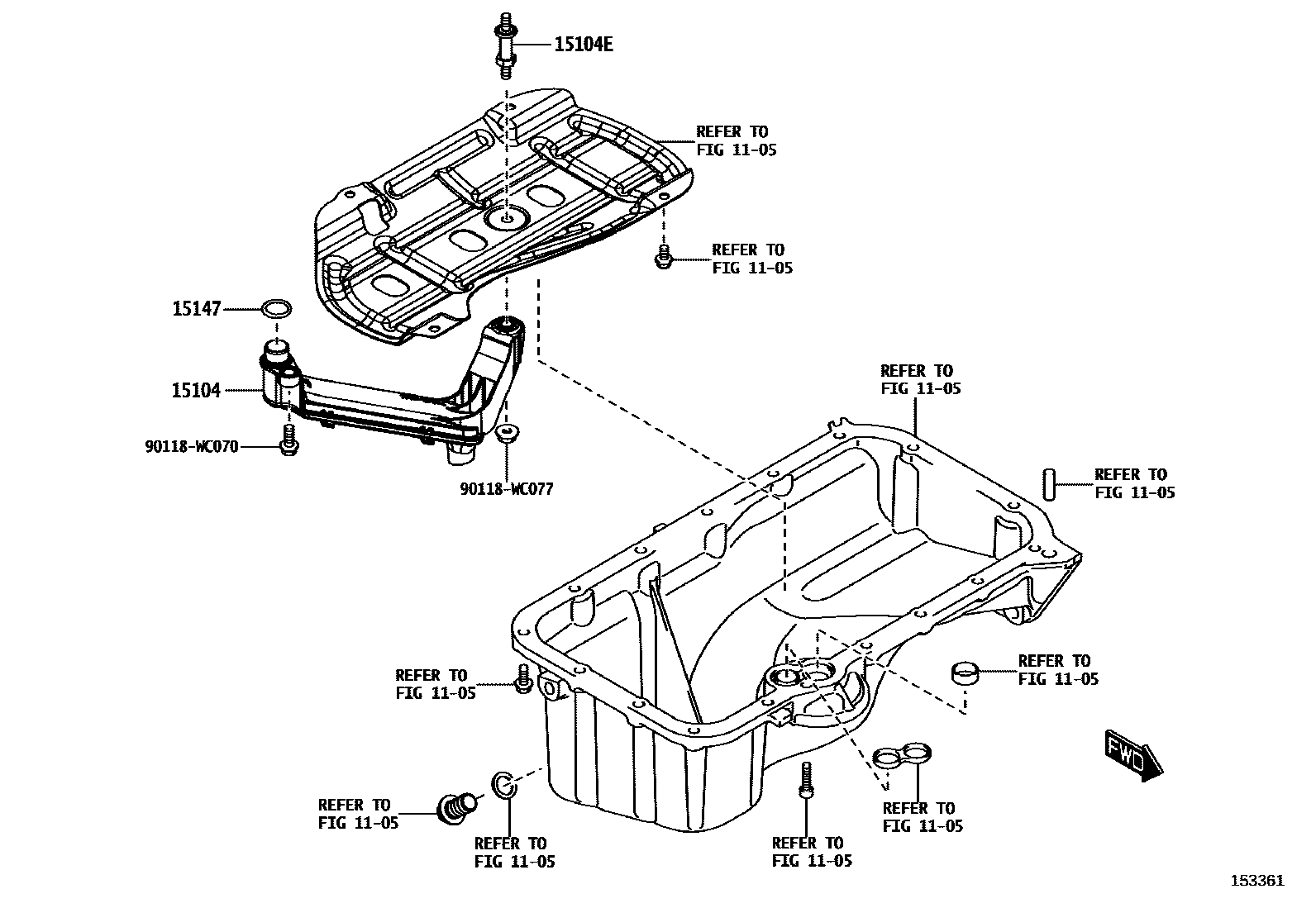

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15104STRAINER SUB-ASSY, OIL

main15104-WC002iK15B..K15B..4FC..H; K15B..K15B..4FC..M; K15B..K15B..4FC..P; K15B..K15B..5F..H; K15B..K15B..5F..M; K15B..K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

15104EBOLT, STUD(FOR OIL STRAINER)

main90118-WC300iK15B..K15B..4FC..H; K15B..K15B..4FC..M; K15B..K15B..4FC..P; K15B..K15B..5F..H; K15B..K15B..5F..M; K15B..K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

15147GASKET, OIL STRAINER

main90118-WC337iK15B..K15B..4FC..H; K15B..K15B..4FC..M; K15B..K15B..4FC..P; K15B..K15B..5F..H; K15B..K15B..5F..M; K15B..K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

90118WC070

main90118-WC070

90118WC077

main90118-WC077

6 parts on this diagram · 2 diagrams in section
