CYLINDER BLOCK

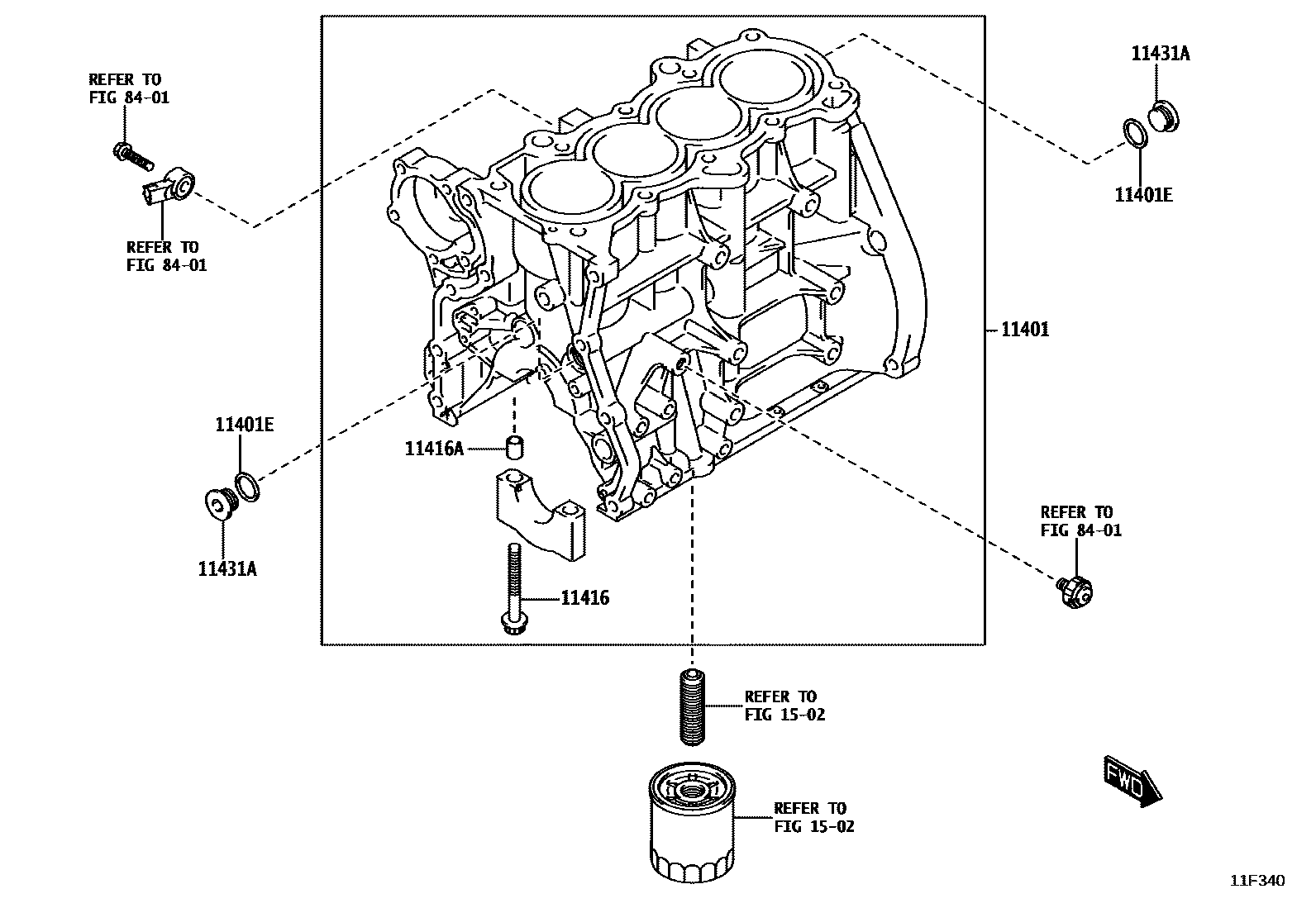

Parts diagram

11401BLOCK SUB-ASSY, CYLINDER

main11410-WC005i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

11401EGASKET(FOR CYLINDER BLOCK PLUG)

main90118-WC640×2i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90118-WCA44×10i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC067×10i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90118-WC202×2i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

1502OIL FILTER

→ Go to FIG 15-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 3 diagrams in section
