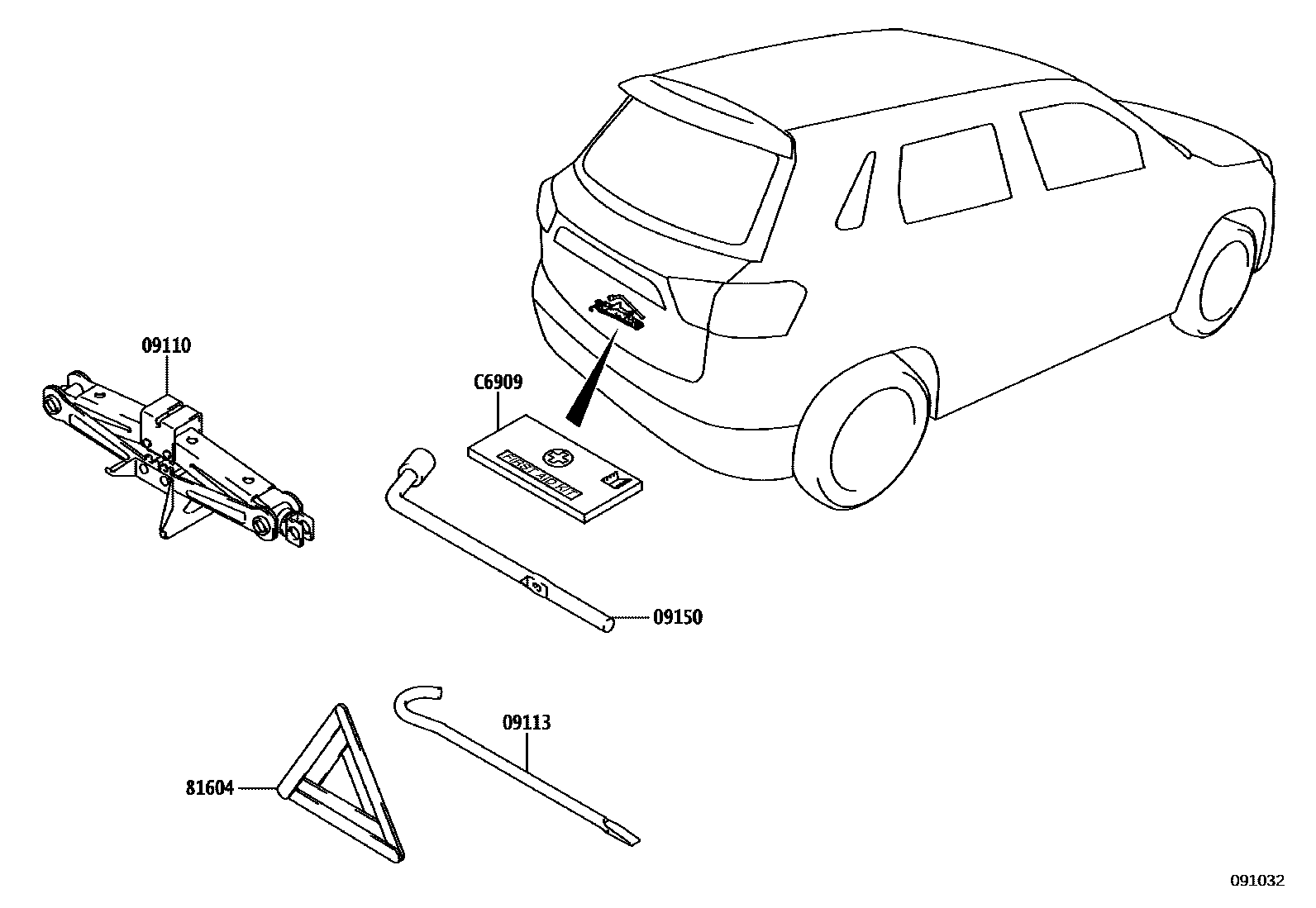

STANDARD TOOL
09110JACK ASSY
main09111-WC003iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
09113HANDLE, JACK
main09113-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
09150WRENCH, HUB NUT BOX
main09150-WC001iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
81604REFLECTOR SET, TRIANGLE
main81604-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1,VENDOR 1; POS.2,VENDOR 1; POS.4,VENDOR 1; POS.6,VENDOR 1; POS.7,VENDOR 1; POS.8,VENDOR 1
main81604-WC003iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1,VENDOR 2; POS.2,VENDOR 2; POS.4,VENDOR 2; POS.6,VENDOR 2; POS.7,VENDOR 2; POS.8,VENDOR 2
C6909FIRST AID KIT
main90118-WC817iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010
POS.1; POS.2; POS.4; POS.6; POS.7; POS.8
5 parts on this diagram · 1 diagram in section
