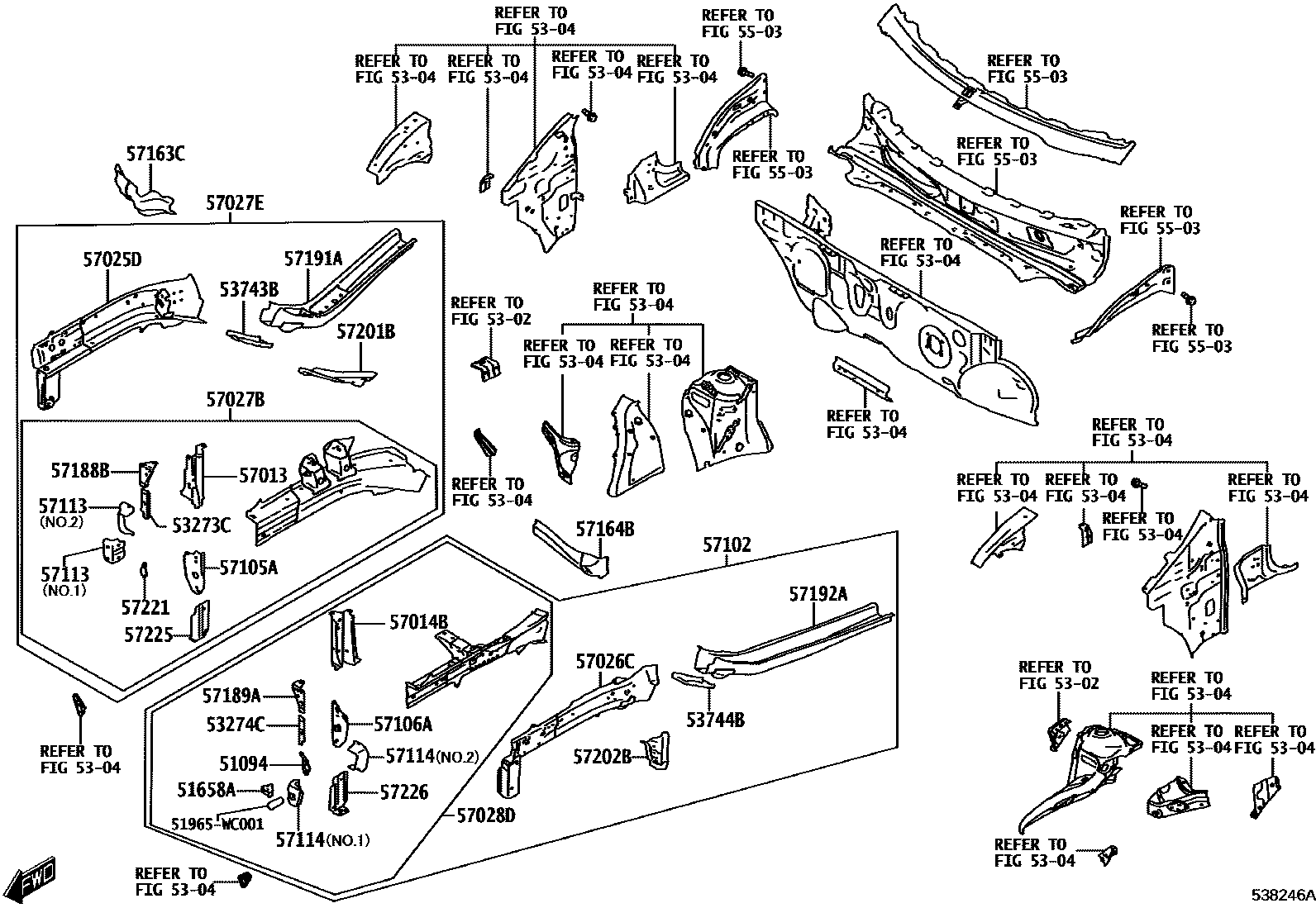

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main52141-WC001

51658ABRACKET, FRONT BUMPER ARM, LH

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main53233-WC005

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

57027EMEMBER SUB-ASSY, FRONT SIDE, RH

57028DMEMBER SUB-ASSY, FRONT SIDE, LH

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-WC008

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-WC001

main57188-WC001

57114EXTENSION, FRONT SIDE MEMBER, LH

main57189-WC001

main57114-WC001

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

57191AMEMBER, FRONT SIDE, INNER REAR RH

57192AMEMBER, FRONT SIDE, INNER REAR LH

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57221BRACKET, FRONT SIDE MEMBER, RH

main52081-WC001

57225BRACE, FRONT MOUNTING BRACKET, RH

main53273-WC001

57226BRACE, FRONT MOUNTING BRACKET, LH

main53274-WC001

51965WC001BRACKET, HOOK SUPPORT, LOWER

main51965-WC001

33 parts on this diagram · 3 diagrams in section
