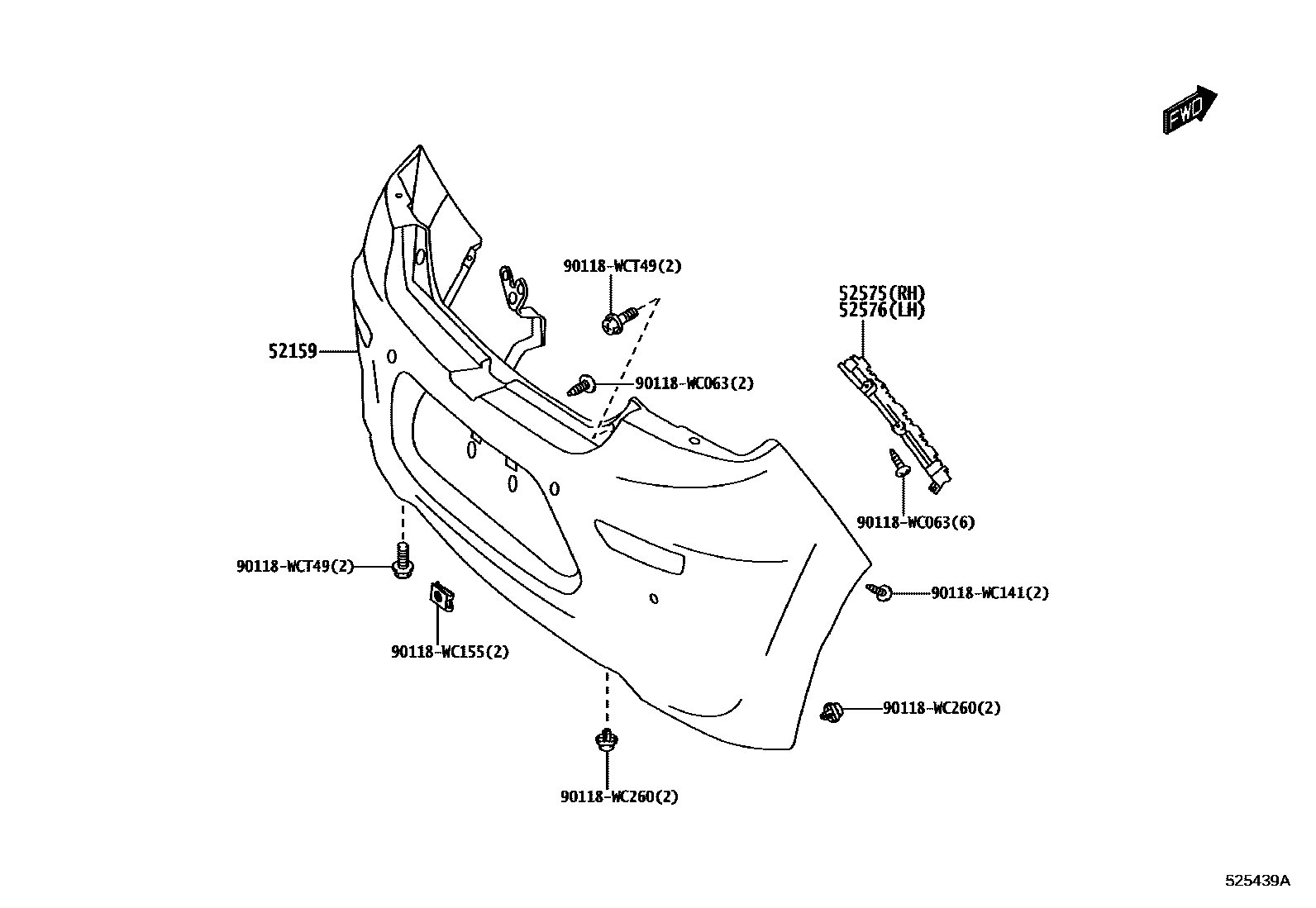

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
52575RETAINER, REAR BUMPER SIDE, RH
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
52576RETAINER, REAR BUMPER SIDE, LH
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
90118WC063
main90118-WC063
90118WC141
main90118-WC141
90118WC155
main90118-WC155
90118WC260
main90118-WC260
90118WCT49
main90118-WCT49
8 parts on this diagram · 1 diagram in section
