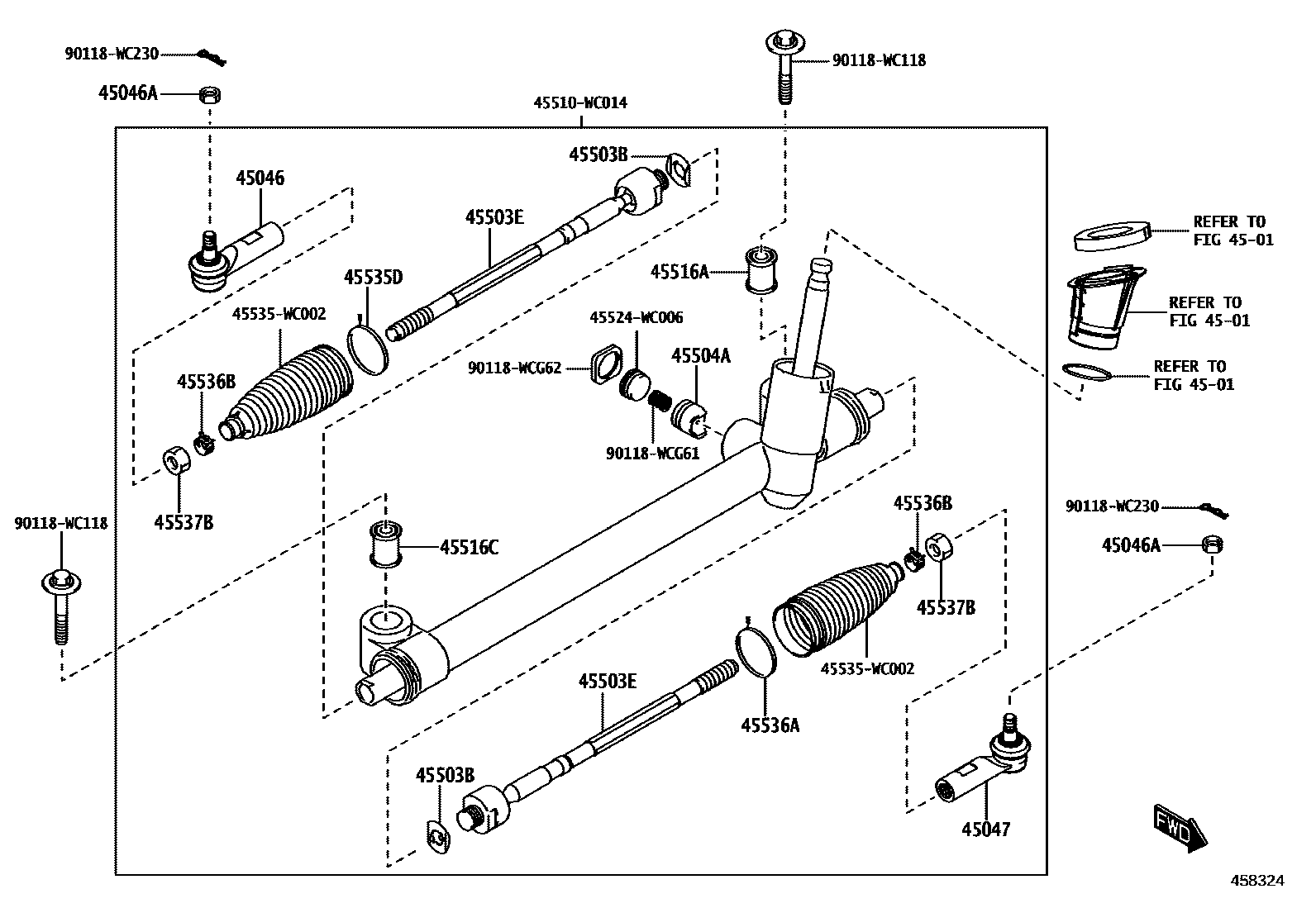

FRONT STEERING GEAR & LINK

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45046ANUT, CASTLE(FOR TIE ROD END)

main90118-WC148×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45047END SUB-ASSY, TIE ROD, LH

main45046-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45503BWASHER, CLAW(FOR STEERING RACK END)

main90118-WCB24×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45503EEND SUB-ASSY, STEERING RACK

main45503-WC005×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45504AGUIDE SUB-ASSY, RACK

main45504-WC005i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-WC003i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-WC004i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90118-WCC11i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90118-WCC11i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45536BCLAMP(FOR STEERING RACK BOOT NO.3)

main90118-WCB25×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45537BNUT, RACK END LOCK

main90118-WCB23×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

45510WC014GEAR ASSY, STEERING

main45510-WC014

45524WC006CAP, STEERING RACK GUIDE SPRING

main45524-WC006

45535WC002BOOT, STEERING RACK, NO.1

main45535-WC002

90118WC118

main90118-WC118

90118WC230

main90118-WC230

90118WCG61

main90118-WCG61

90118WCG62

main90118-WCG62

20 parts on this diagram · 2 diagrams in section
