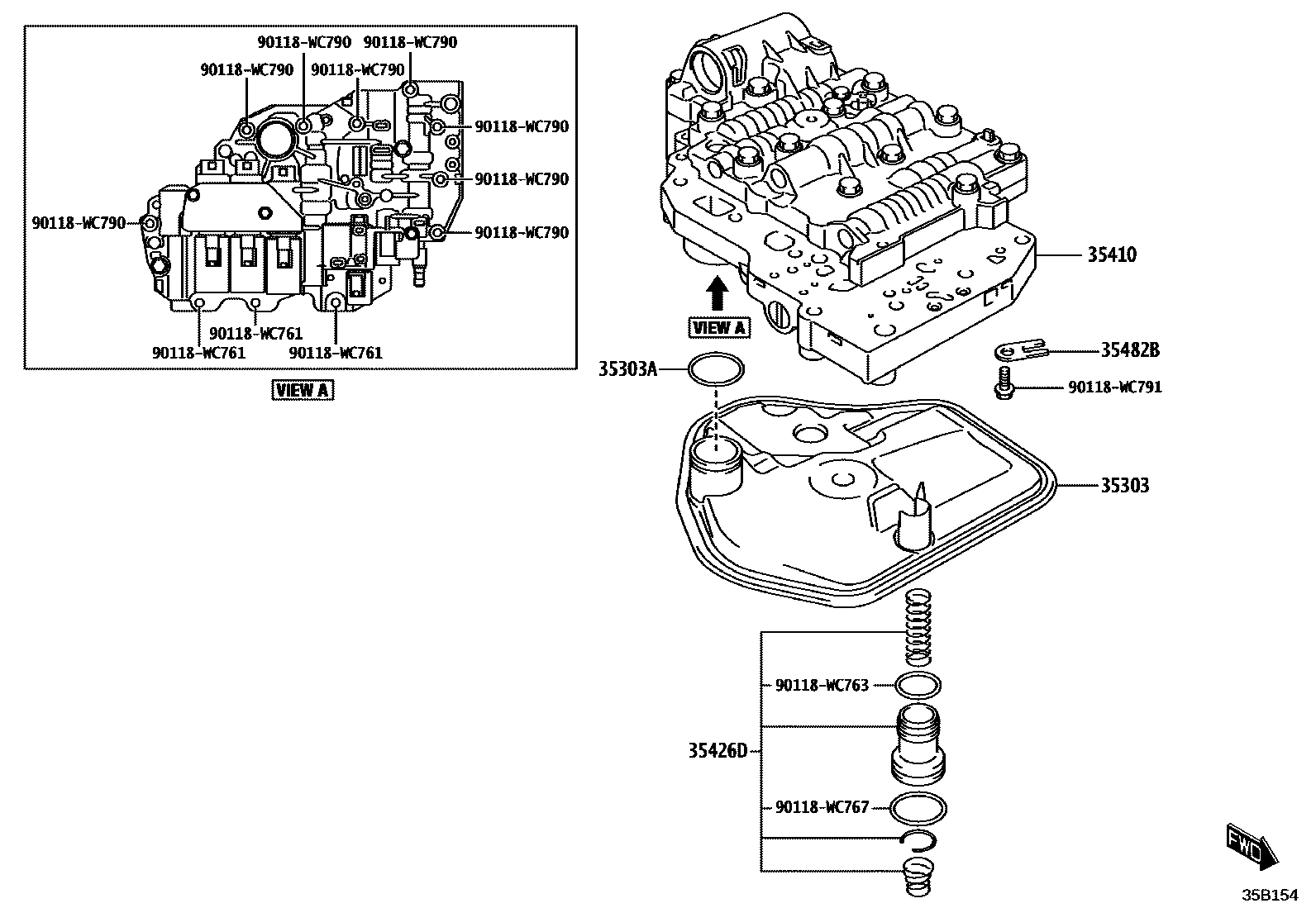

VALVE BODY & OIL STRAINER (ATM)
35303STRAINER SUB-ASSY, OIL
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
35303ARING, O (FOR OIL STRAINER)
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
35410BODY ASSY, TRANSMISSION VALVE
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
35426DPISTON, C-3 ACCUMULATOR
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
35482BCLAMP, TEMPERATURE SENSOR
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
90118WC761
main90118-WC761
90118WC763
main90118-WC763
90118WC767
main90118-WC767
90118WC790
main90118-WC790
90118WC791
main90118-WC791
10 parts on this diagram · 1 diagram in section
