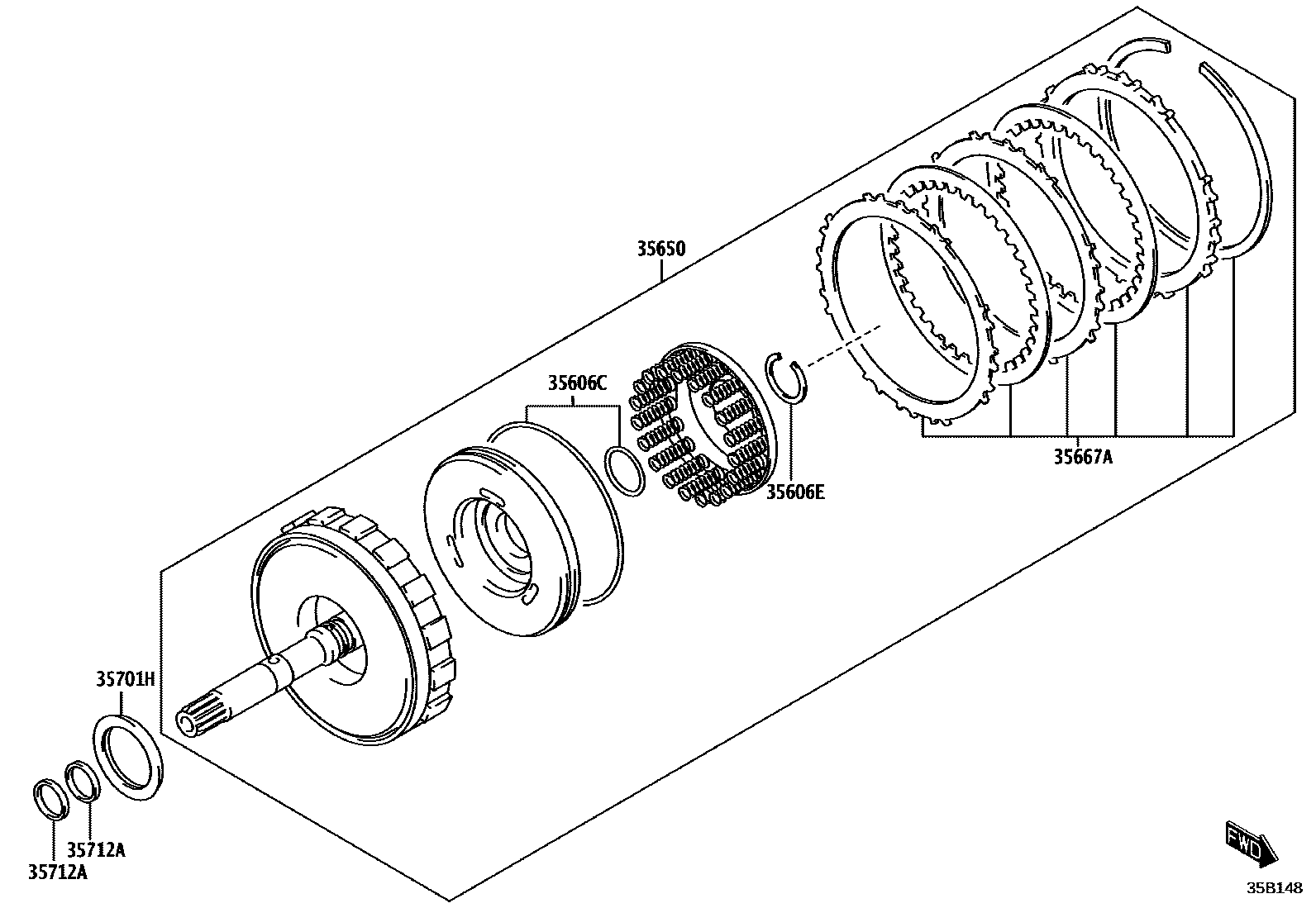

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90118-WC766i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90118-WC768i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35667ADISK, DIRECT CLUTCH

main35667-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90118-WC752i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35712ARING, INPUT SHAFT OIL SEAL

main35712-WC001×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

6 parts on this diagram · 3 diagrams in section
