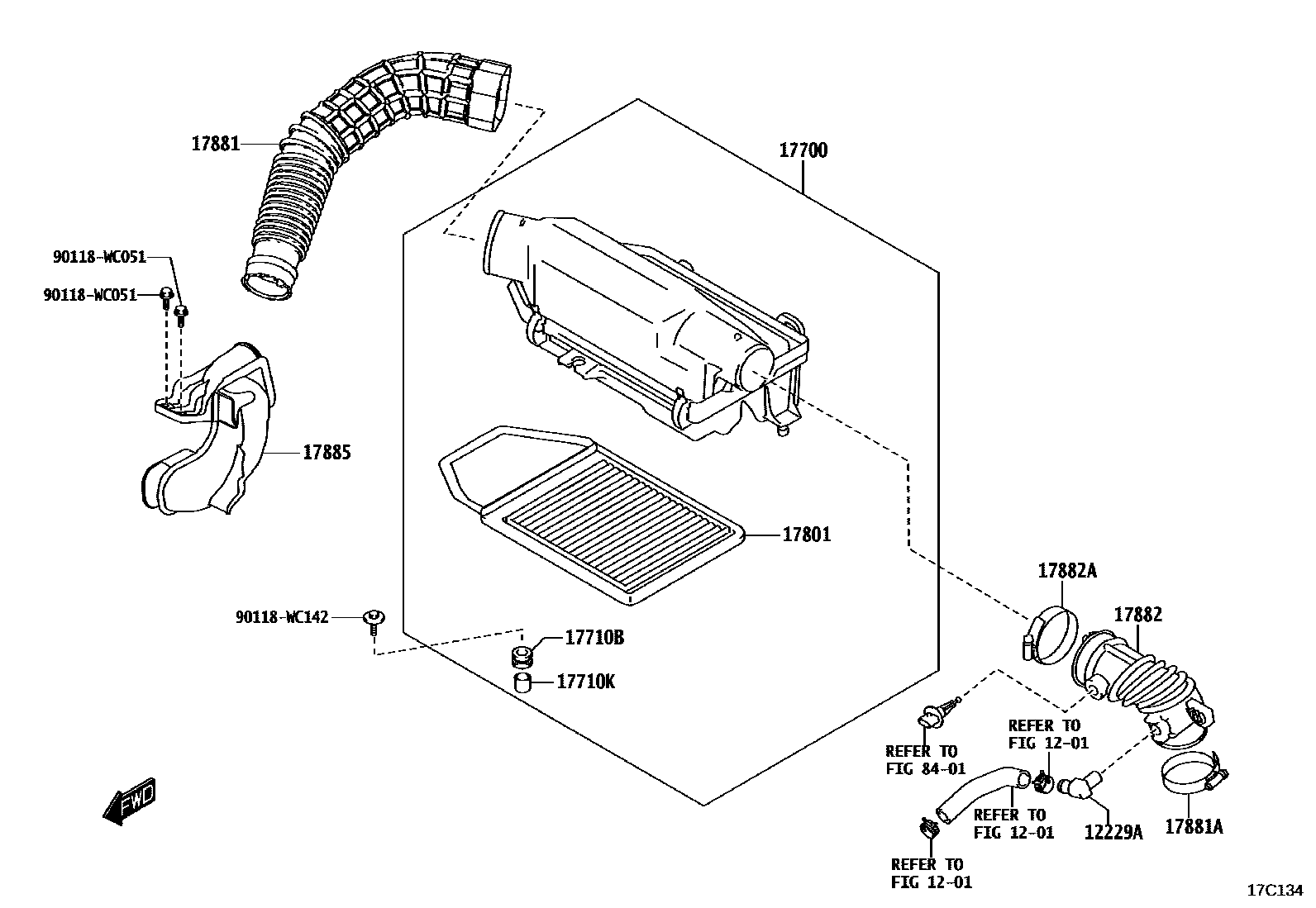

AIR CLEANER

1201VENTILATION HOSE

12229APIPE, VENTILATION

main12229-WC001i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17700CLEANER ASSY, AIR

main17700-WC004i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17710BGROMMET

main90118-WCA50i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17710KCOLLAR(FOR AIR CLEANER)

main90118-WCA51i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-WC003i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17881HOSE, AIR CLEANER, NO.1

main52812-WC006i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90118-WC814i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17882HOSE, AIR CLEANER, NO.2

main17881-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90118-WC325×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17885PIPE, AIR CLEANER

main52811-WC007i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

8401SWITCH & RELAY & COMPUTER

90118WC051

90118WC142

14 parts on this diagram · 2 diagrams in section
