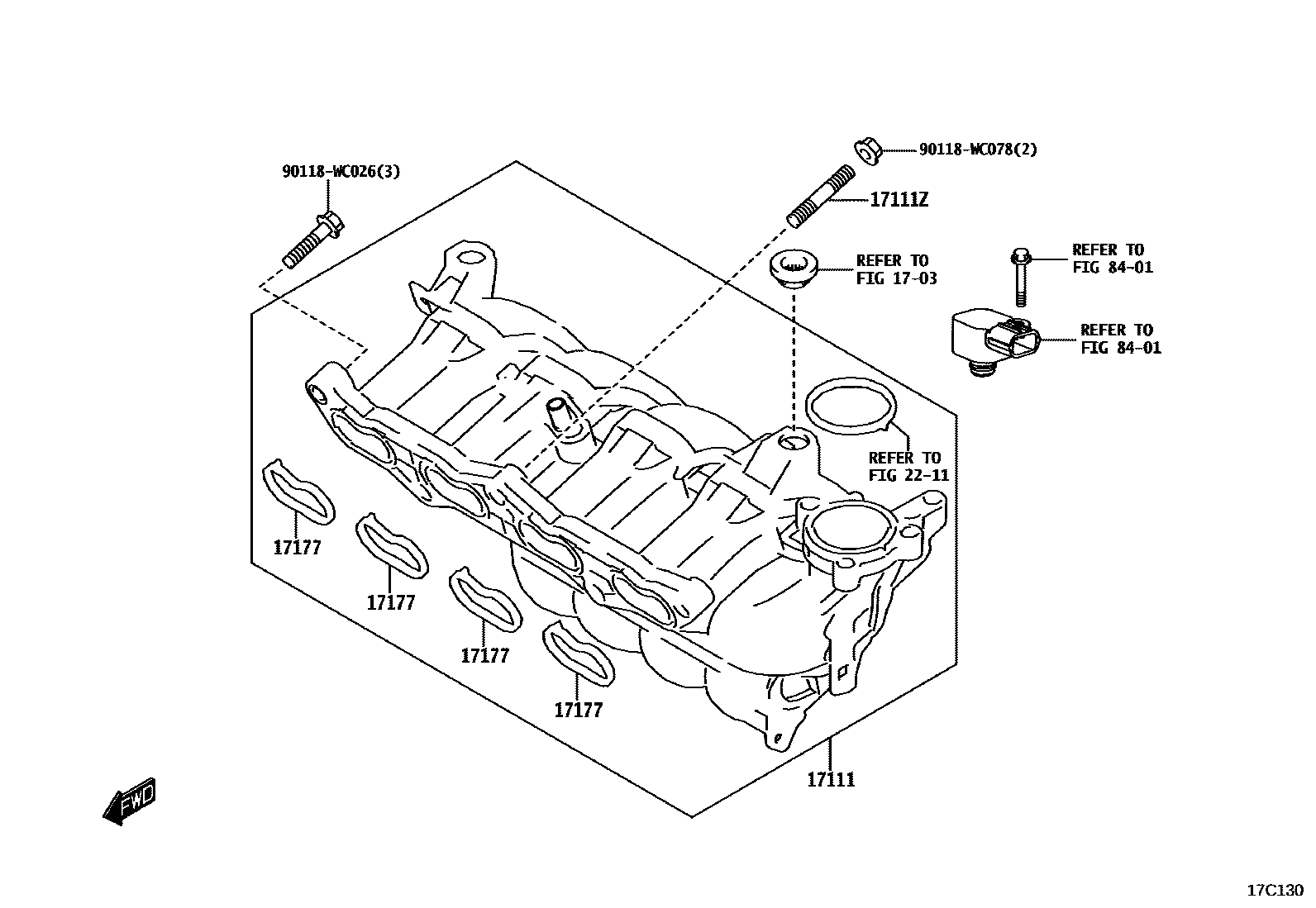

MANIFOLD

1703AIR CLEANER

17111MANIFOLD, INTAKE

main17120-WC003i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90118-WC003×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-WC002×4i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

2211FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

90118WC026

90118WC078

8 parts on this diagram · 2 diagrams in section
