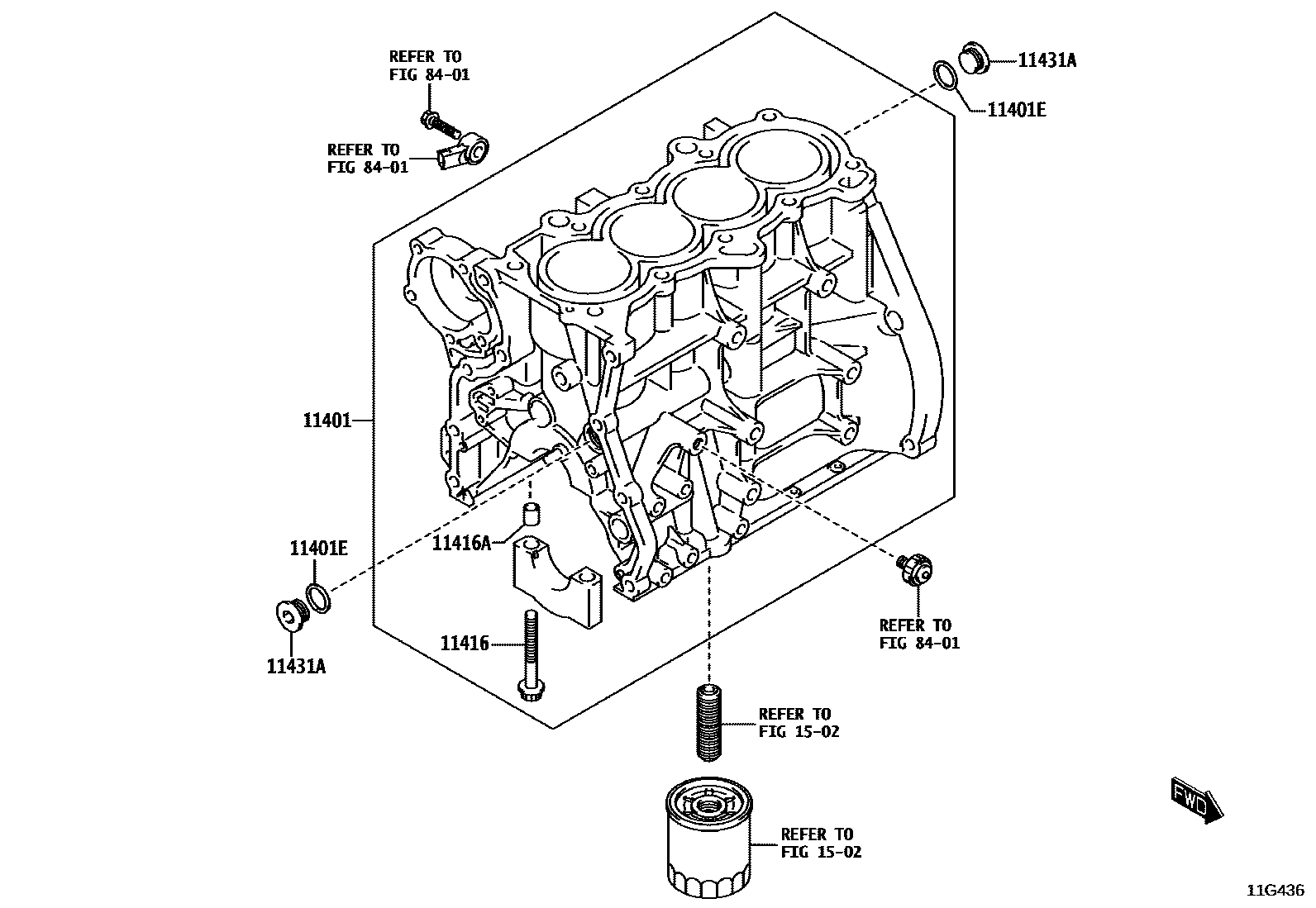

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
11401EGASKET(FOR CYLINDER BLOCK PLUG)
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86
1502OIL FILTER
8401SWITCH & RELAY & COMPUTER
7 parts on this diagram · 3 diagrams in section
