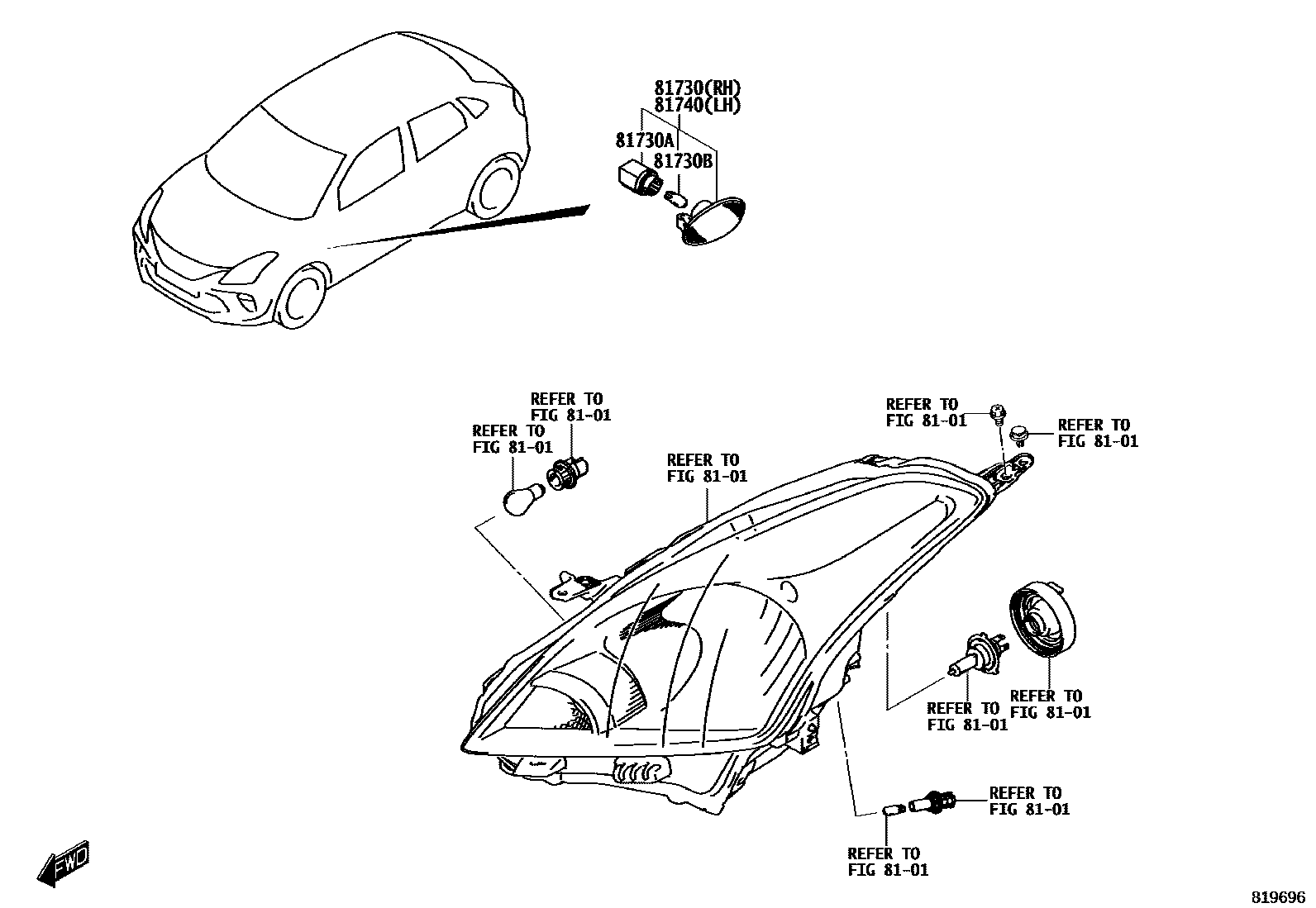

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

8101HEADLAMP

→ Go to FIG 81-01

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-WC001i202007

POS.33; POS.34; POS.43; POS.44; POS.47; POS.50

main81730-WC002i202007

POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

81730ASOCKET PLUG(FOR SIDE TURN SIGNAL LAMP)

main90118-WC793×2i202007

POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90118-WC691×2i202007

POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-WC002i202007

POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

main81740-WC001i202007

POS.33; POS.34; POS.43; POS.44; POS.47; POS.50

5 parts on this diagram · 2 diagrams in section
