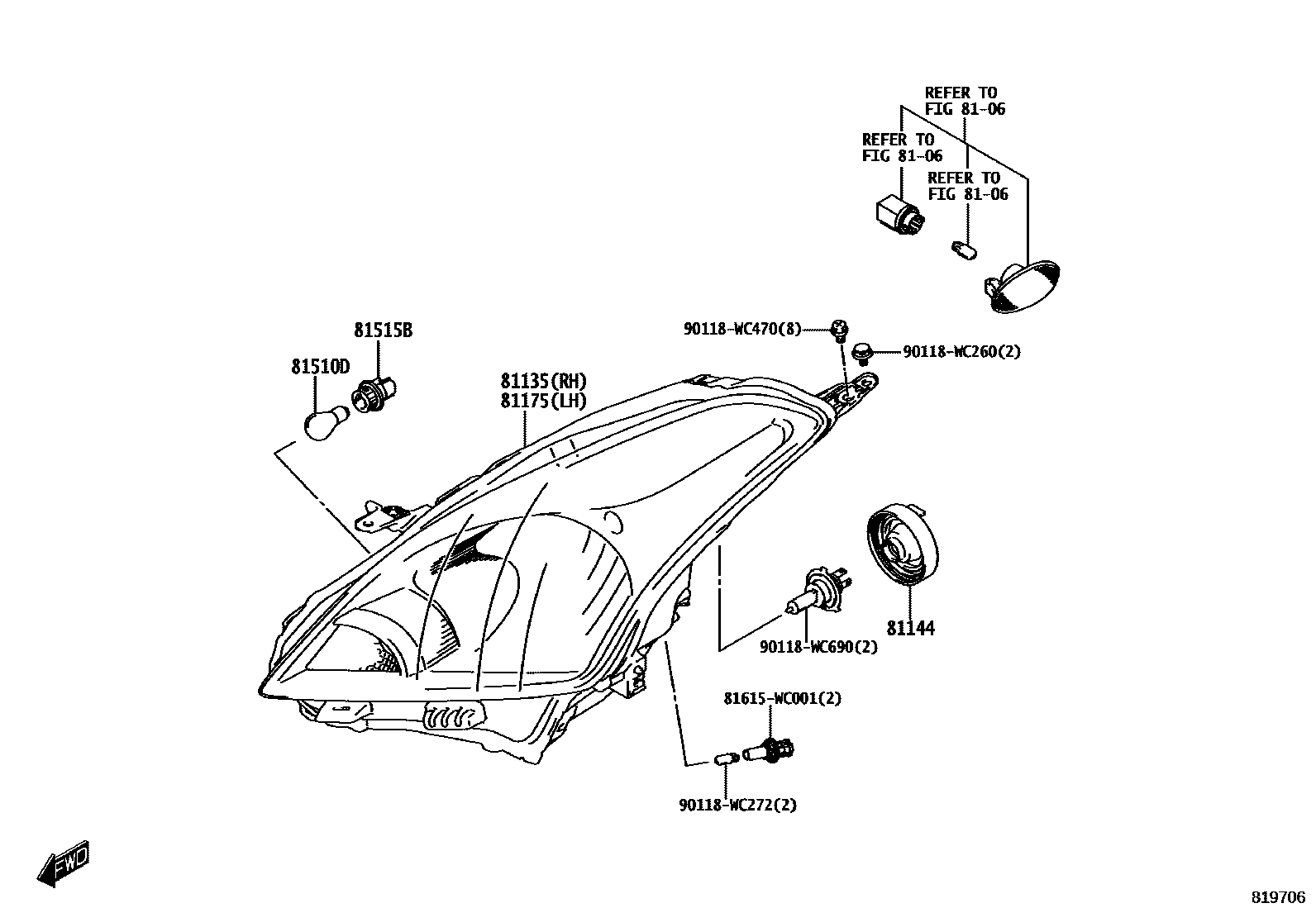

HEADLAMP
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81135UNIT ASSY, HEADLAMP, RH
POS.33; POS.34
POS.43; POS.44; POS.47; POS.50
POS.29; POS.30; POS.31; POS.32; POS.51; POS.52
main81130-WC005iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.53; POS.54; POS.55; POS.56
81144COVER, HEADLAMP, NO.1
main81139-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
81175UNIT ASSY, HEADLAMP, LH
POS.33; POS.34
POS.43; POS.44; POS.47; POS.50
POS.29; POS.30; POS.31; POS.32; POS.51; POS.52
main81170-WC005iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.53; POS.54; POS.55; POS.56
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
main90118-WC274iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
12V 21W,POS.29; 12V 21W,POS.30; 12V 21W,POS.31; 12V 21W,POS.32; 12V 21W,POS.33; 12V 21W,POS.34; 12V 21W,POS.35; 12V 21W,POS.36; 12V 21W,POS.37; 12V 21W,POS.38; 12V 21W,POS.39; 12V 21W,POS.40; 12V 21W,POS.41; 12V 21W,POS.42; 12V 21W,POS.43; 12V 21W,POS.44; 12V 21W,POS.45; 12V 21W,POS.46; 12V 21W,POS.47; 12V 21W,POS.48; 12V 21W,POS.49; 12V 21W,POS.50; 12V 21W,POS.51; 12V 21W,POS.52; 12V 21W,POS.53; 12V 21W,POS.54; 12V 21W,POS.55; 12V 21W,POS.56
81515BSOCKET, FRONT TURN SIGNAL LAMP
main81515-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
main81515-WC006iK14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
81615WC001SOCKET AND WIRE, CLEARANCE LAMP
main81615-WC001
90118WC260
main90118-WC260
90118WC272
main90118-WC272
90118WC470
main90118-WC470
90118WC690
main90118-WC690
11 parts on this diagram · 2 diagrams in section
