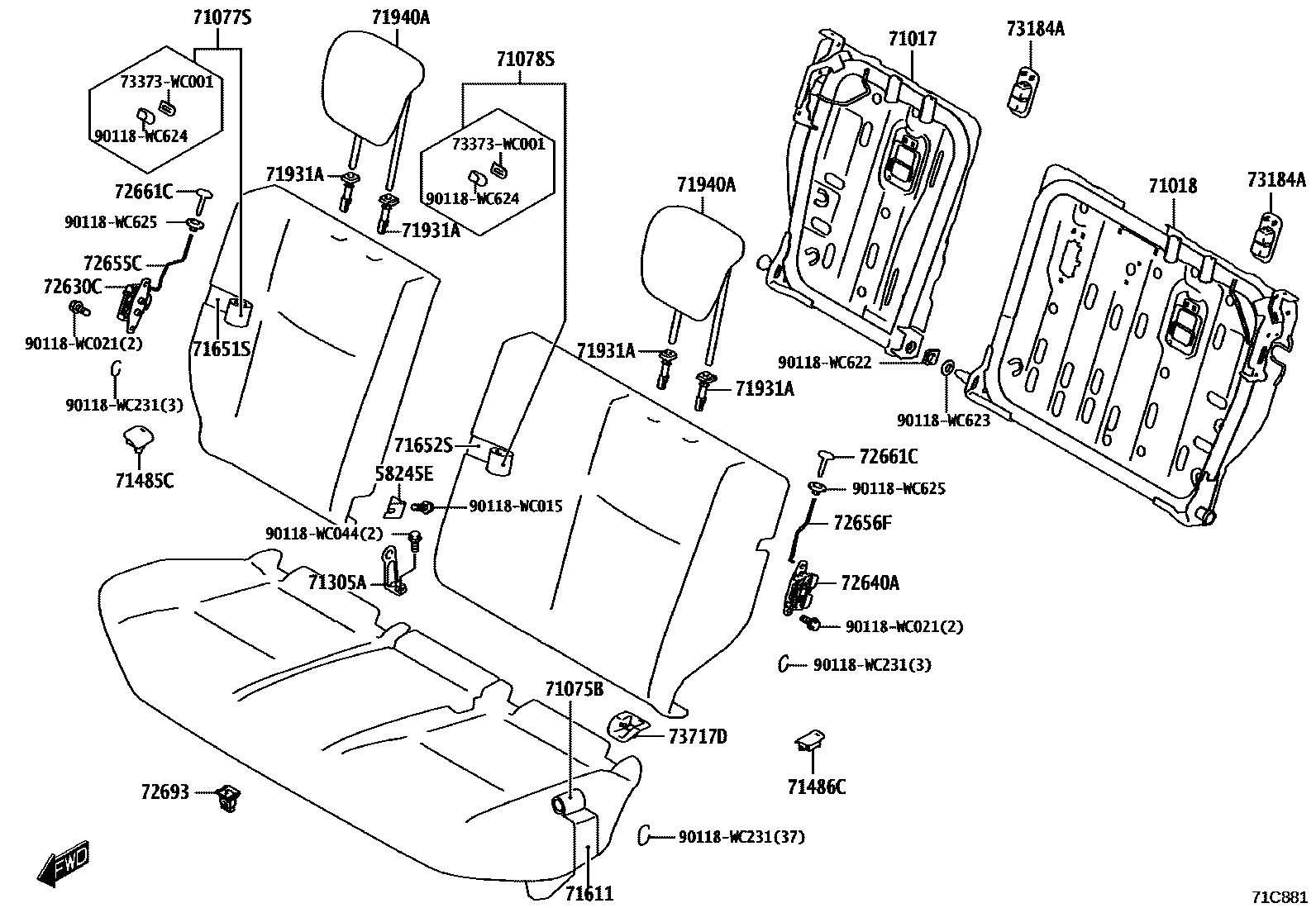

REAR SEAT & SEAT TRACK
58245EBRACKET, REAR SEAT HINGE, CENTER NO,1
main58245-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main71017-WC002iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main71018-WC002iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-WC002iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main71077-WC003iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-WC002iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main71078-WC003iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
71485CCOVER, REAR SEAT HINGE, RH
main72615-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
71486CCOVER, REAR SEAT HINGE, LH
main72616-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
71611PAD, REAR SEAT CUSHION
main71503-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main71651-WC002iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main71652-WC002iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
71931ASUPPORT, REAR SEAT HEADREST
main71930-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
W(LOCK),POS.29; W(LOCK),POS.30; W(LOCK),POS.31; W(LOCK),POS.32; W(LOCK),POS.33; W(LOCK),POS.34; W(LOCK),POS.35; W(LOCK),POS.36; W(LOCK),POS.37; W(LOCK),POS.38; W(LOCK),POS.39; W(LOCK),POS.40; W(LOCK),POS.41; W(LOCK),POS.42; W(LOCK),POS.43; W(LOCK),POS.44; W(LOCK),POS.45; W(LOCK),POS.46; W(LOCK),POS.47; W(LOCK),POS.48; W(LOCK),POS.49; W(LOCK),POS.50; W(LOCK),POS.51; W(LOCK),POS.52; W(LOCK),POS.53; W(LOCK),POS.54; W(LOCK),POS.55; W(LOCK),POS.56
main71931-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
W/O(LOCK),POS.29; W/O(LOCK),POS.30; W/O(LOCK),POS.31; W/O(LOCK),POS.32; W/O(LOCK),POS.33; W/O(LOCK),POS.34; W/O(LOCK),POS.35; W/O(LOCK),POS.36; W/O(LOCK),POS.37; W/O(LOCK),POS.38; W/O(LOCK),POS.39; W/O(LOCK),POS.40; W/O(LOCK),POS.41; W/O(LOCK),POS.42; W/O(LOCK),POS.43; W/O(LOCK),POS.44; W/O(LOCK),POS.45; W/O(LOCK),POS.46; W/O(LOCK),POS.47; W/O(LOCK),POS.48; W/O(LOCK),POS.49; W/O(LOCK),POS.50; W/O(LOCK),POS.51; W/O(LOCK),POS.52; W/O(LOCK),POS.53; W/O(LOCK),POS.54; W/O(LOCK),POS.55; W/O(LOCK),POS.56
71940AHEADREST ASSY, REAR SEAT
main71910-WC001×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main72630-WC002iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main72640-WC002iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
72655CLINK, REAR SEATBACK LOCK CONTROL, NO.1 RH
main72620-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main72620-WC003iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
72656FLINK, REAR SEATBACK LOCK CONTROL, NO.1 LH
main72620-WC002iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
main72620-WC004iK14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.55; POS.56
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72637-WC001iK14B..4FC..L..AFR; K14B..4FC..P..AFR; K14B..4FC..X..AFR; K14B..5F..L..AFR; K14B..5F..P..AFR; K14B..5F..X..AFR202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.53; POS.54
72693HOOK, REAR SEAT CUSHION LOCK
main72693-WC001×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
73184ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main72996-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73733-WC001×4iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
73373WC001COVER, REAR SEAT SHOULDER BELT
main73373-WC001
90118WC015
main90118-WC015
90118WC021
main90118-WC021
90118WC044
main90118-WC044
90118WC231
main90118-WC231
90118WC622
main90118-WC622
90118WC623
main90118-WC623
90118WC624
main90118-WC624
90118WC625
main90118-WC625
31 parts on this diagram · 2 diagrams in section
