INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

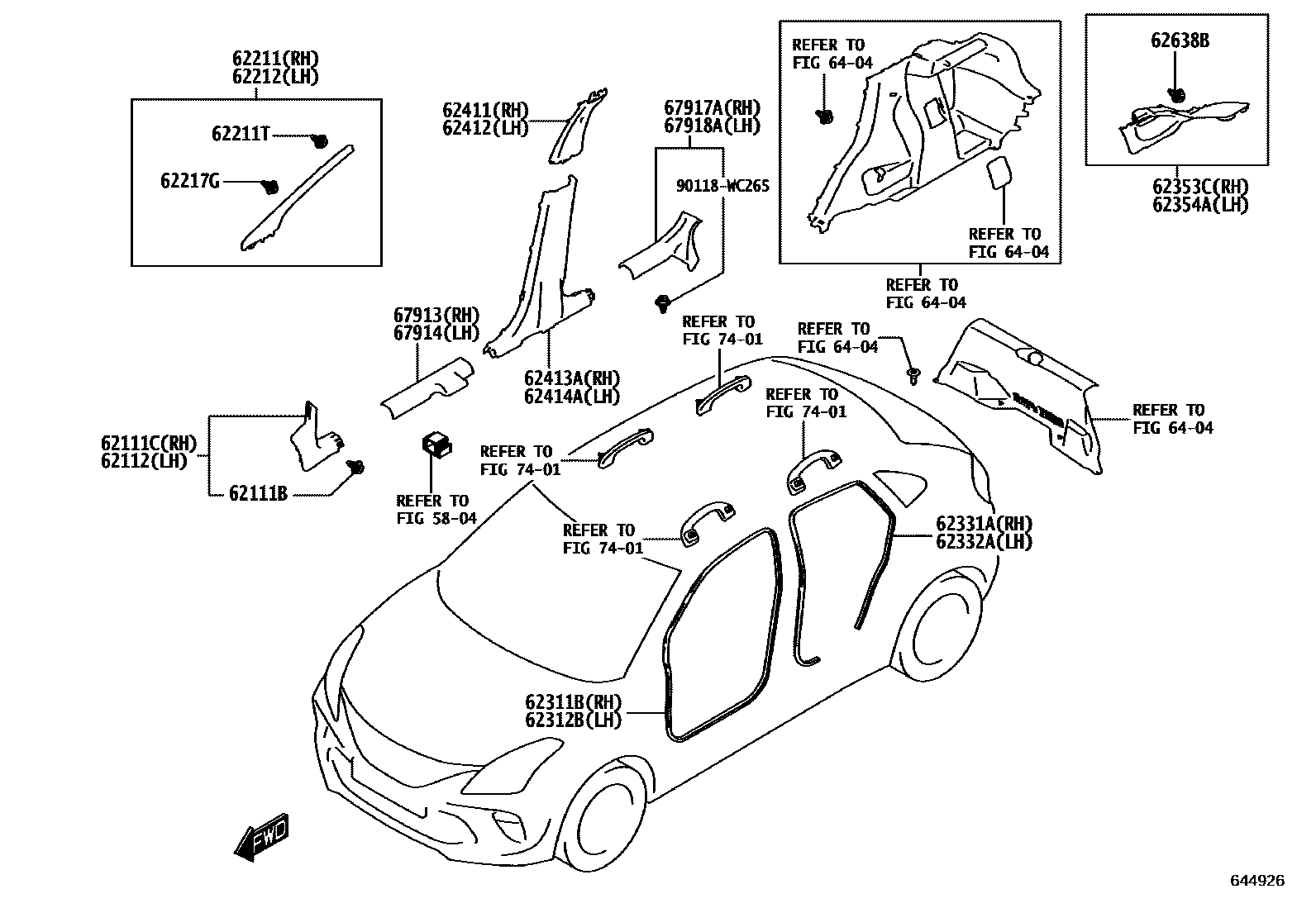

Parts diagram
5804MAT & CARPET
→ Go to FIG 58-04
62111BCLIP(FOR COWL SIDE TRIM)
main90118-WC265i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62111CBOARD, COWL SIDE TRIM, RH
main62111-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62112BOARD, COWL SIDE TRIM, LH
main62112-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62211GARNISH, FRONT PILLAR, RH
main62211-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90118-WC265×2i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62212GARNISH, FRONT PILLAR, LH
main62212-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62217GCLIP, FRONT PILLAR GARNISH
main90118-WC250i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62311-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62331-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62353CTRIM, QUARTER WINDOW INSIDE, RH
main62471-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
main62471-WC002i202007
POS.33; POS.34; POS.47; POS.50
62354ATRIM, QUARTER WINDOW INSIDE, LH
main62472-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
main62472-WC002i202007
POS.33; POS.34; POS.47; POS.50
62411GARNISH, CENTER PILLAR, RH
main62411-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
main62411-WC002i202007
POS.33; POS.34; POS.47; POS.50
62412GARNISH, CENTER PILLAR, LH
main62412-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.48; POS.49; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
main62412-WC002i202007
POS.33; POS.34; POS.47; POS.50
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
62638BCLIP
main90118-WC265×6i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
6404DECK BOARD & DECK TRIM COVER
→ Go to FIG 64-04
67913PLATE, FRONT DOOR SCUFF, RH
main67913-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
67914PLATE, FRONT DOOR SCUFF, LH
main67914-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
67917APLATE, REAR DOOR SCUFF, RH
main67917-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
67918APLATE, REAR DOOR SCUFF, LH
main67918-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
7401ARMREST & VISOR
→ Go to FIG 74-01
90118WC265
main90118-WC265

26 parts on this diagram · 2 diagrams in section
