Toyota 121220 — MAT & CARPET

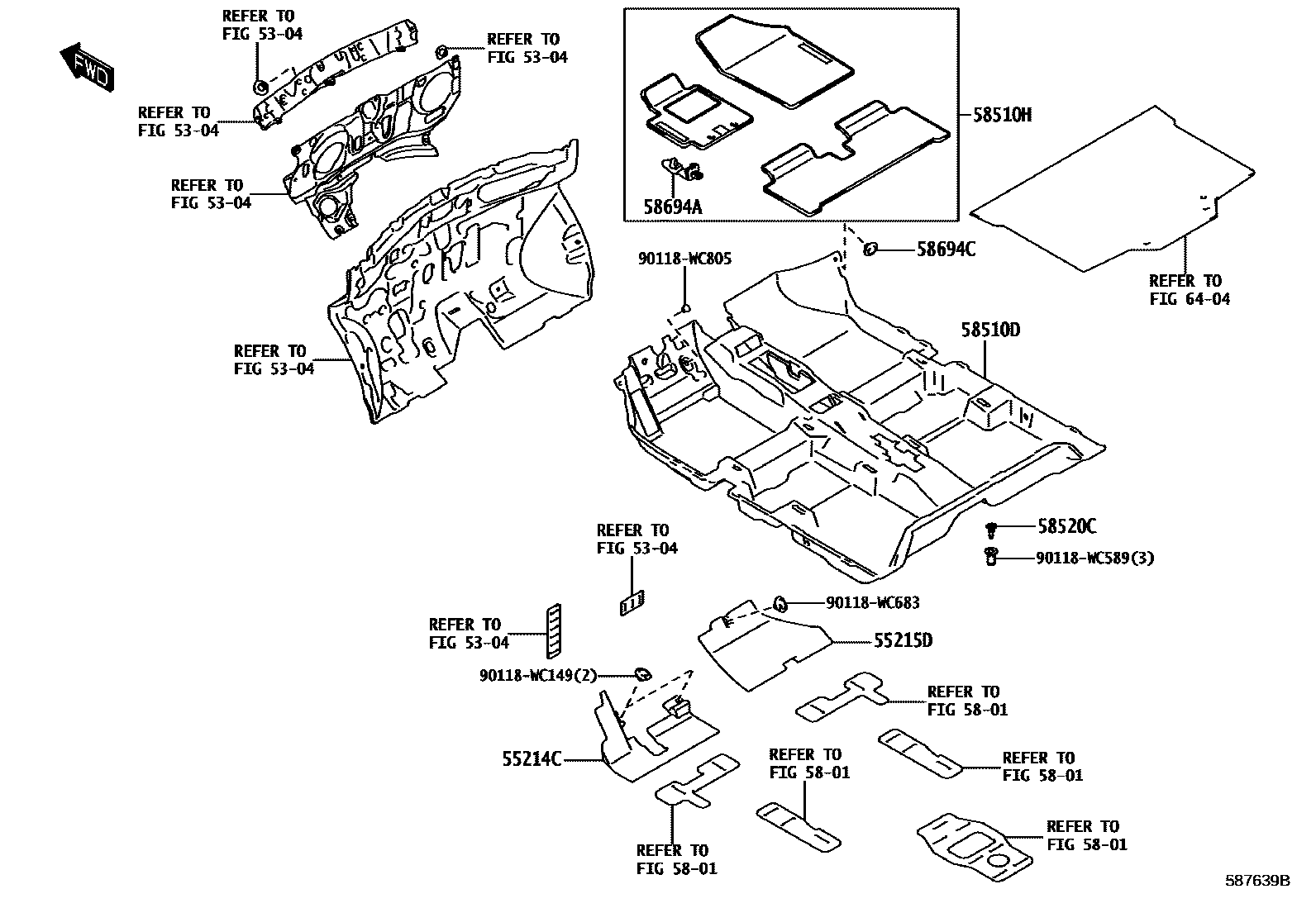

Parts diagram
5304FRONT FENDER APRON & DASH PANEL
→ Go to FIG 53-04
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
5801FLOOR PAN & LOWER BACK PANEL
→ Go to FIG 58-01
58510DCARPET ASSY, FLOOR, FRONT
58510HMAT ASSY, FLOOR
58520CCLIP(FOR FRONT FLOOR CARPET)
58694APLATE, MAT SET, UPPER
58694CGROMMET(FOR MAT SET PLATE)
6404DECK BOARD & DECK TRIM COVER
→ Go to FIG 64-04
90118WC149
90118-WC149
90118WC589
90118-WC589
90118WC683
90118-WC683
90118WC805
90118-WC805

14 parts on this diagram · 3 diagrams in section

MAT & CARPET for Toyota 121220

This section contains 17 genuine Toyota parts for the MAT & CARPET system of the Toyota 121220. Key components include: FRONT FENDER APRON & DASH PANEL, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, FLOOR PAN & LOWER BACK PANEL, CARPET ASSY, FLOOR, FRONT.
