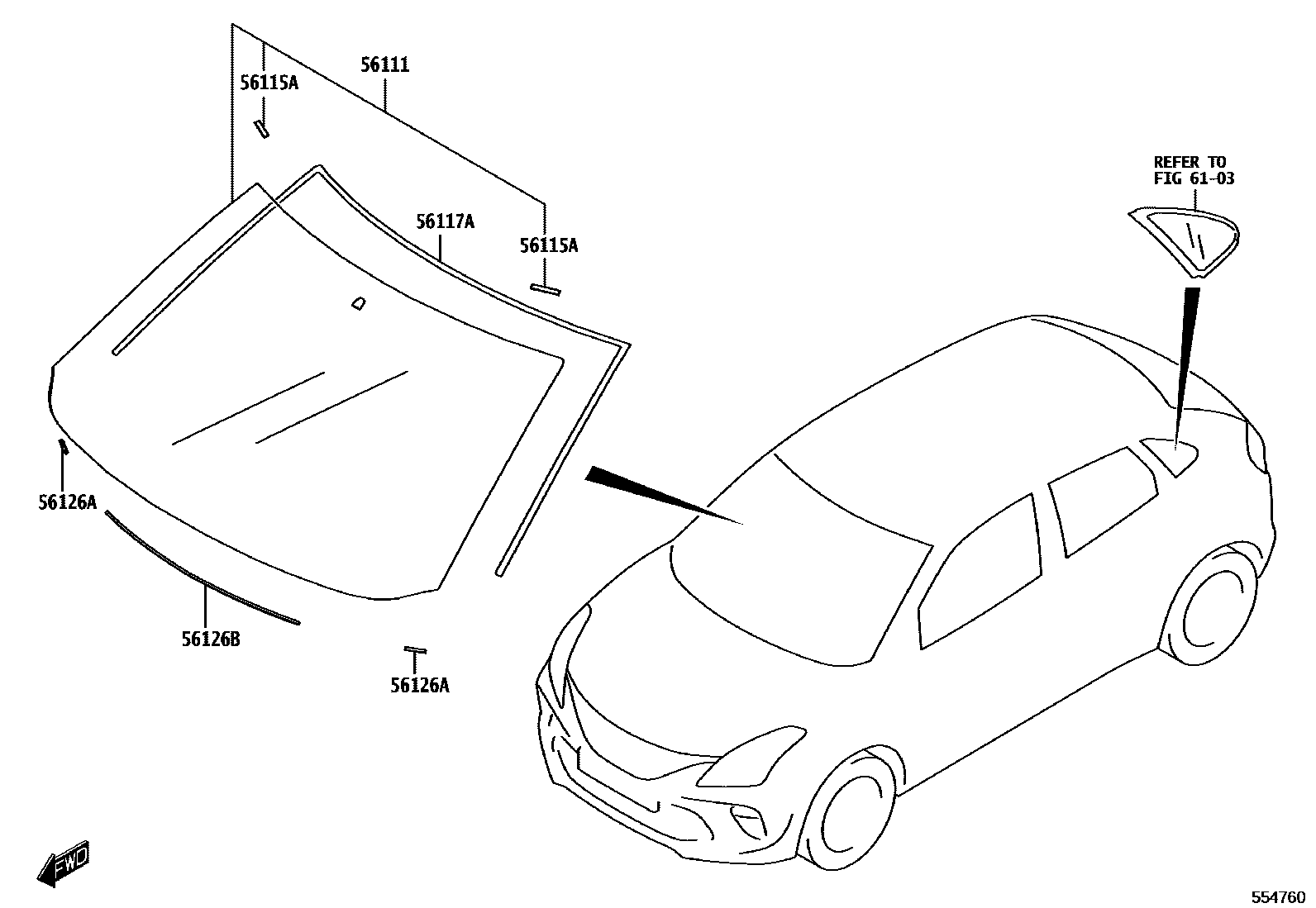

COWL PANEL & WINDSHIELD GLASS
56111GLASS, WINDSHIELD
main56101-WC016iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
main56101-WC017iK14B..4FC..L..SA; K14B..4FC..P..SA; K14B..4FC..X..SA; K14B..5F..L..SA; K14B..5F..P..SA; K14B..5F..X..SA202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
56115ASTOPPER, WINDSHIELD GLASS, NO.1
main56115-WC008×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
56117ADAM, WINDOW GLASS ADHESIVE
main56117-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
56126ASPACER, WINDSHIELD GLASS, NO.1
main56116-WC003×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
56126BSPACER, WINDSHIELD GLASS, NO.2
main56116-WC004iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
6103QUARTER WINDOW
6 parts on this diagram · 5 diagrams in section
