INSTRUMENT PANEL & GLOVE COMPARTMENT

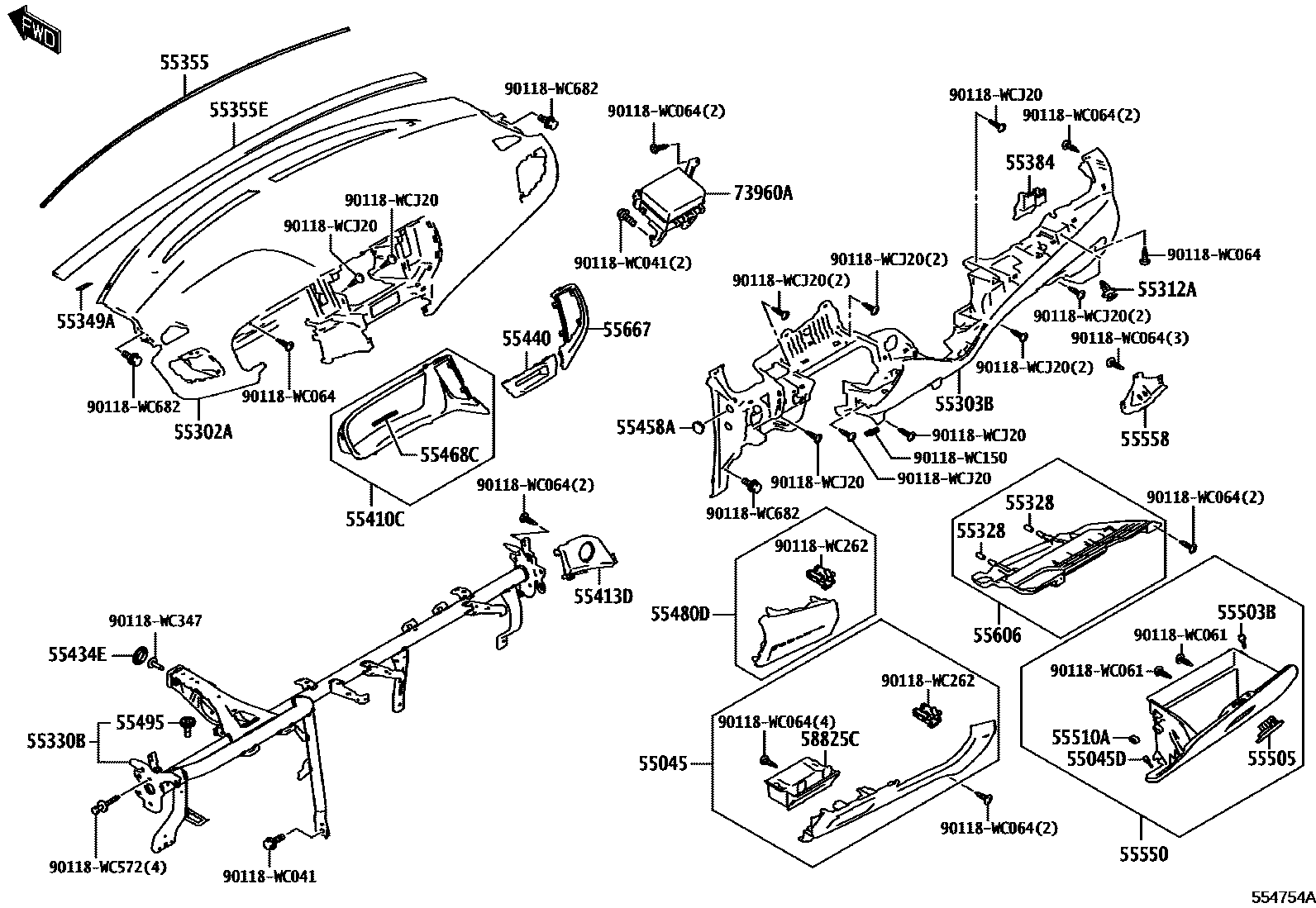

Parts diagram
55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
main55606-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55606-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55045DCUSHION, GLOVE COMPARTMENT
main55557-WC003×2i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55302-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55303-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55312ACLIP, INSTRUMENT PANEL
main90118-WC255i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55328PIN, INSTRUMENT PANEL, NO.1
main90118-WC571×2i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55330-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55349ACUSHION, INSTRUMENT PANEL
main55356-WC001×5i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55355ECUSHION, INSTRUMENT PANEL
main55355-WC002i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55384COVER, BASE SWITCH HOLE
main55459-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55459-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
main55410-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55410-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
main55446-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.45; POS.46; POS.48; POS.49; POS.53; POS.54; POS.55; POS.56
main55446-WC003i202007
POS.43; POS.44; POS.47; POS.50
55434ECAP
main90118-WC203i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55440GARNISH, INSTRUMENT PANEL, CENTER
main55446-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55458ACAP, INSTRUMENT PANEL SAFETY PAD
main55545-WC001×3i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1
main55357-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55480DPANEL ASSY, INSTRUMENT PANEL FINISH, LWR
main55045-WC001i202007
POS.33; POS.34
main55045-WC002i202007
POS.29; POS.30; POS.31; POS.32; POS.51; POS.52
main55045-WC003i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55495CUSHION, INSTRUMENT PANEL REINFORCEMENT
main90118-WC220i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55503BCUSHION(FOR GLOVE COMPARTMENT)
main55557-WC002×2i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
main55560-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
main55557-WC001×2i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
55550DOOR ASSY, GLOVE COMPARTMENT
main55550-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55550-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
main55331-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55331-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
main55607-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55607-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
55667GARNISH, INSTRUMENT PANEL REGISTER BEZEL
main55420-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main55420-WC002i202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
58825CPOCKET, CONSOLE BOX
main55441-WC001i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-WC011i202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
90118WC041
main90118-WC041
90118WC061
main90118-WC061
90118WC064
main90118-WC064
90118WC150
main90118-WC150
90118WC262
main90118-WC262
90118WC347
main90118-WC347
90118WC572
main90118-WC572
90118WC682
main90118-WC682
90118WCJ20
main90118-WCJ20

37 parts on this diagram · 6 diagrams in section
