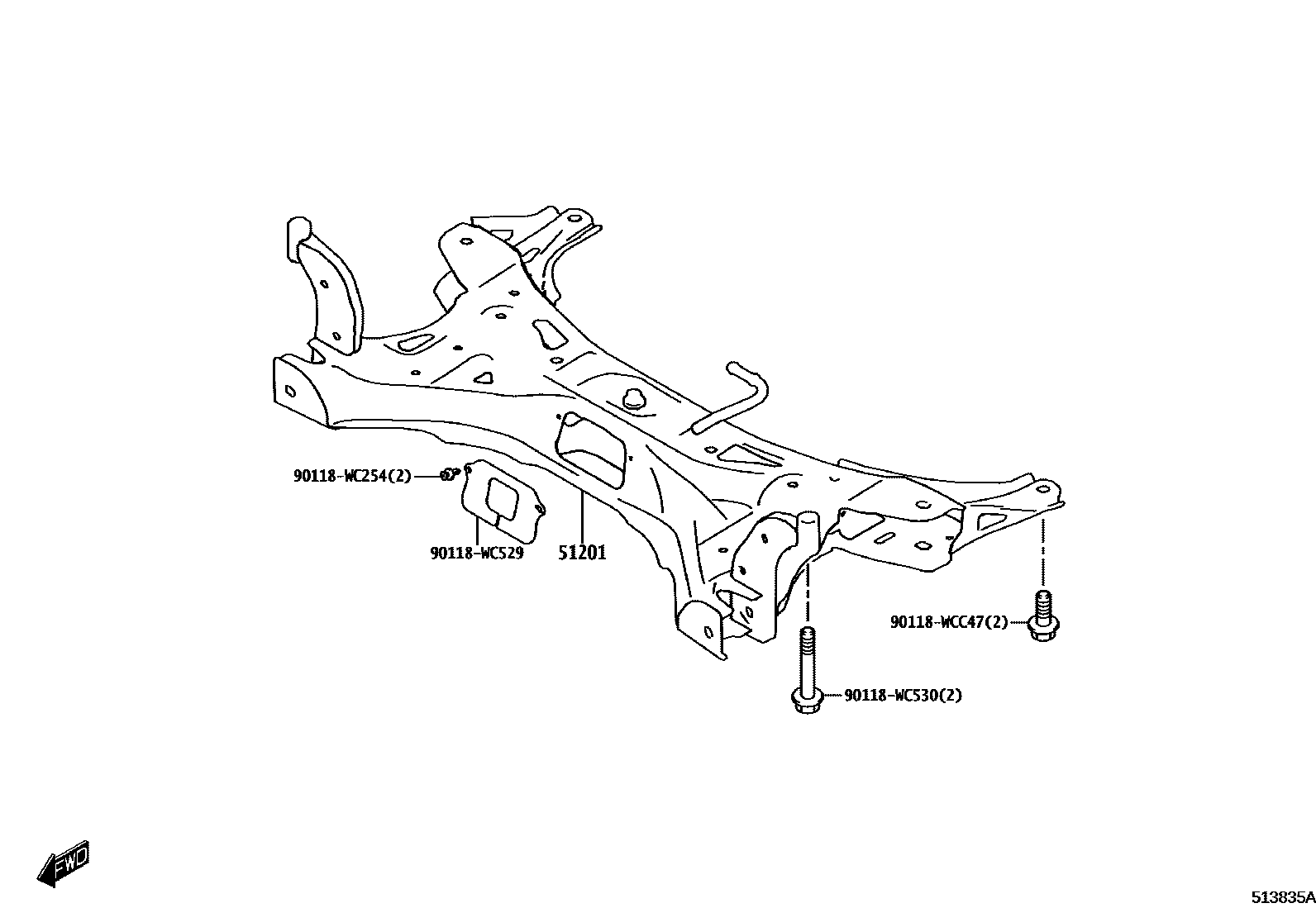

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
main51201-WC008iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
90118WC254
main90118-WC254
90118WC529
main90118-WC529
90118WC530
main90118-WC530
90118WCC47
main90118-WCC47
5 parts on this diagram · 2 diagrams in section
