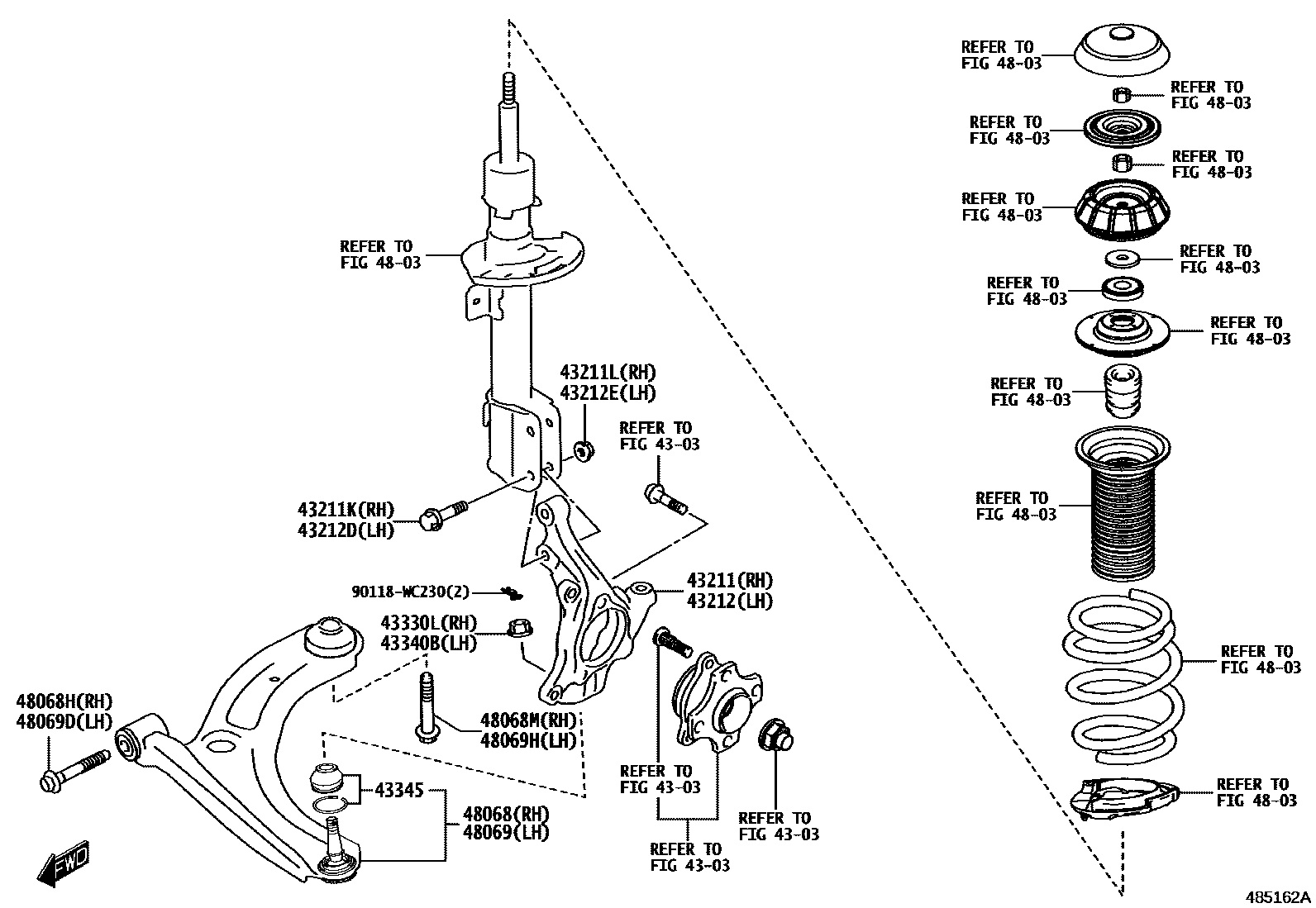

FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-WC002

main90118-WC488

main90118-WCG05

43211KBOLT (FOR STEERING KNUCKLE RH)

43211LNUT (FOR STEERING KNUCKLE RH)

43212KNUCKLE, STEERING, LH

main43212-WC002

main90118-WC488

main90118-WCG05

43212DBOLT (FOR STEERING KNUCKLE LH)

43212ENUT (FOR STEERING KNUCKLE LH)

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

43345COVER, LOWER BALL JOINT DUST

main43345-WC003

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-WC004

main48068-WC006

main90118-WC530

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-WC004

main48069-WC006

main90118-WC530

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

90118WC230

main90118-WC230

18 parts on this diagram · 1 diagram in section
