REAR DISC BRAKE CALIPER & DUST COVER

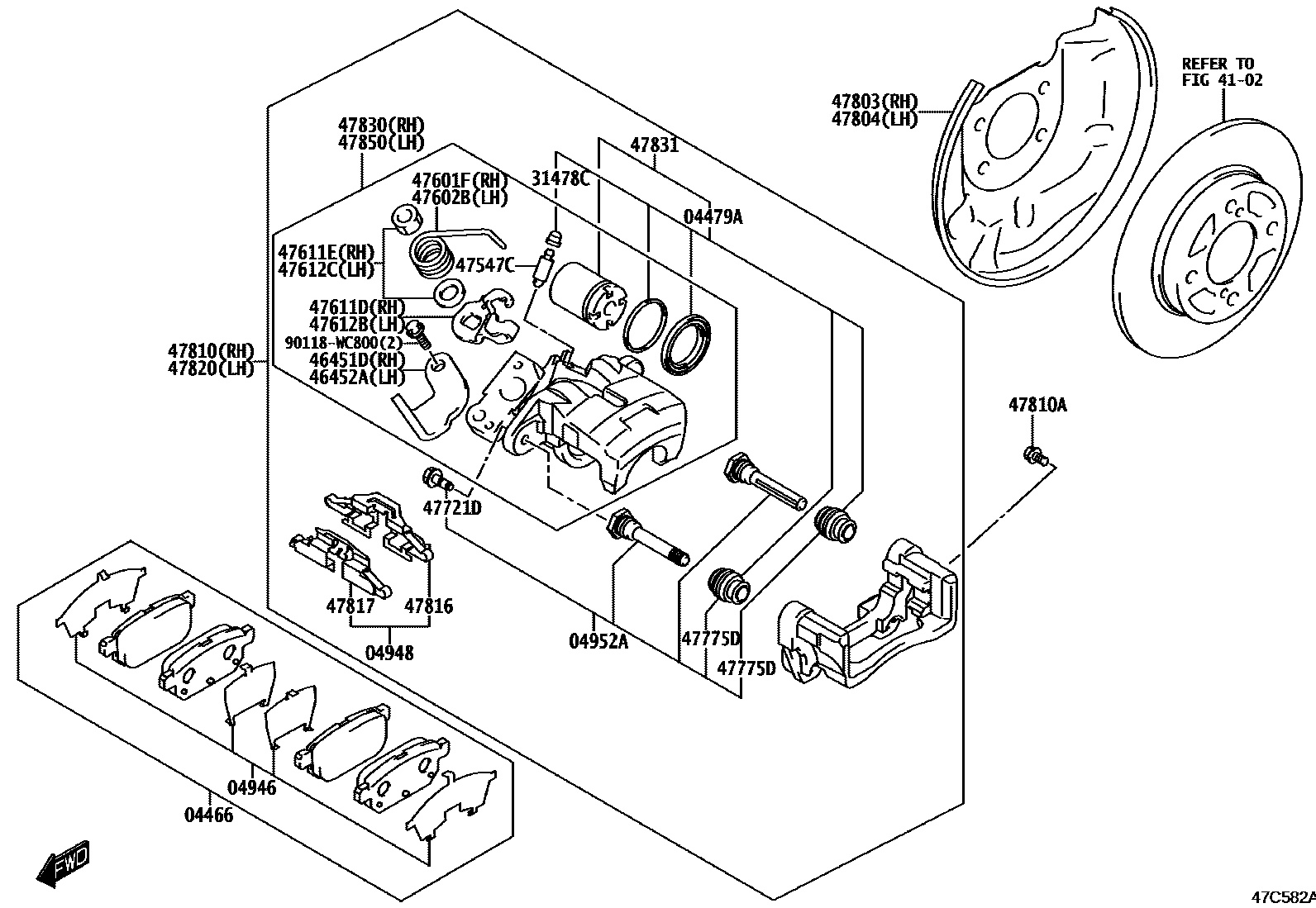

Parts diagram
04466PAD KIT, DISC BRAKE, REAR
main04466-WC001i202007
POS.43; POS.44; POS.47; POS.50
main04466-WC002i202007
POS.33; POS.34
04479ACYLINDER KIT, DISC BRAKE, REAR
main04479-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
main04946-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
04948FITTING KIT, DISC BRAKE, REAR
main04948-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE
main47835-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
main31478-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
4102REAR AXLE SHAFT & HUB
→ Go to FIG 41-02
46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH
main46523-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH
main46526-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
main47547-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)
main46295-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)
main46295-WC002i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47611DLEVER, PARKING BRAKE DISC, RH
main47611-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47611ENUT, FLANGE(FOR PARKING BRAKE LEVER RH)
main90118-WC801i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47612BLEVER, PARKING BRAKE DISC, LH
main47612-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47612CNUT, FLANGE(FOR PARKING BRAKE LEVER LH)
main90118-WC801i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
main90118-WC561×4i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
main47741-WC003×4i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
main47803-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
main47803-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47810CALIPER ASSY, DISC BRAKE, REAR RH
main47810-WC002i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47810ABOLT, HEXAGON(FOR REAR CALIPER)
main90118-WC679×4i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
main47816-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)
main47817-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47820CALIPER ASSY, DISC BRAKE, REAR LH
main47820-WC002i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47830CYLINDER ASSY, DISC BRAKE, REAR RH
main47830-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47831PISTON, REAR DISC BRAKE
main47831-WC001×2i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
47850CYLINDER ASSY, DISC BRAKE, REAR LH
main47850-WC001i202007
POS.33; POS.34; POS.43; POS.44; POS.47; POS.50
90118WC800
main90118-WC800

29 parts on this diagram · 1 diagram in section
