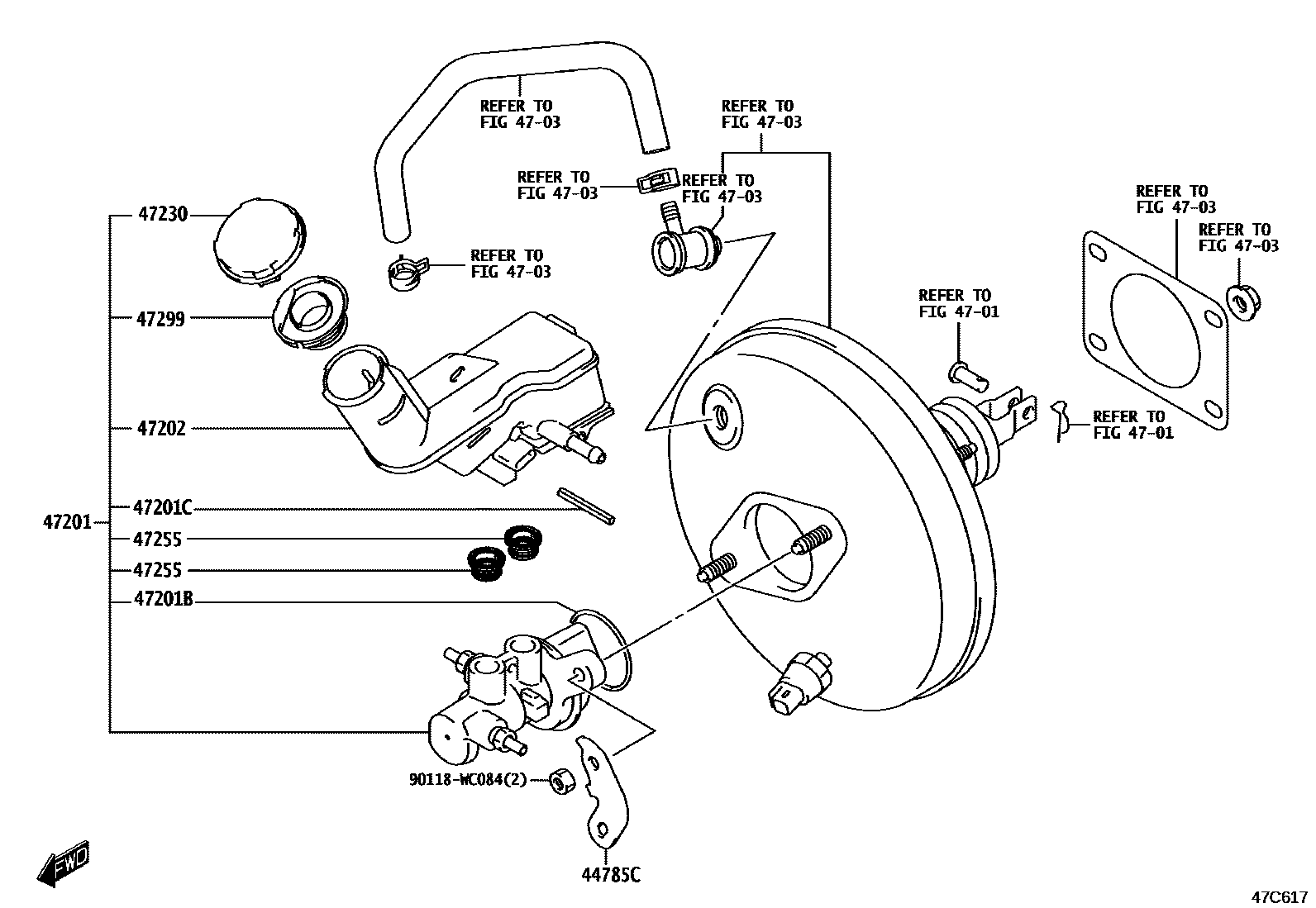

BRAKE MASTER CYLINDER
44785CGASKET, BRAKE BOOSTER
main47758-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD202007
POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.54; POS.56
4701BRAKE PEDAL & BRACKET
4703BRAKE BOOSTER & VACUUM TUBE
47201CYLINDER SUB-ASSY, BRAKE MASTER
main47201-WC002iK14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.53; POS.55
POS.29; POS.30; POS.33; POS.51
POS.31; POS.32; POS.34; POS.52
main47201-WC005iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD202007
POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.54; POS.56
47201BRING, O(FOR BRAKE MASTER CYLINDER)
main90118-WC543iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47201CRING PIN, BRAKE MASTER CYLINDER
main90118-WC542iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
POS.31; POS.32; POS.34; POS.52
main47220-WC003iK14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.53; POS.55
POS.29; POS.30; POS.33; POS.51
main47220-WC005iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD202007
POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.54; POS.56
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
main47230-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47255GROMMET, MASTER CYLINDER RESERVOIR
main90118-WC541×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
main47299-WC001iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
90118WC084
main90118-WC084
11 parts on this diagram · 3 diagrams in section
