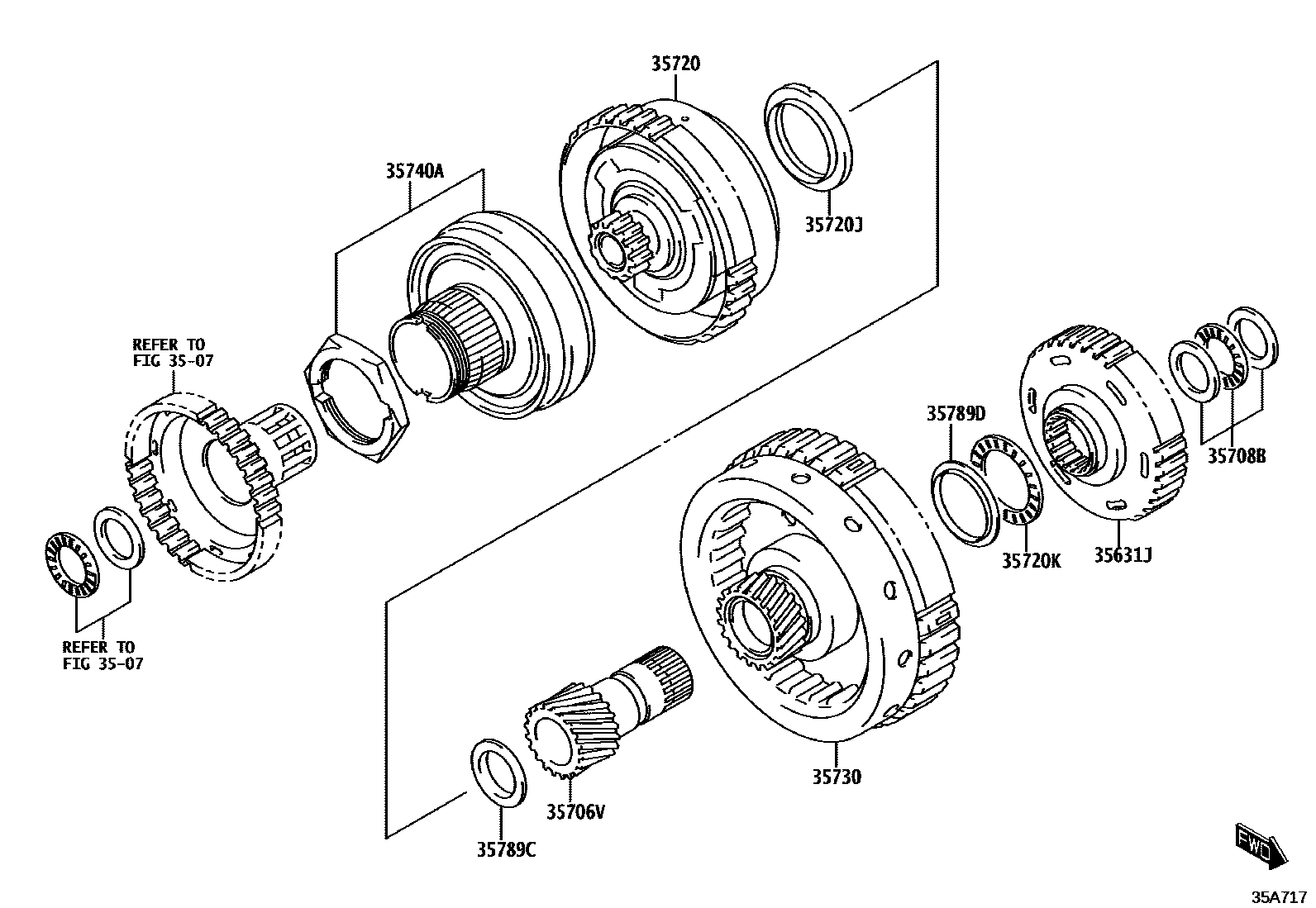

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35631JHUB, FORWARD CLUTCH, NO.1

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35706VGEAR SUB ASSY, PLANETARY SUN

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35720GEAR ASSY, FRONT PLANETARY

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35730GEAR ASSY, REAR PLANETARY SUN

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35740AGEAR ASSY,FRONT PLANETARY RING

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

11 parts on this diagram · 1 diagram in section
