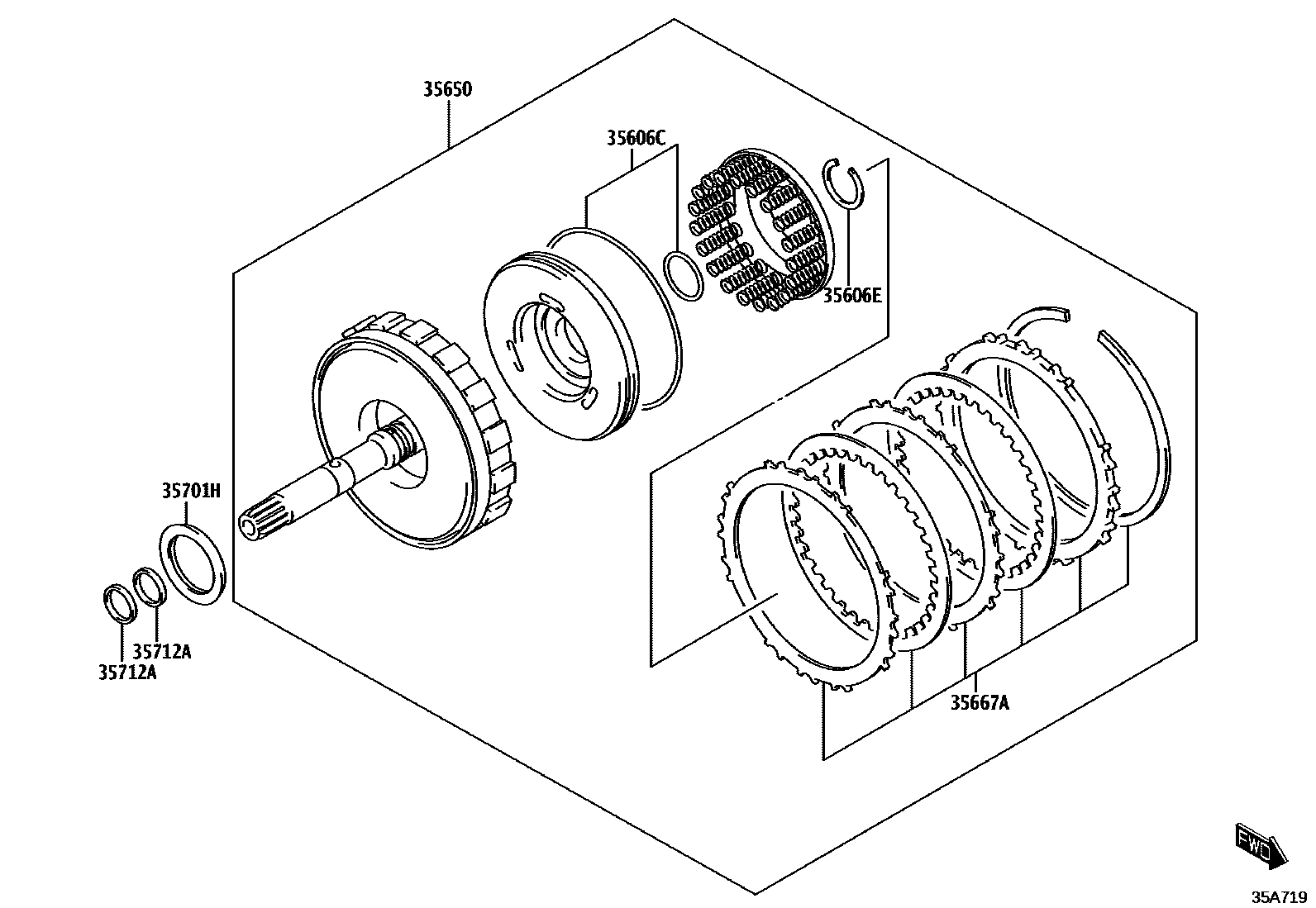

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35606CRING, O (FOR DIRECT CLUTCH PISTON)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35650CLUTCH ASSY, REAR MULTIPLE DISC

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35667ADISK, DIRECT CLUTCH

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

35712ARING, INPUT SHAFT OIL SEAL

main35712-WC001×2i202007

POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56

6 parts on this diagram · 3 diagrams in section
