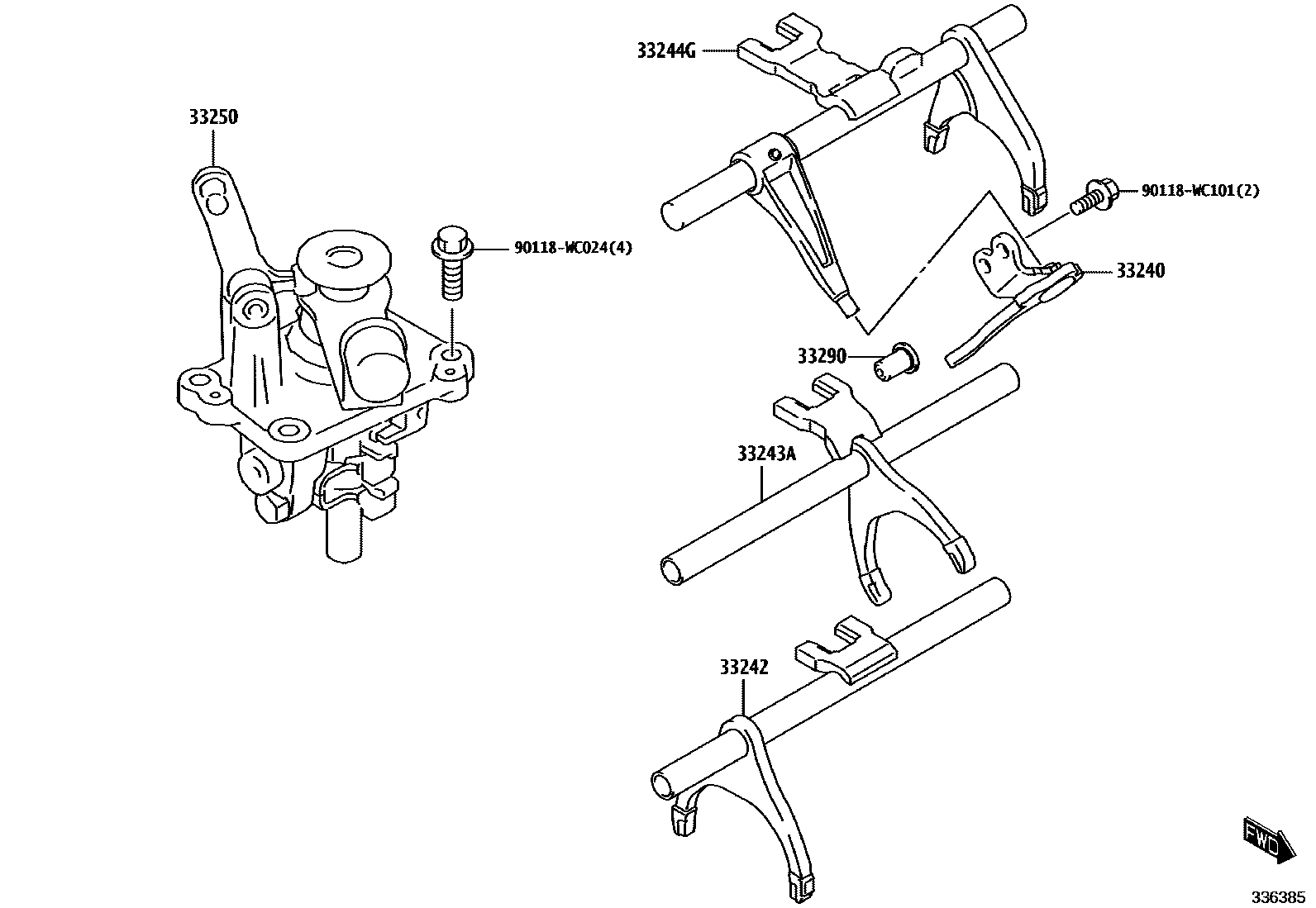

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33240BRACKET ASSY, REVERSE SHIFT ARM
main33221-WC001iK14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
33242SHAFT, GEAR SHIFT FORK, NO.1
main33205-WC002iK14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
33243ASHAFT, GEAR SHIFT FORK, NO.2
main33243-WC001iK14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
33244GSHAFT, GEAR SHIFT FORK, NO.3
main33244-WC001iK14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
33250SHAFT ASSY, SHIFT & SELECT LEVER
main33250-WC001iK14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
33290BALL ASSY, LOCK, NO.1
main33223-WC001iK14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.33; POS.35; POS.36; POS.37; POS.38; POS.43; POS.45; POS.46; POS.47; POS.51; POS.53; POS.55
90118WC024
main90118-WC024
90118WC101
main90118-WC101
8 parts on this diagram · 1 diagram in section
