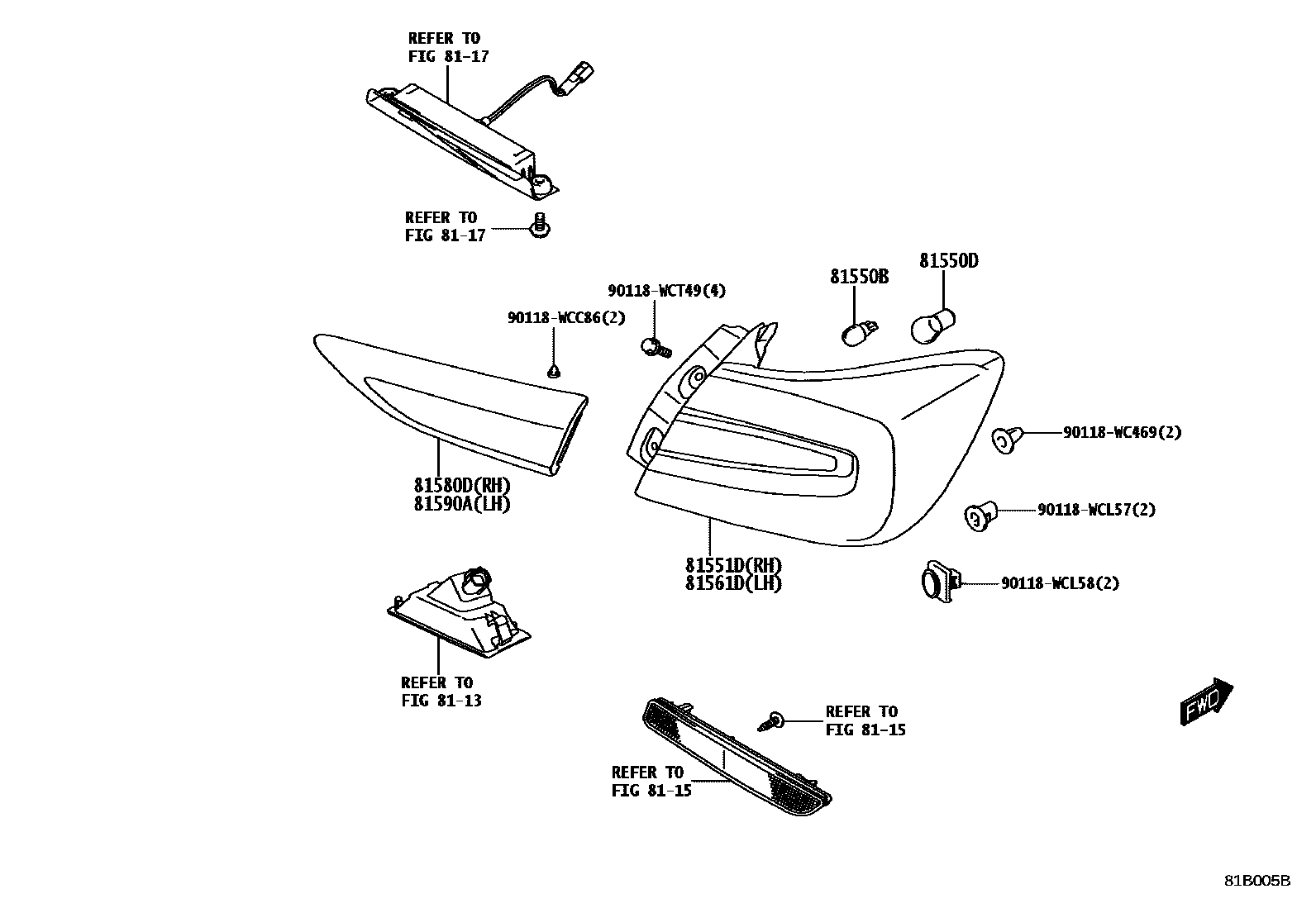

REAR COMBINATION LAMP
8113REAR LICENSE PLATE LAMP
8115REFLEX REFLECTOR
8117CENTER STOP LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
12V 16W,POS.1; 12V 16W,POS.101; 12V 16W,POS.2; 12V 16W,POS.20; 12V 16W,POS.25; 12V 16W,POS.26; 12V 16W,POS.3; 12V 16W,POS.31; 12V 16W,POS.36; 12V 16W,POS.38; 12V 16W,POS.45; 12V 16W,POS.46; 12V 16W,POS.51; 12V 16W,POS.56; 12V 16W,POS.57; 12V 16W,POS.62; 12V 16W,POS.70; 12V 16W,POS.75; 12V 16W,POS.79; 12V 16W,POS.82; 12V 16W,POS.83; 12V 16W,POS.88; 12V 16W,POS.95; 12V 16W,POS.96
81550DBULB(FOR REAR COMBINATION LAMP)
12V 21W,POS.1; 12V 21W,POS.101; 12V 21W,POS.2; 12V 21W,POS.20; 12V 21W,POS.25; 12V 21W,POS.26; 12V 21W,POS.3; 12V 21W,POS.31; 12V 21W,POS.36; 12V 21W,POS.38; 12V 21W,POS.45; 12V 21W,POS.46; 12V 21W,POS.51; 12V 21W,POS.56; 12V 21W,POS.57; 12V 21W,POS.62; 12V 21W,POS.70; 12V 21W,POS.75; 12V 21W,POS.79; 12V 21W,POS.82; 12V 21W,POS.83; 12V 21W,POS.88; 12V 21W,POS.95; 12V 21W,POS.96
81551DLENS & BODY, REAR COMBINATION LAMP, RH
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
81561DLENS & BODY, REAR COMBINATION LAMP, LH
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
81580DLAMP ASSY, REAR, RH
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
81590ALAMP ASSY, REAR, LH
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
90118WC469
main90118-WC469
90118WCC86
main90118-WCC86
90118WCL57
main90118-WCL57
90118WCL58
main90118-WCL58
90118WCT49
main90118-WCT49
14 parts on this diagram · 1 diagram in section
