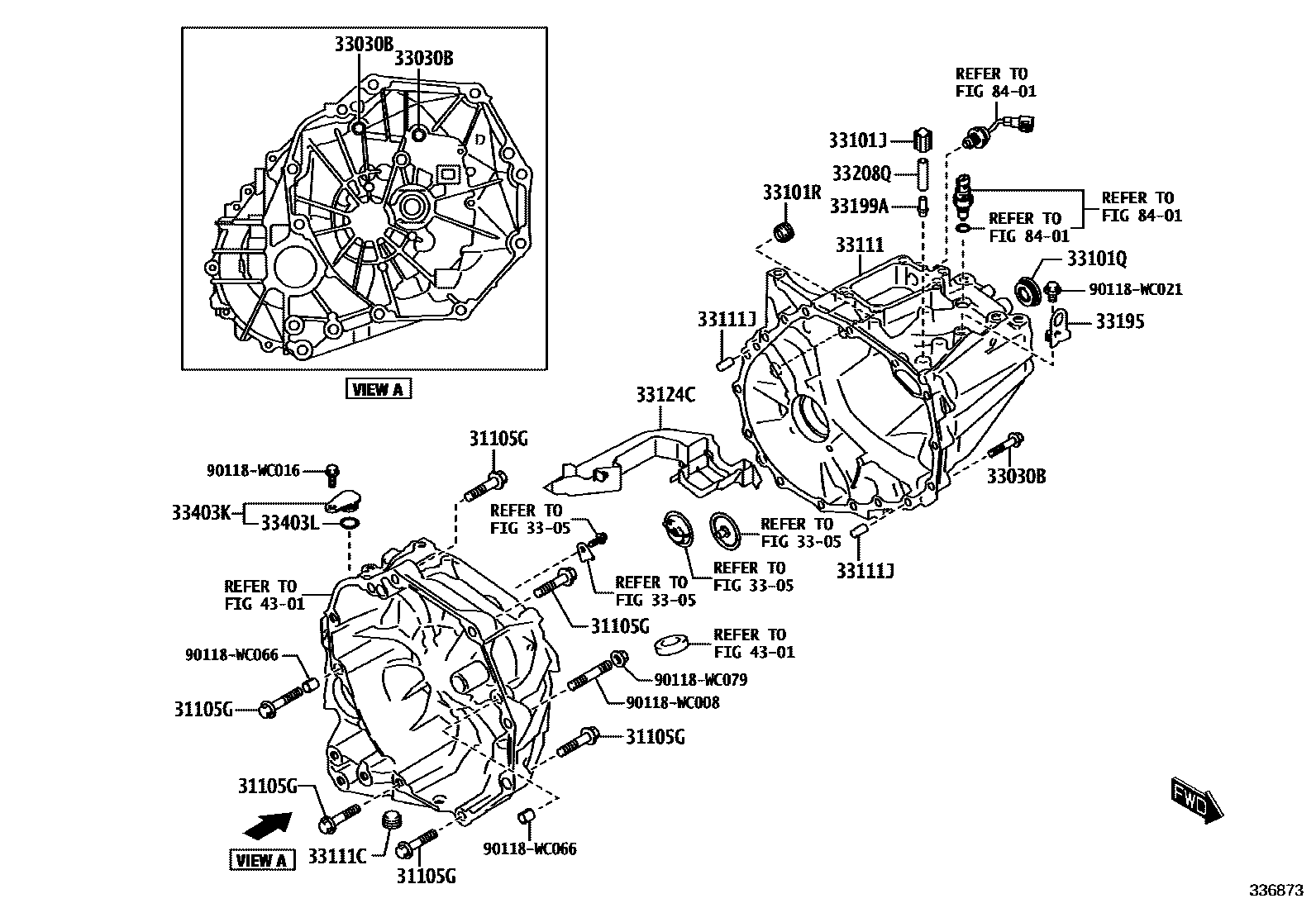

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90118-WC658×6iK12N24..5F..MID..GAS202202

POS.2

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90118-WC027×16iK12N24..5F..MID..GAS202202

POS.2

3305

33101JPLUG, BREATHER

main90118-WC424iK12N24..5F..MID..GAS202202

POS.2

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90118-WC397iK12N24..AMT..PREM202203

POS.63

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90118-WC199iK12N24..AMT..PREM202203

POS.63

sub90118-WCU36

33111CASE, MANUAL TRANSMISSION

main90118-WCG33iK12N24..HIGH..CNG202210

POS.43

sub90118-WC395

main90118-WCG34iK12N24..5F..MID..GAS202202

POS.2

sub33111-WC021

main90118-WCT54iK12N24..AMT..PREM202203

POS.63

sub33111-WC023

33111CPLUG(FOR TRANSMISSION CASE)

main90118-WC200iK12N24..AMT..PREM202203

POS.63

sub90118-WCU53

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90118-WC066×2iK12N24..AMT..PREM202203

POS.63

main90118-WC303×2iK12N24..5F..PREM202203

POS.99

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-WC005iK12N24..AMT..PREM202203

POS.63

33195HANGER, TRANSMISSION CASE, NO.1

main33195-WC002iK12N24..5F..MID..GAS202202

POS.2

main33195-WC006iK12N24..AMT..PREM202203

POS.63

33199APROTECTOR, BREATHER

main90118-WC403iK12N24..5F..PREM202203

POS.99

main90118-WCG36iK12N24..AMT..PREM202203

POS.63

33208QHOSE, BREATHER

main90118-WCG23iK12N24..5F..MID..GAS202202

POS.2

main90118-WCG37iK12N24..AMT..PREM202203

POS.63

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-WC001iK12N24..5F..MID..GAS202202

POS.2

33403LRING, O

main90118-WC214iK12N24..5F..MID..GAS202202

POS.2

4301

8401

90118WC008

main90118-WC008

90118WC016

main90118-WC016

90118WC021

main90118-WC021

90118WC066

main90118-WC066

90118WC079

main90118-WC079

22 parts on this diagram · 3 diagrams in section
