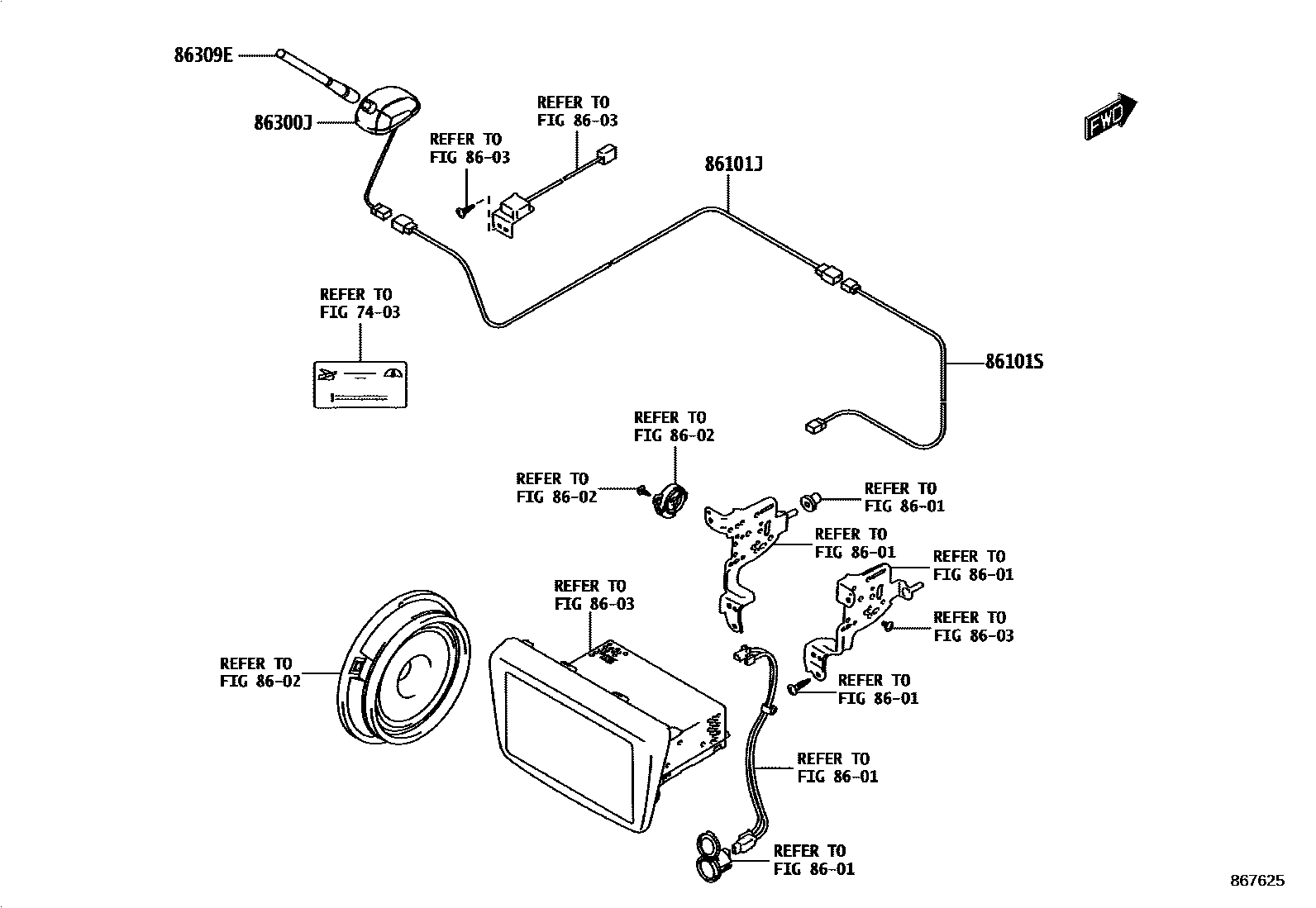

ANTENNA

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8602SPEAKER

→ Go to FIG 86-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

86101SCORD SUB-ASSY, ANTENNA

main86101-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

86300JANTENNA ASSY, ROOF

main86300-WC004iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-WC003iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

8 parts on this diagram · 1 diagram in section
