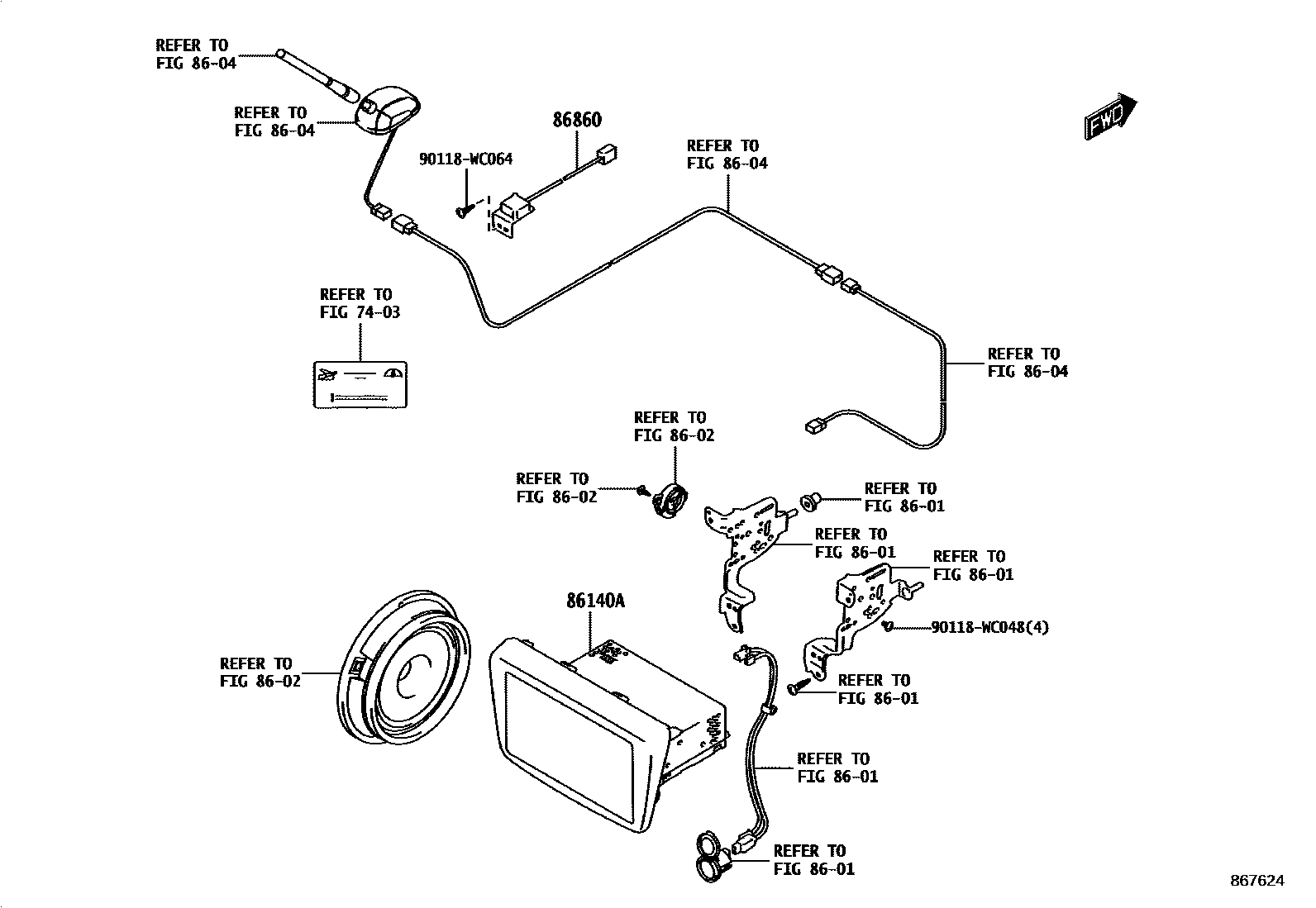

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8602SPEAKER

→ Go to FIG 86-02

8604ANTENNA

→ Go to FIG 86-04

86140ARECEIVER ASSY, RADIO & DISPLAY

main86120-WC026iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

86860ANTENNA ASSY, NAVIGATION

main86860-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC048

main90118-WC048

90118WC064

main90118-WC064

8 parts on this diagram · 2 diagrams in section
