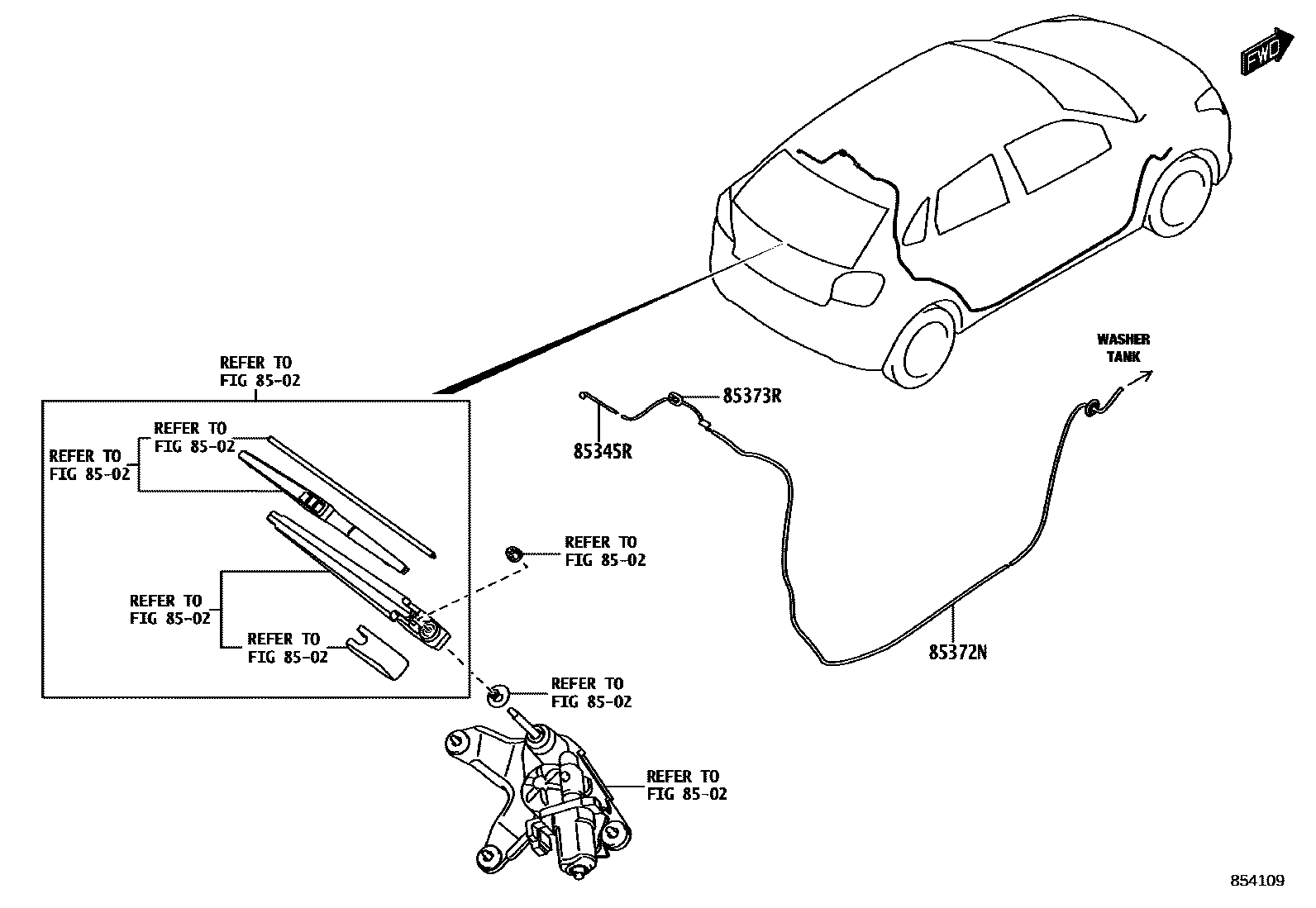

REAR WASHER

0001 1 0002 1

8502REAR WIPER

→ Go to FIG 85-02

85345RNOZZLE, REAR WASHER

main90118-WC484iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90118-WC482iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90118-WC483iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

4 parts on this diagram · 2 diagrams in section
