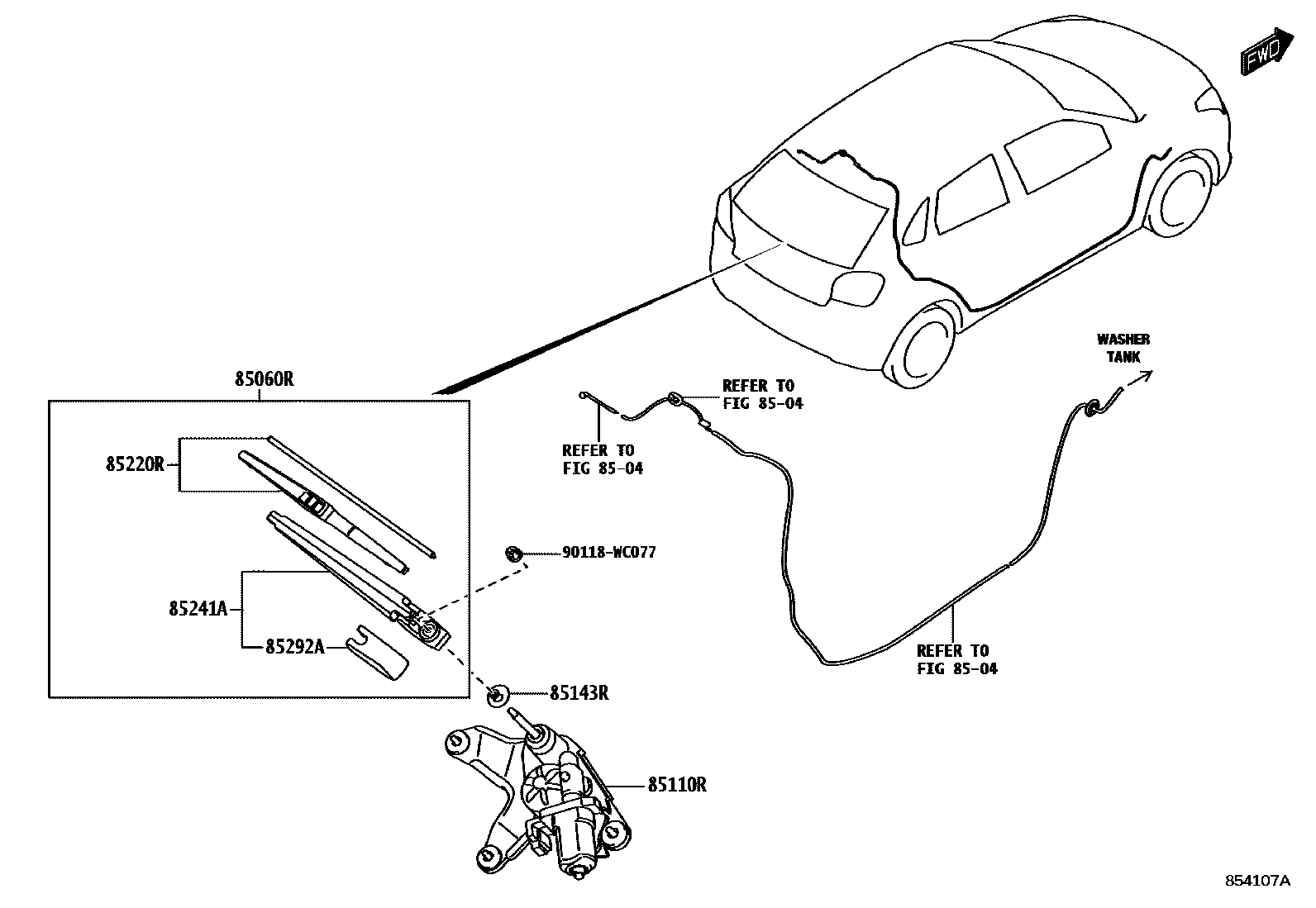

REAR WIPER

8504REAR WASHER

→ Go to FIG 85-04

85060RARM AND BLADE ASSY, REAR WIPER

main85240-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85110RMOTOR ASSY, REAR WIPER

main85130-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85143RGROMMET, REAR WIPER MOTOR

main85143-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85220RBLADE ASSY, REAR WIPER

main85242-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85241AARM, REAR WIPER

main85241-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

85292ACAP, REAR WIPER ARM HEAD

main85292-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC077

main90118-WC077

8 parts on this diagram · 1 diagram in section
