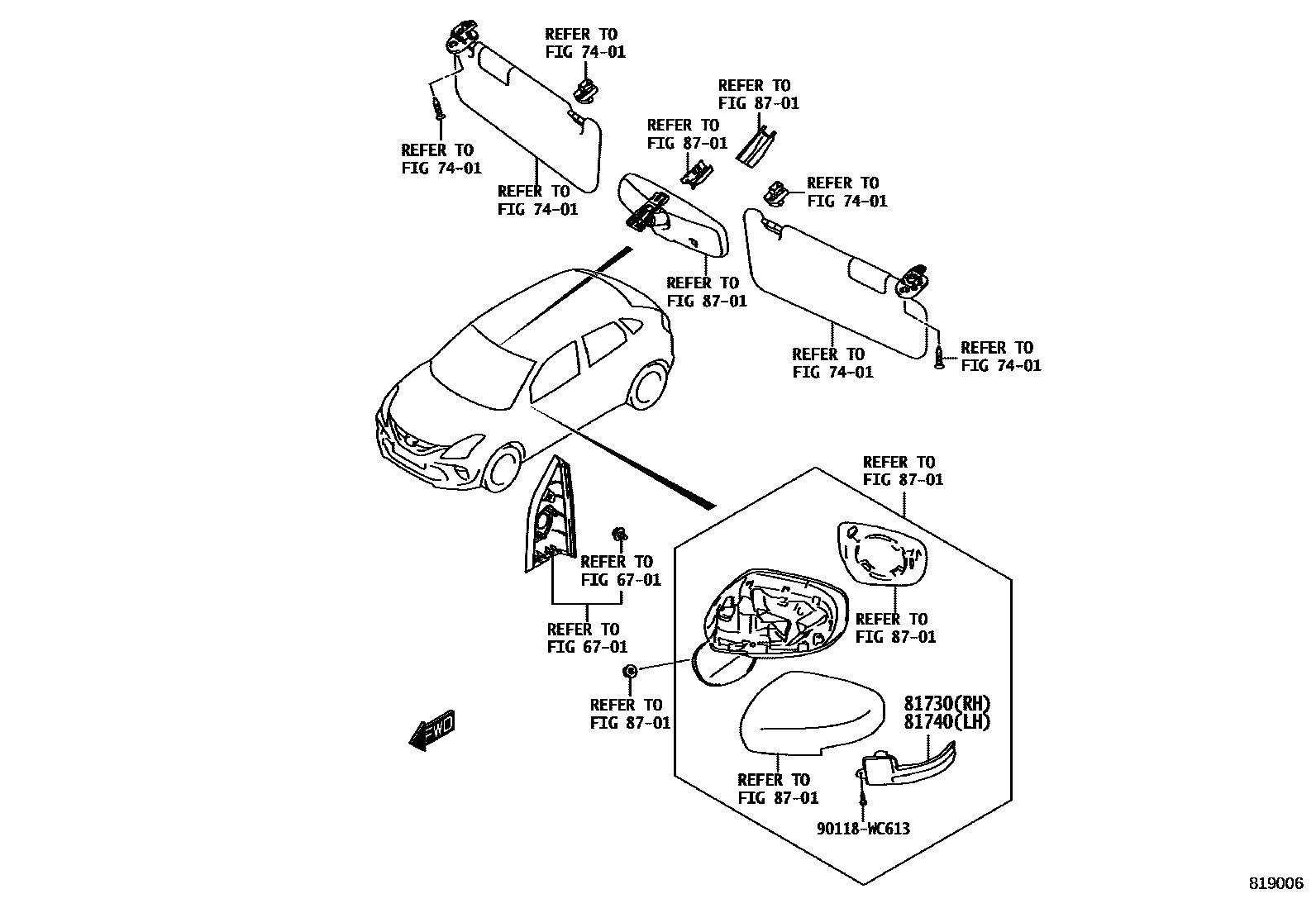

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

7401ARMREST & VISOR

→ Go to FIG 74-01

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

8701MIRROR

→ Go to FIG 87-01

90118WC613

main90118-WC613

6 parts on this diagram · 1 diagram in section
