REAR MOULDING

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

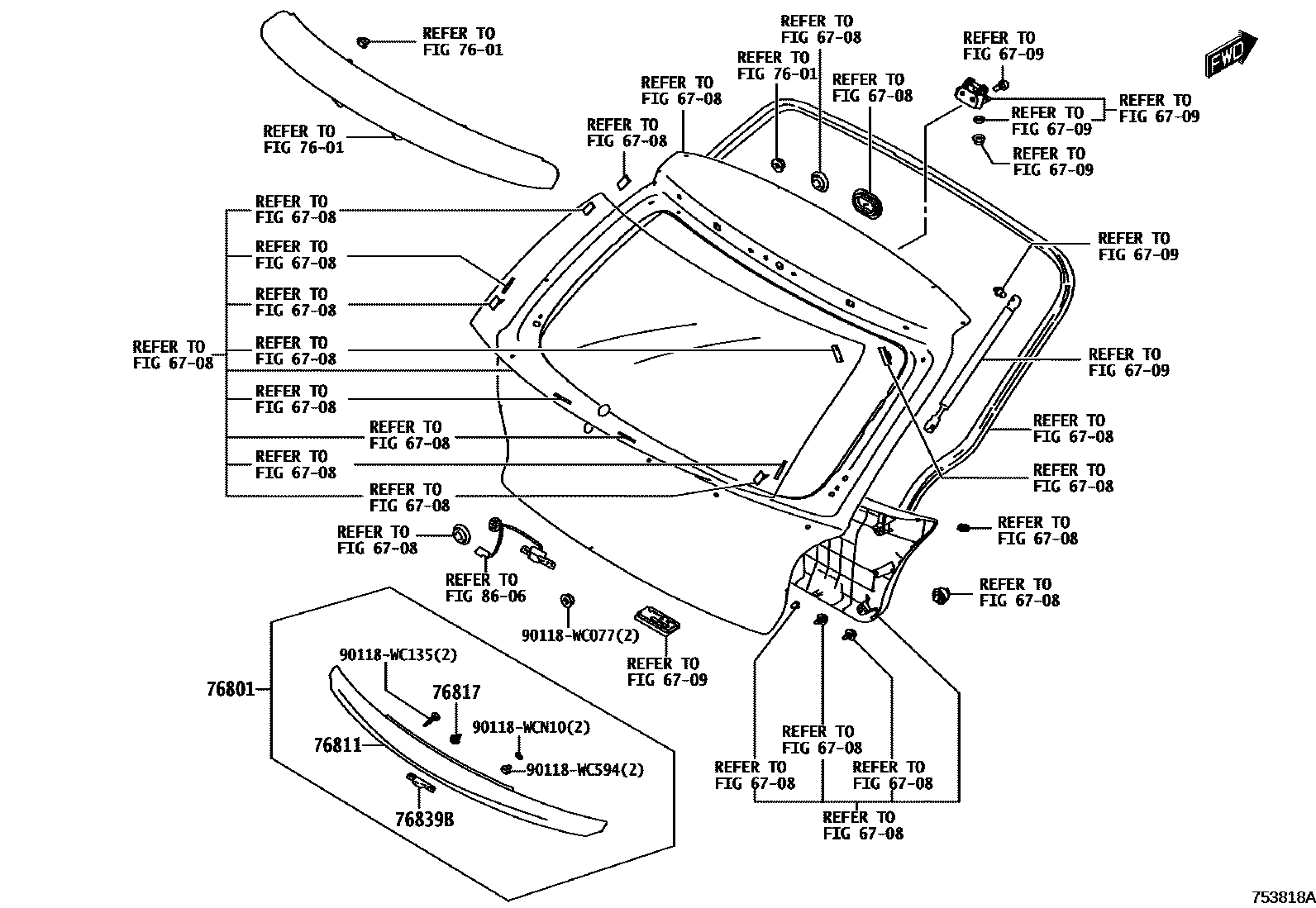

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-WC001iK12M..CVT..G; K12N201904

POS.1; POS.4

main76801-WC002iK12M..5F..V; K12M..CVT..V201904

POS.3; POS.5

76811GARNISH, BACK DOOR, OUTSIDE

main76825-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90118-WC564×3iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

76839BCOVER, BACK DOOR GARNISH

main76827-WC001iK12M..CVT..G; K12N201904

POS.1; POS.4

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

90118WC077

main90118-WC077

90118WC135

main90118-WC135

90118WC594

main90118-WC594

90118WCN10

main90118-WCN10

12 parts on this diagram · 1 diagram in section
