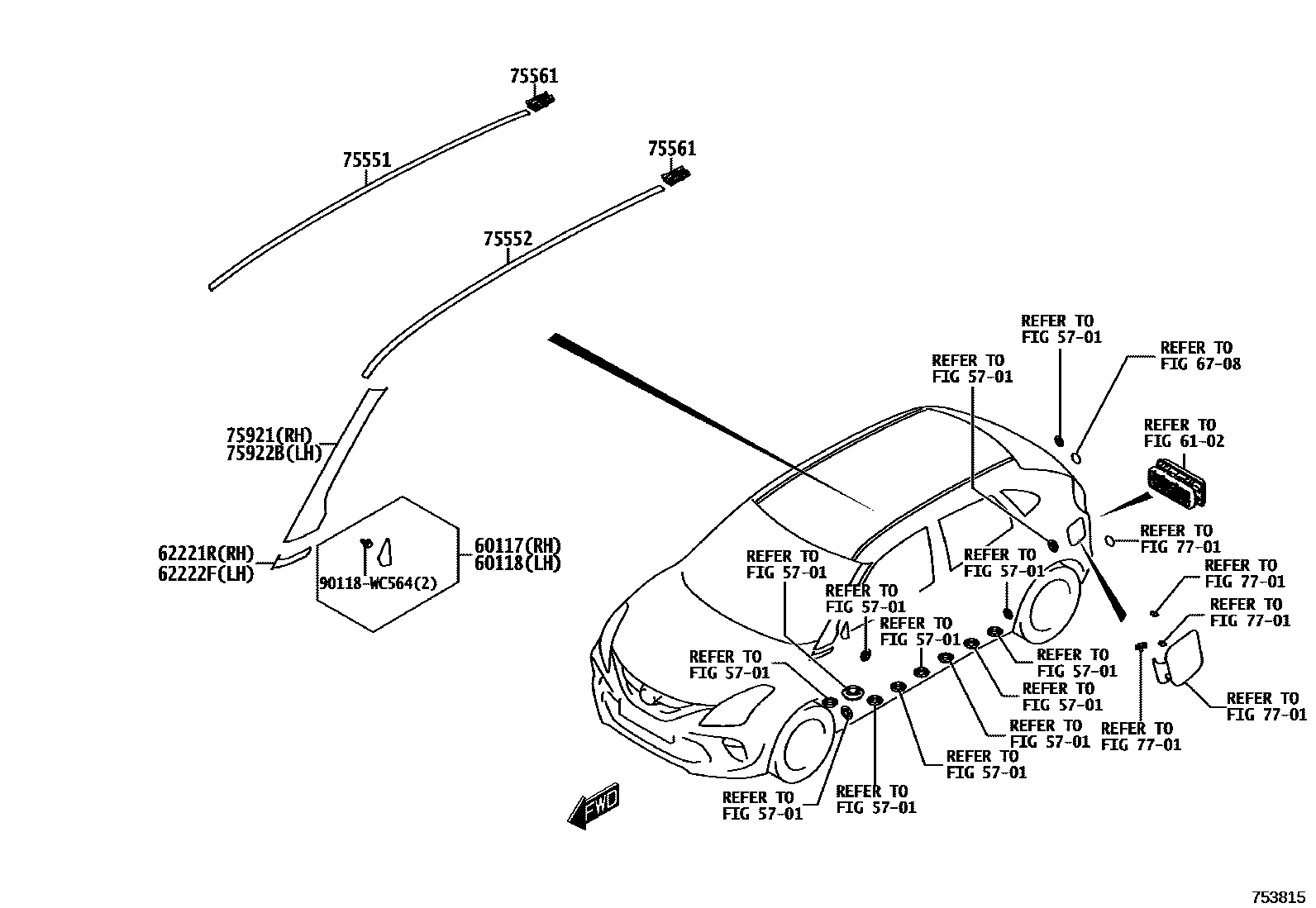

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1

5701HOLE PLUG

→ Go to FIG 57-01

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

6102ROOF SIDE VENTILATOR

→ Go to FIG 61-02

62221RMOLDING, FRONT PILLAR, LOWER RH

main62221-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62222FMOLDING, FRONT PILLAR, LOWER LH

main62222-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-WC001×14iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

75921TAPE, BLACK OUT, NO.1 RH

main75921-WC003iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

75922BTAPE, BLACK OUT, NO.1 LH

main75922-WC003iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90118WC564

main90118-WC564

14 parts on this diagram · 5 diagrams in section
